Lvds ips screen 15.6 inch 40 pin lcd

Item15.6 inch IPS TFT lcd display
Model NoDW1560B6Y1
Resolution1920*1080
Outline Dimension222.0*360.0*5.7
Active Area(mm)193.59*344.16
InterfaceLVDS
Viewing AngleALL
Driving ICILI6145A
Display ModeNormally Black
Operating Temperature0℃~70℃
Storage Temperature-10℃~70℃
Brightness1000nits
Touch screenCan custom capacitive touch and resistive touch
BoardHDMI board

For product pricing,customization,or other inquiries:

Share to:

15.6 inch 1920×1080 resolution eDP/lLVDS interface high brightness lcd display

1. DW1560B6Y1 mainly application for  Industrial  device .
2. It with IPS all viewing angle , 30 pins LVDS interface and ILI6145A driver IC , wide work temperature , high color gamut.
3. It with 1920×1080 High resolution, eDP and LVDS interface available, 250/600/1000nits high brightness, with great display effect and supports sunlight readable /outdoor device,existing HDMI board to to support Raspberry PI.
4. It also can custom touch panel as customer ‘s requirement .
5. It is A grade product , the good quality well use for Industrial ,medical application .

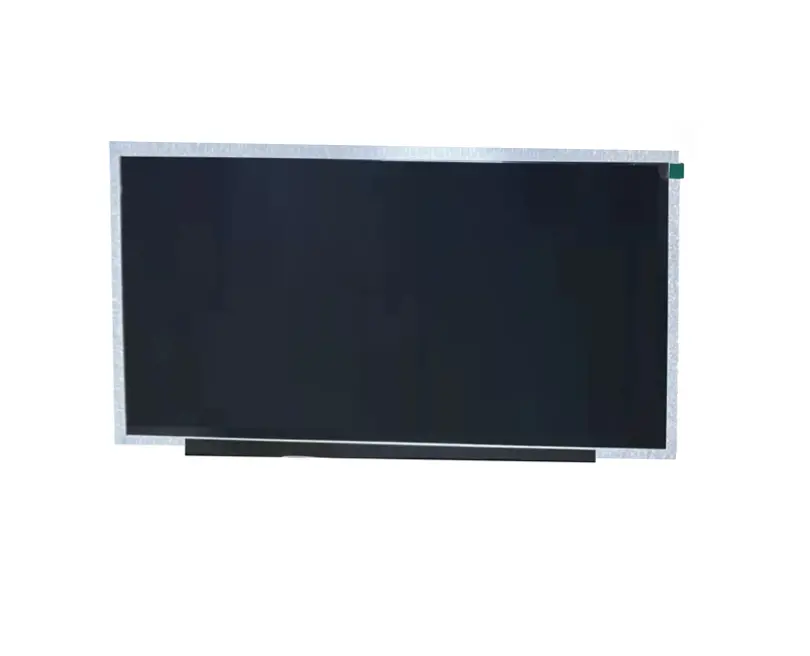

15.6 inch IPS TFT lcd display Front View

lcd screen 15.6

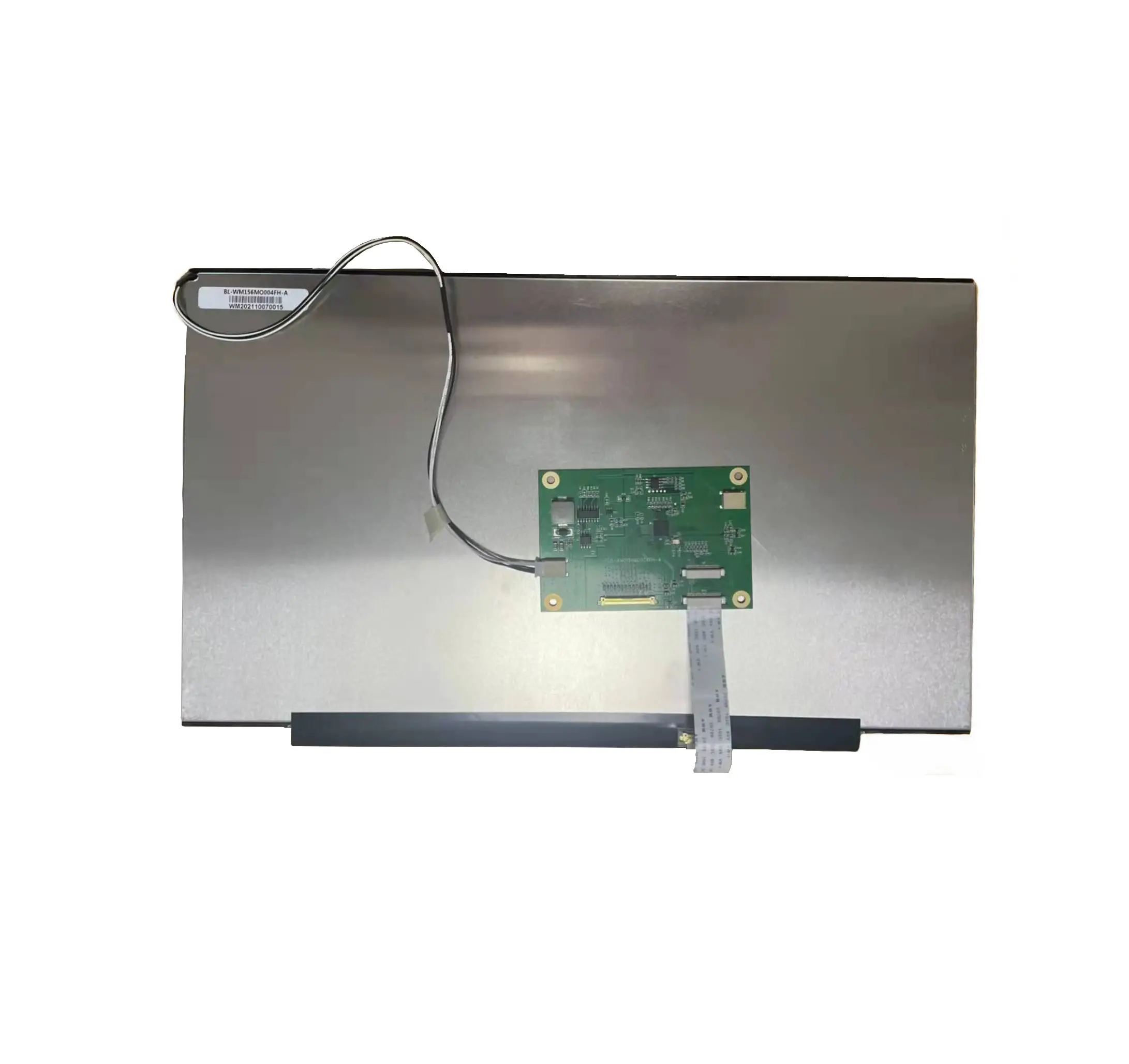

15.6 inch IPS TFT lcd display Back View

lcd screen 15.6
