Ips ST7735S 0.96 inch amoled touchscreen lcd screen

Item0.96 inch small AMOLED display
Model NoPV096000AR13A
Resolution80*160
Outline Dimension13.5*27.95*1.5
Active Area(mm)10.8*21.7
Brightness300nits
Viewing Angle4 Line SPI
Driving ICST7735S
Operating Temperature-20 to +70℃
Storage Temperature-30 to +80℃
Touch screenCan customer capacitive touch

For product pricing,customization,or other inquiries:

Share to:



0.96 inch small TFT LCD display



0.96 inch 80×160 resolution IPS SPI transmissive display
PV096000AR13A mainly application instruments and equipment,  Medical devices,
It with IPS full viewing angle ,ST7735S driver IC, 4 Line SPIinterface, 300nits brightness small / Tiny display .
And it can custom touch panel as customer ‘s requirement .
This model is transmissive ,  it can be well used for both indoor and outdoor .

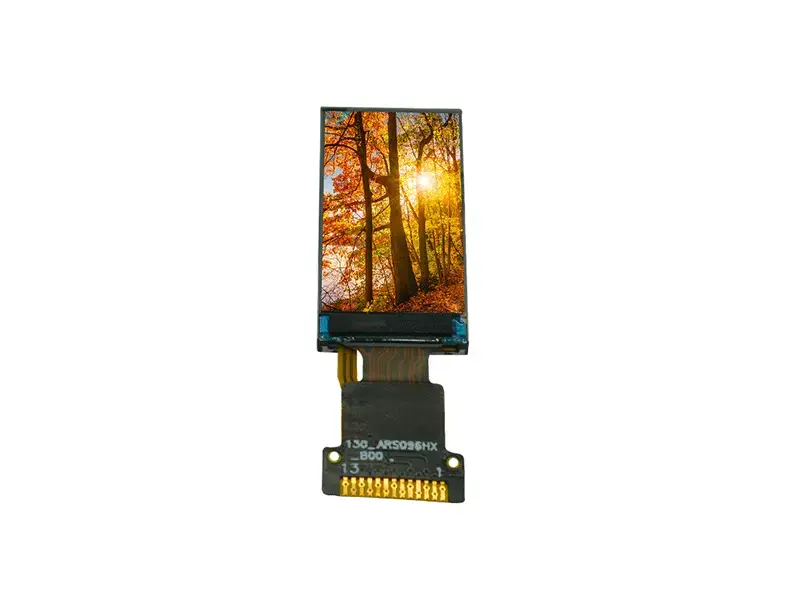

0.96 inch IPS Tiny TFT LCD display

0.96-PV096000AR13A



0.96 inch IPS Tiny TFT LCD display back view

0.96-PV096000AR13A

New Tab content 3

0.96-PV096000AR13A
