1.74inch 240*180 resolution TFT LCD display

Item1.74 inch 240×180 SPI interface square LCD display

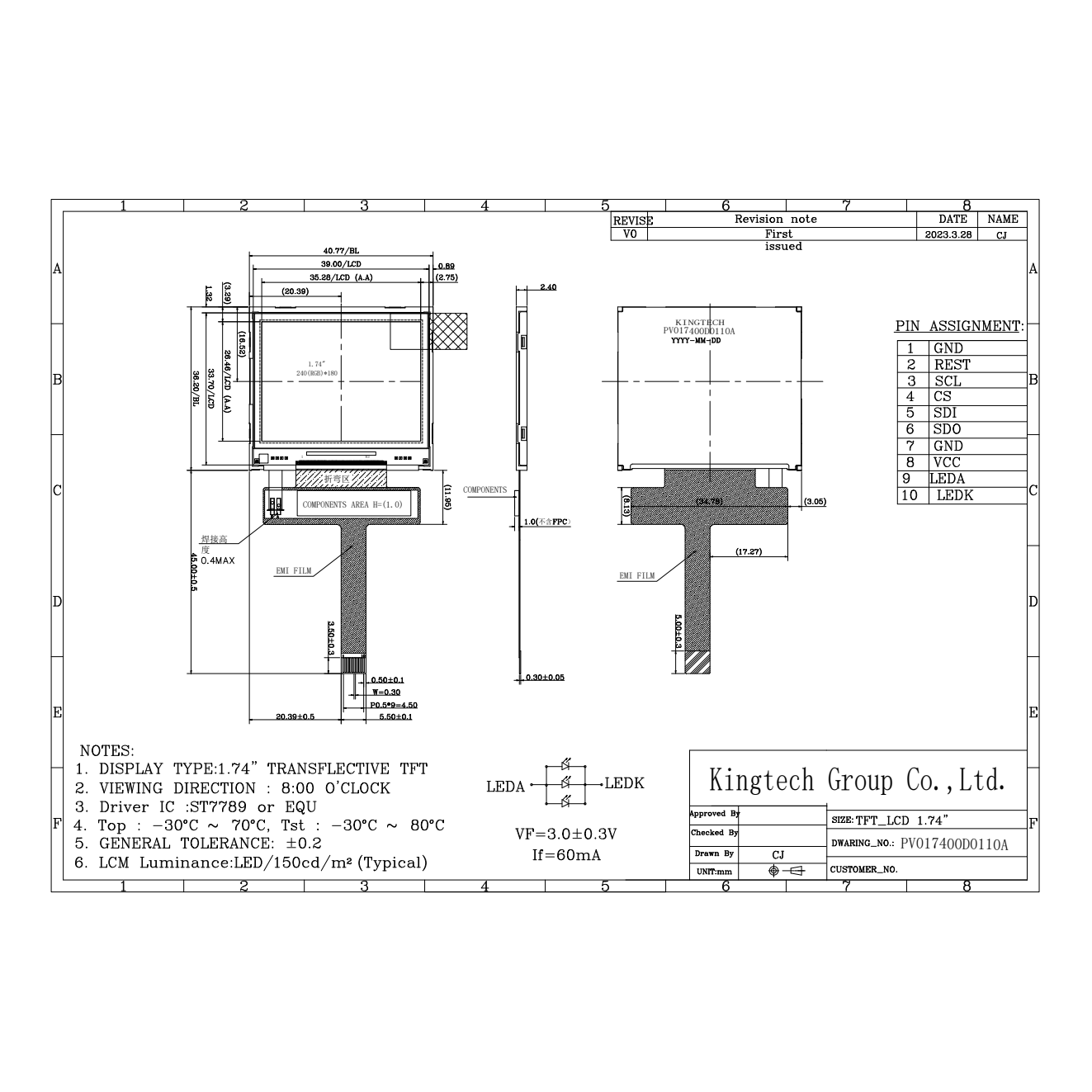

Model No.PV017400D0110A
Resolution240*180
Outline Dimension (mm)40.77*36.20*2.4
Active Area (mm)35.28*26.46
Viewing Angle8 O’clock
Brightness150nits
InterfaceSPI
Backlight1*3LED
Driving ICST7789
PIN No.10
Operating Temperature-30~70C
Storage Temperature-30~80C
Touch screenCan custom resistive and capacitive touch screen
ApplicationMedical, hand-held device, industrial, smart watch

For product pricing,customization,or other inquiries:

Share to:

  1. TFT LCD display
  2. 240×180
  3. Stable supply
  4. 8 O’clock viewing angle
  5. SPI interface
  6. Square display
  7. Can custom resistive touch and capacitive touch
  8. Medical, hand-held device, industrial, smart watch
