Item | 1.8inch 128×160 TFT LCD module |
Model No | PV017703TD12C |
Resolution | 128×160 |
Outline Dimension | 34(W)x44(H)x2.4(T) |
Active Area(mm) | 28.03(W)x35.04(H) |
Interface | SPI |
Viewing Angle | 6 O’clock |
Driving IC | ST7735S |
Display Mode | TFT/TRANSMISSIVE |
Operating Temperature | -20 to +70℃ |
Storage Temperature | -30 to +80℃ |
Brightness | 250nits |
Touch screen | Resistive and capacitive touch screen |
1.77 inch 128×160 SPI interface small TFT display
1. PV017703TD12C mainlyapplication for Medical devices, handheld devices .
2. It with SPI interface, 250nits brightness , ST7735S driver IC, TN/ 6 O’clock viewing angle. Interface and brightness can be custom made
3. And it can custom capacitive or resistive touch panel as customer ‘s requirement
4. It is A grade product , the good quality well use for handheld device.

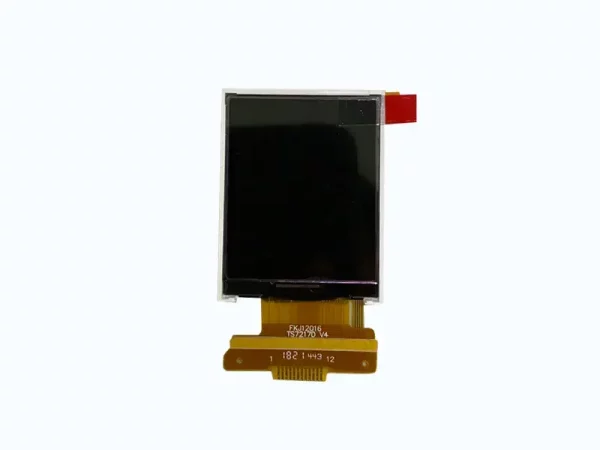

1.77 inch 128×160 small LCD display front view

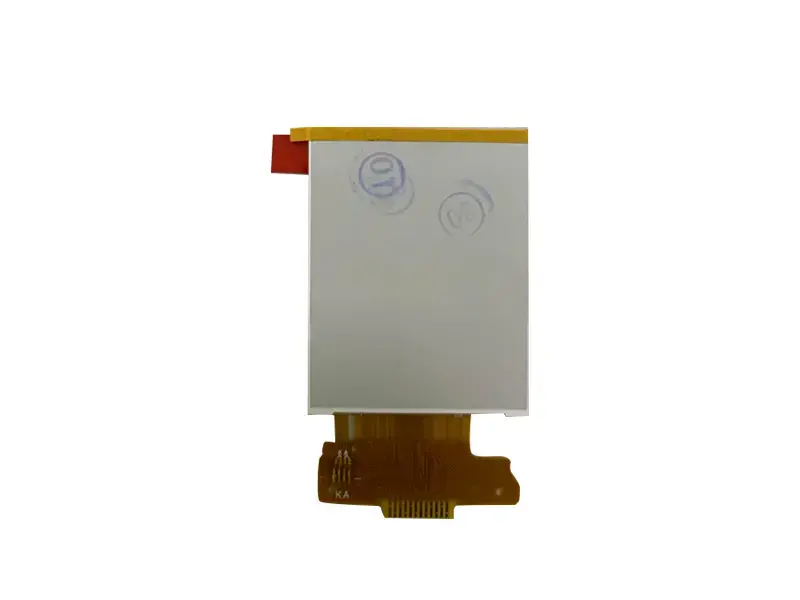

1.77 inch 128×160 small LCD display back view

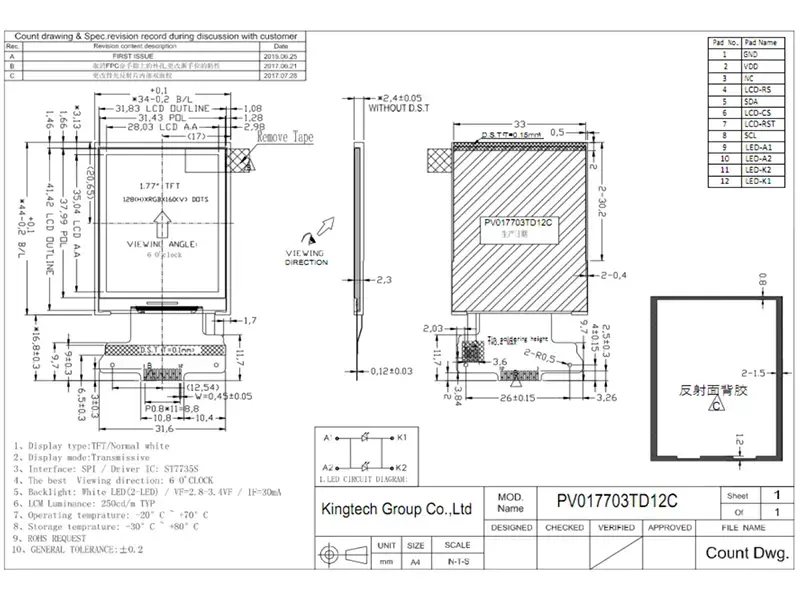

1.77 inch SPI interface LCD display Machine Drawing
