Lvds 1024×600 30pin 10.1″ wsvga tft lcd display

Item10.1 inch 1024*600 TFT LCD display
Model NoPV101028SL30W
Resolution1024*600
Outline Dimension234.9(W)x145.8(H)x5.5(max)(D)  MM
Active Area(mm)222.72 (W)x125.28 (H) mm mm
InterfaceDigital (6bit LVDS)
Viewing Angle12 O’clock
Display ModeTFT/TRANSMISSIVE
Operating Temperature-20 to +70℃
Storage Temperature-30 to +80℃
Brightness200Cd/m2
Touch screenResistive and capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

10.1 inch 1024×600 Digital 6 bits LVDS interface lcd display .
1.PV101028SL30W mainly application for industrial device.
2.It with Digital (6bit LVDS) interface , 1024×600 resolution , LVDS interface , is Normally White model .
3.And it can custom the capacitive resistive touch panel  as customer ‘s requirement .
4.It is the A grade product , with good quality for the industrial application

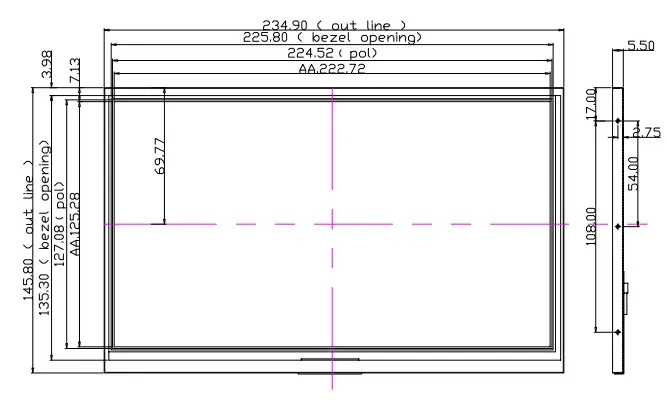

10.1 inch 1024*600 TFT LCD display Front View :



10.1 inch 1024*600 TFT LCD display

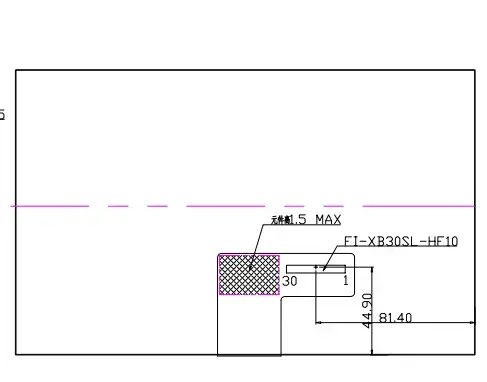

10.1 inch 1024*600 TFT LCD display Back View :

10.1 inch 1024*600 TFT LCD display

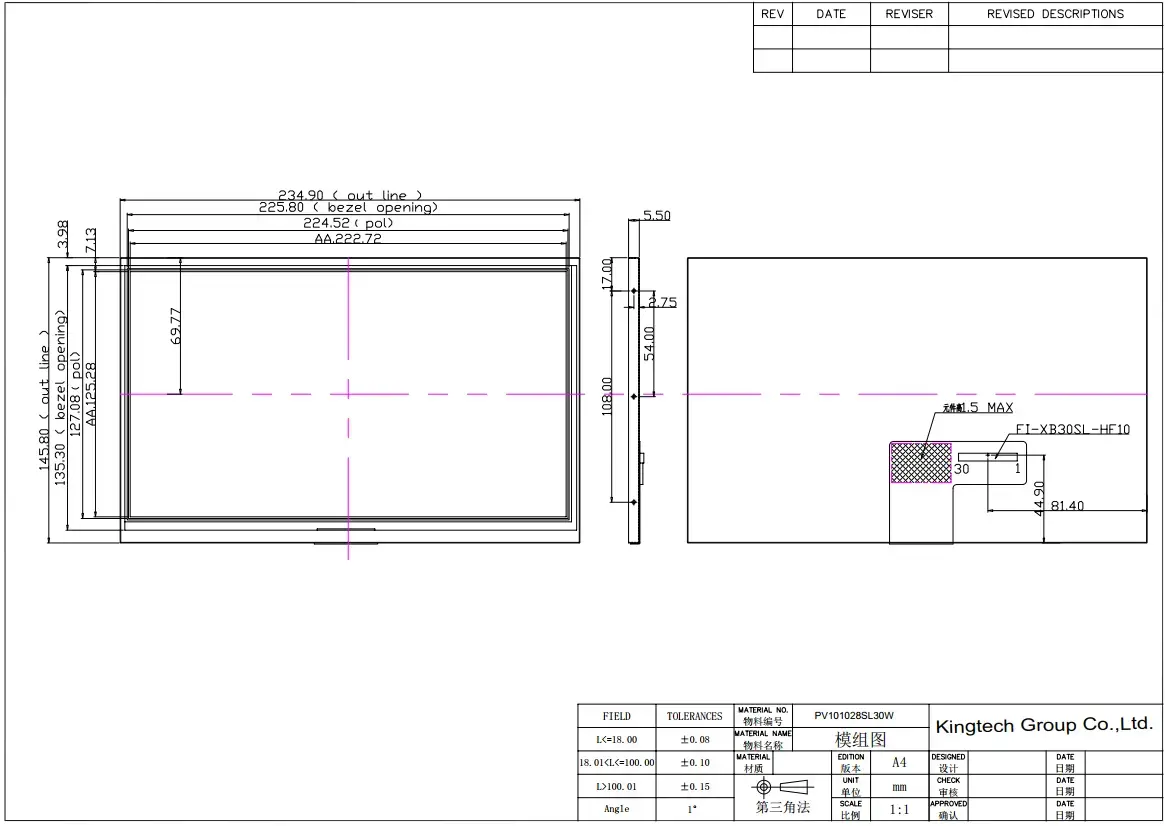

10.1 inch 1024*600 TFT LCD display Machine Drawing :

10.1 inch 1024*600 TFT LCD display
