10.1 inch LVDS 1280×800 ips color lcd module display

Item 10.1inch 1280×800 TFT module display
Model NoPV101026LZR40U
Resolution 1280*800

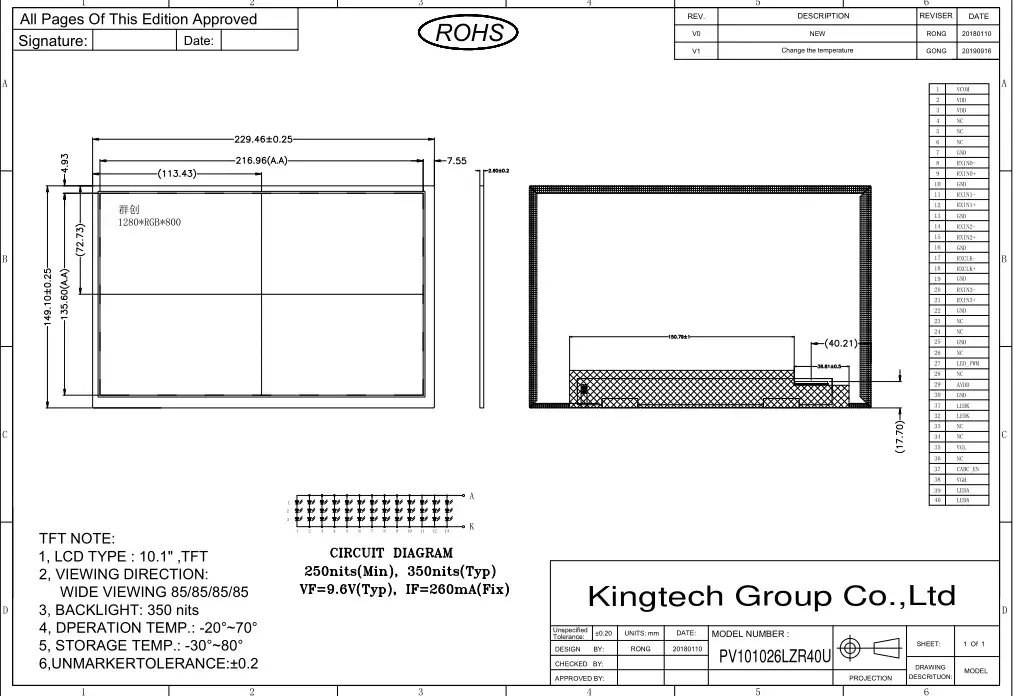

Outline Dimension 229.46(W)*149.10(H)*2.6(T)
Active Area(mm)216.96(W)*135.60(H)
Interface LVDS
Viewing Angleall
Display Mode TFT/TRANSMISSIVE
Operating Temperature -20 to +70℃
Storage Temperature -30 to +80℃
Touch screenResistive and capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

10.1 inch 1280×800 LVDS infterface IPS lcd display
1.PV101026LZR40U mainly application for industrial device .
2.It with 1280×800 resolution , LVDS interface , full viewing angle , ILI2511 driver IC
3.And it can custom the capacitive resistive touch panel  as customer ‘s requirement .
4.It is the A grade product , with good quality for the industrial application

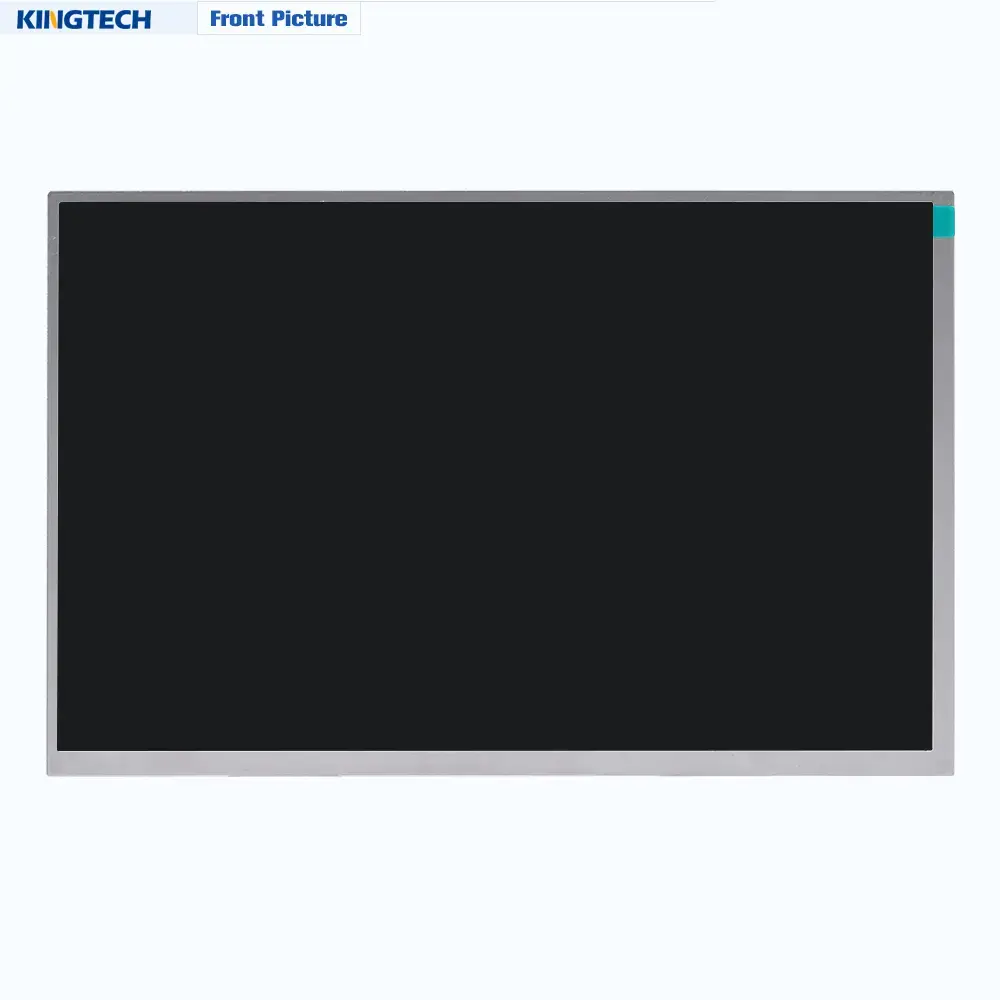

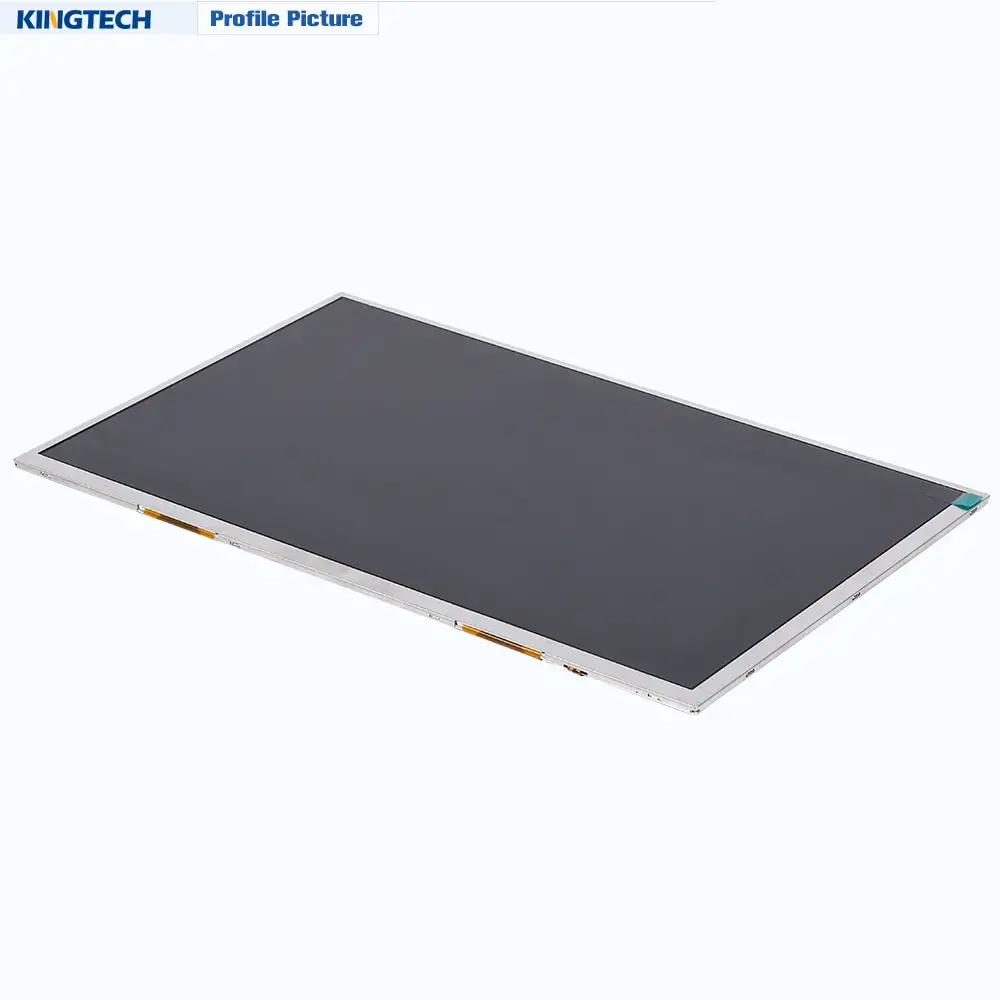

10.1inch 1280×800 TFT module display Front View :

10.1inch 1280x800 TFT module display



10.1inch 1280x800 TFT module display

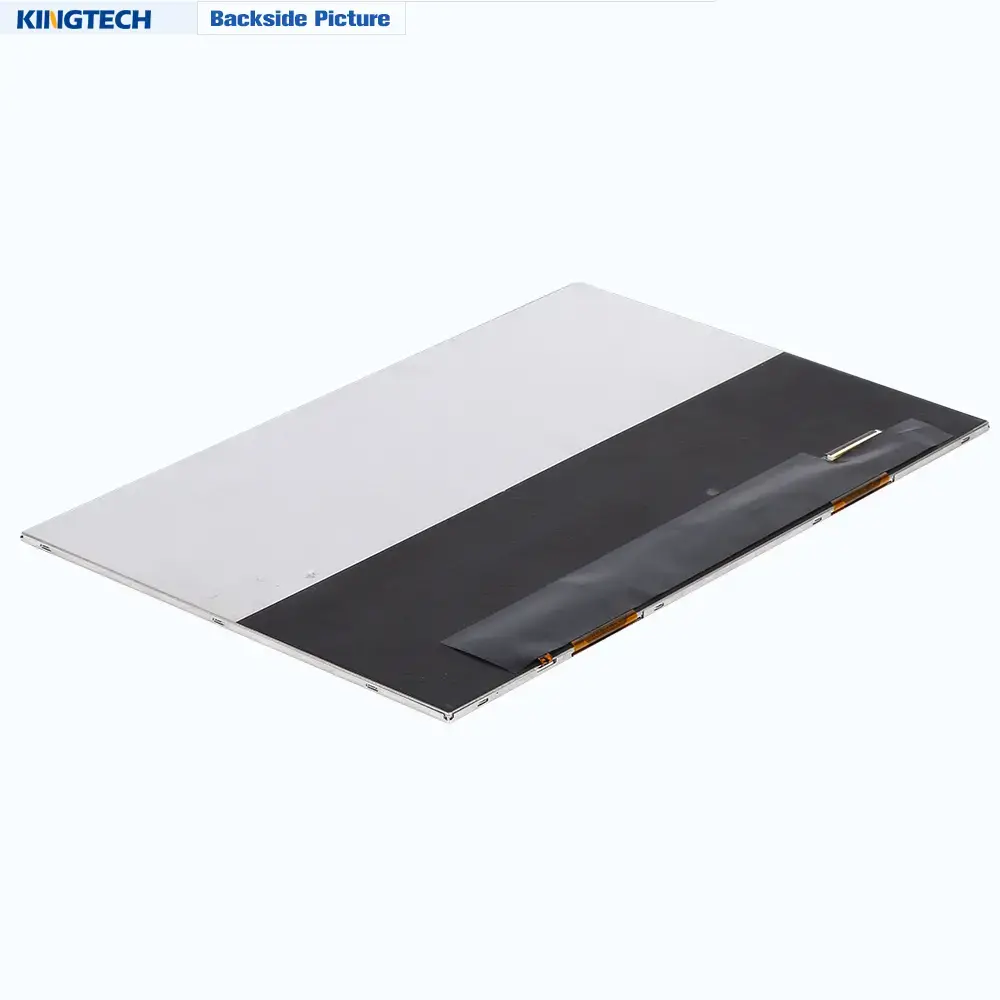

10.1inch 1280×800 TFT module display Back View :

10.1inch 1280x800 TFT module display
