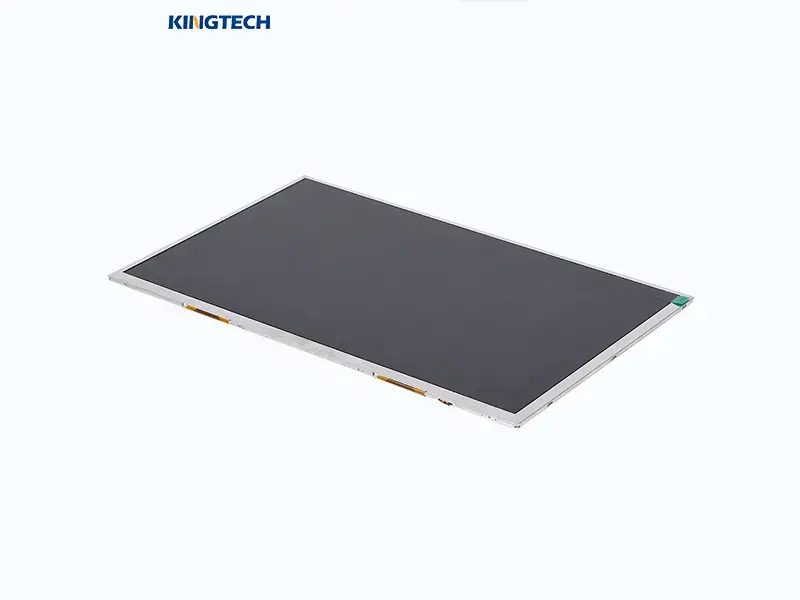

Transmissive 31 PIN 1280*800 10.1 inch tft lcd module

Item 10.1 inch 1280×800 lcd display
Model NoPV101010LZR40H
Resolution 1280 x 800
Outline Dimension 229.80(W) x 149.00(H) x 5.95(T)
Active Area(mm)216.96(W) x 135.60(H)
Interface 8-BIT LVDS Interface
Viewing AngleAll
LED life50000h
Display Mode Transmissive / Normally Black
Operating Temperature -30℃ to +80℃
Storage Temperature -30℃ to +80℃
Brightness500nits – 1000nits
Touch screenI2C / USB capacitive touch screen
BoardHDMI board

For product pricing,customization,or other inquiries:

Share to:

10.1 inch 1280×800 wide temperature 1000nits LVDS  IPS LCD display

1. PV101010LZR40H mainly application for industrial device .
2. It with 1280×800 resolution high definition , LVDS interface , IPS full viewing angle , 1000nits high brightness , -30℃~80℃wide work temperature, it with existing capacitive touch panel .
3. And it can custom the capacitive resistive touch panel  as customer ‘s requirement .
4. It is sunlight readable , it can be well used for both indoor and outdoor .

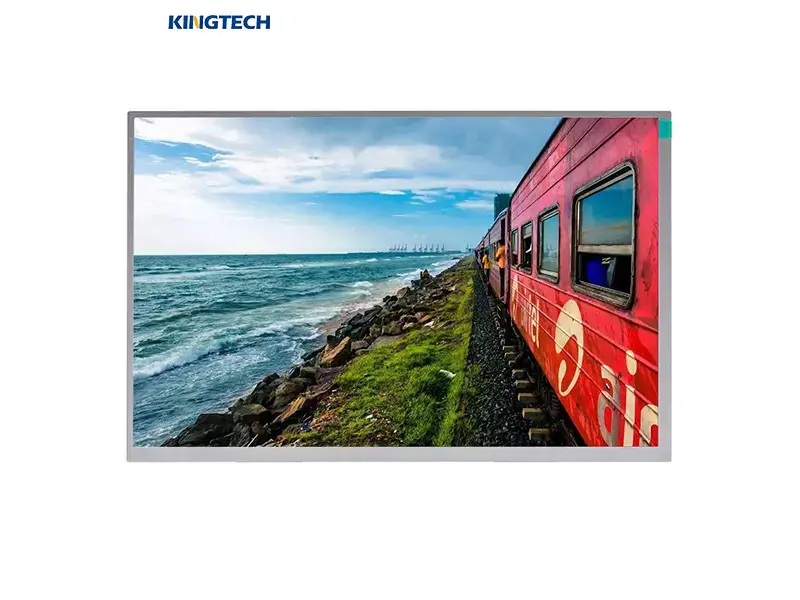

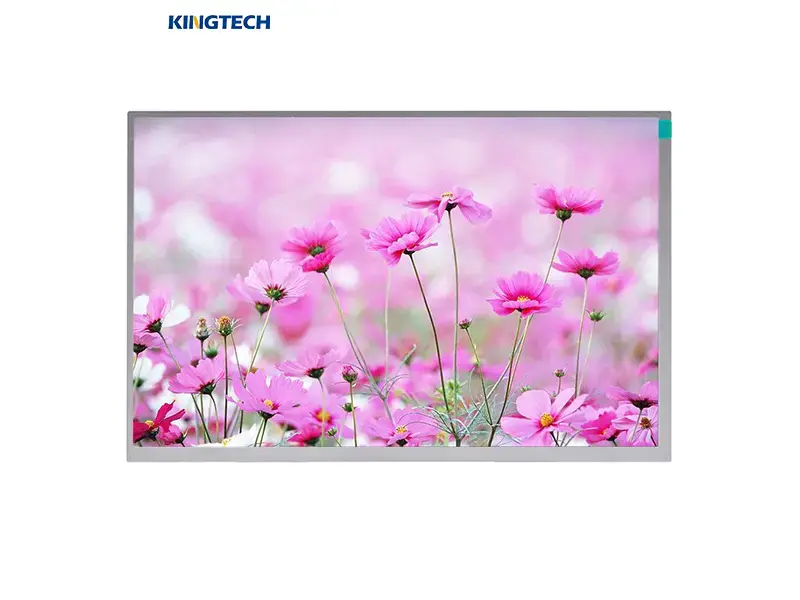

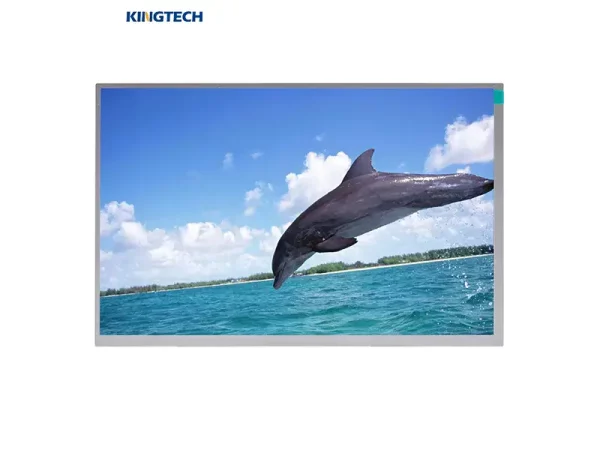

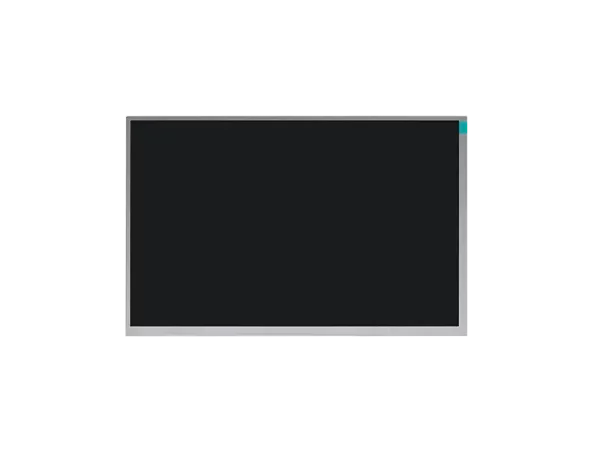

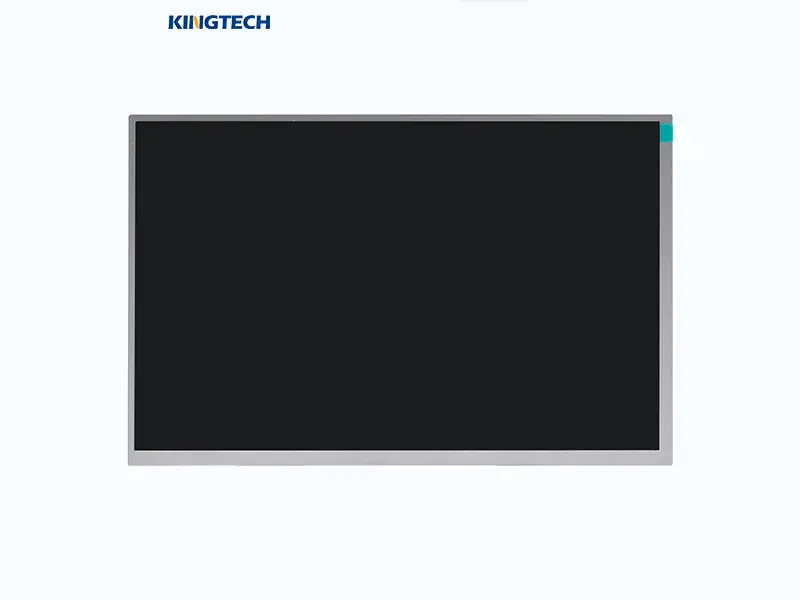

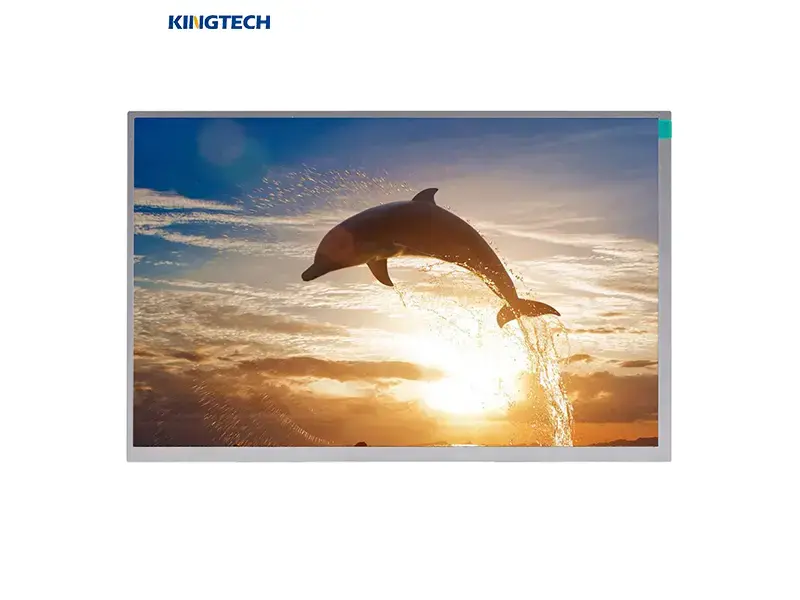

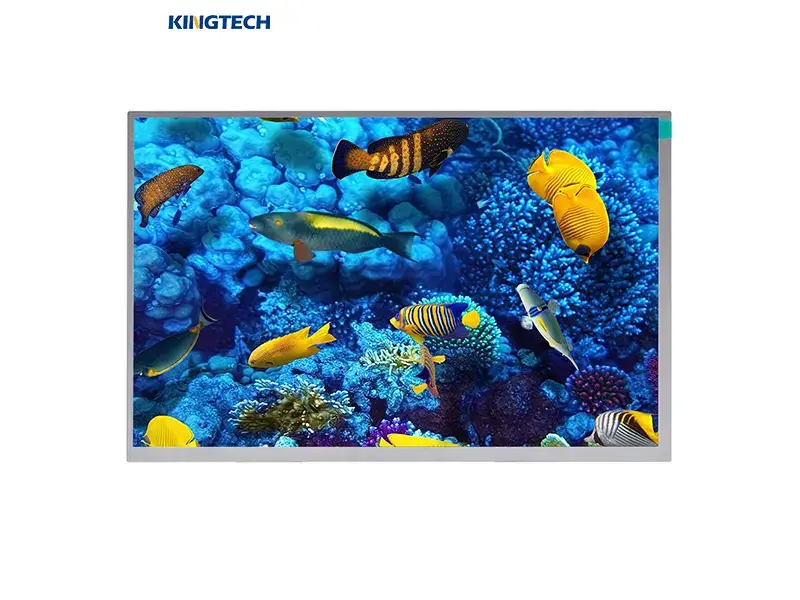

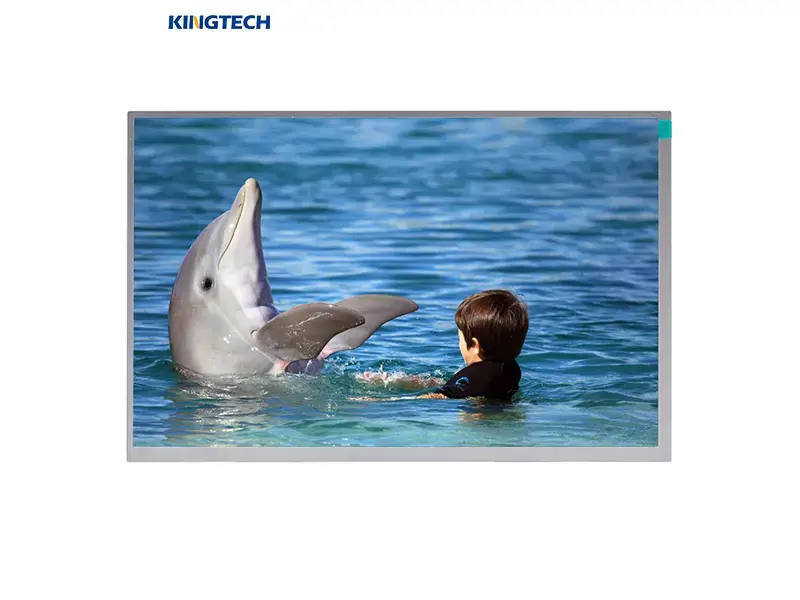

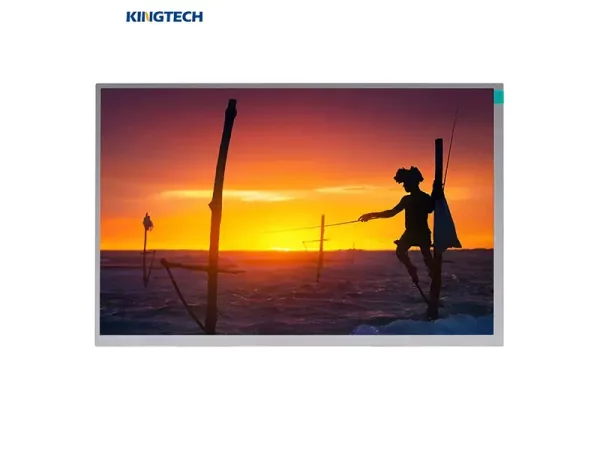

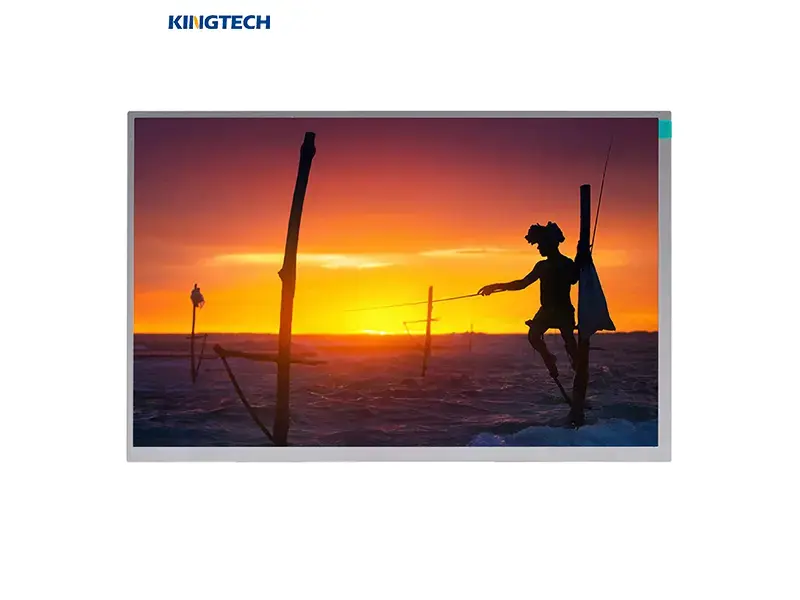

10.1 inch 1280×800 IPS LCD display front view

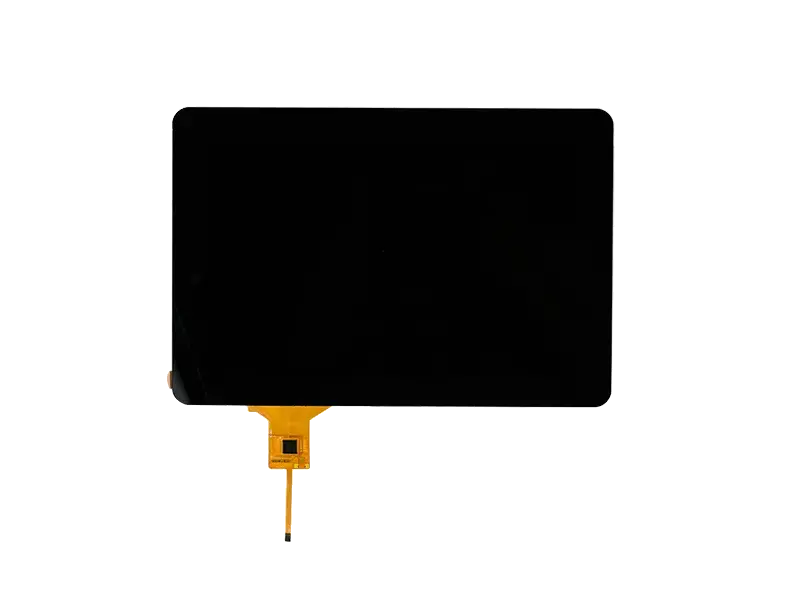

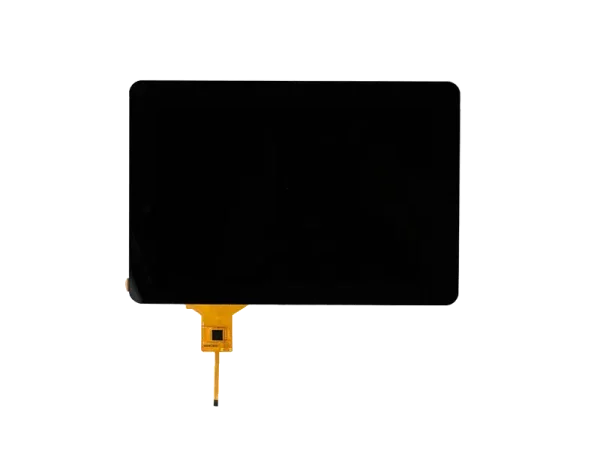

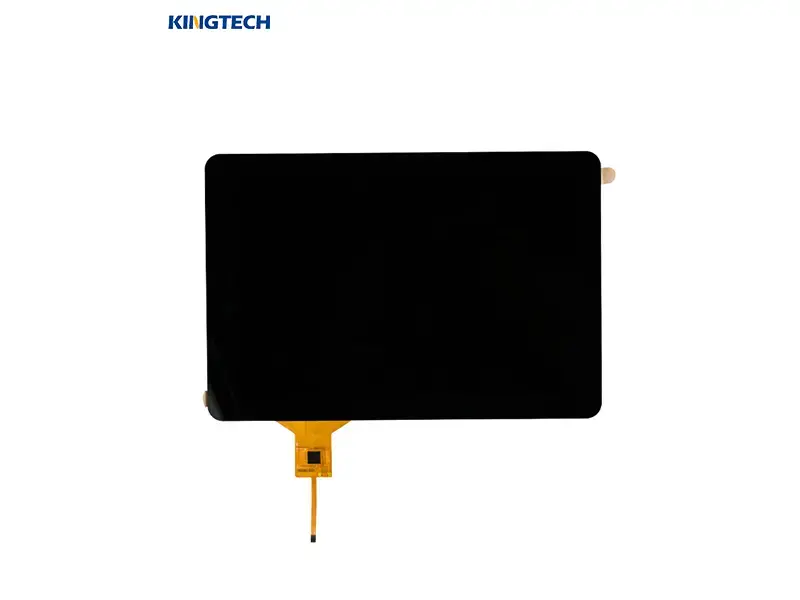

10.1 inch touch panel

10.1 inch touch panel

10.1 inch touch panel

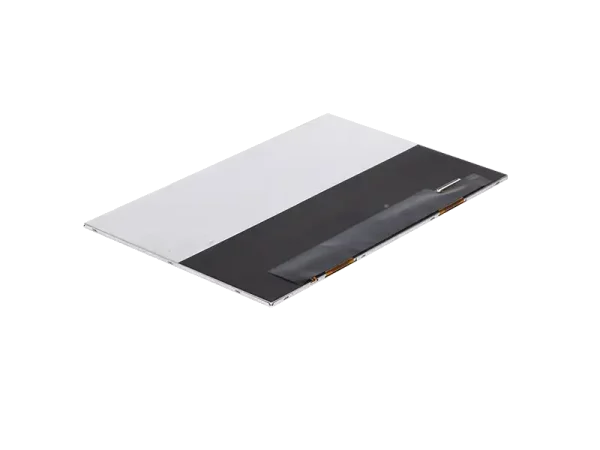

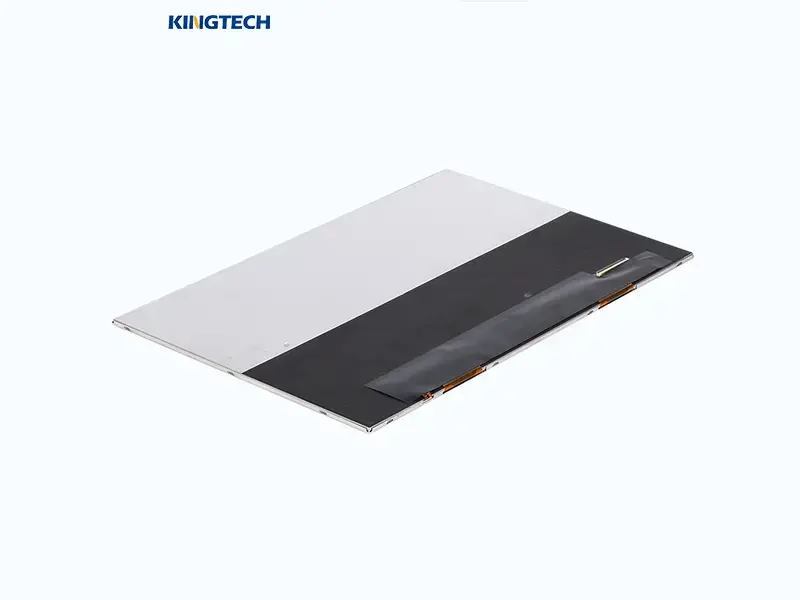

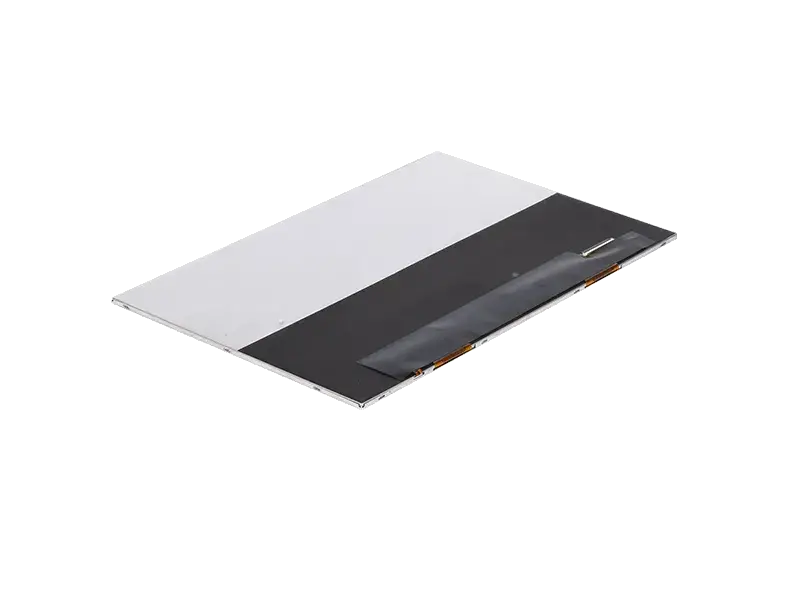

10.1 inch 1280×800 IPS LCD display back view

10.1 inch touch panel

10.1 inch 1280×800 IPS LCD display with HDMI board

10.1-PV10107LZR40E

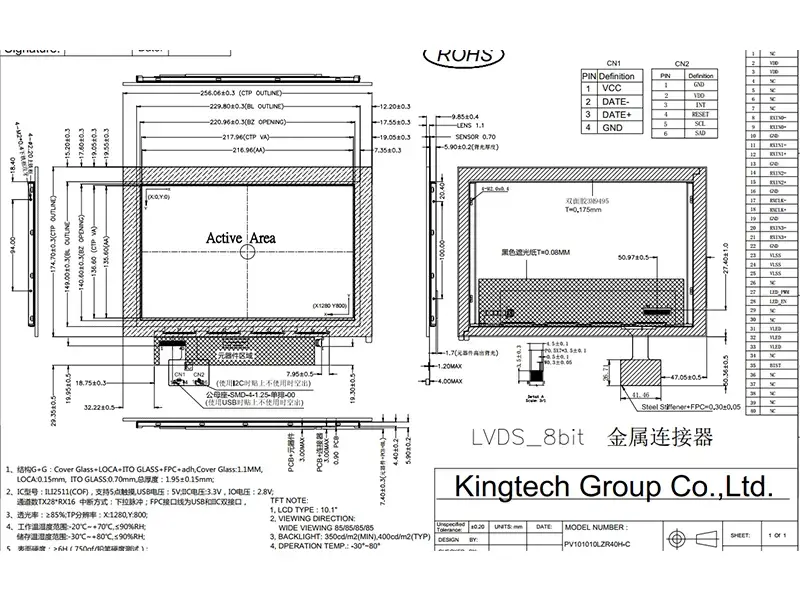

10.1 inch 1280×800 IPS LCD display Machine Drawing

10.1 inch touch screen - 10.1-PV101010LZR40H
