Item | 10.4 inch 1024×768 IPS LCD display |
Model No | PV104004YH30E |
Resolution | 1024×768 |

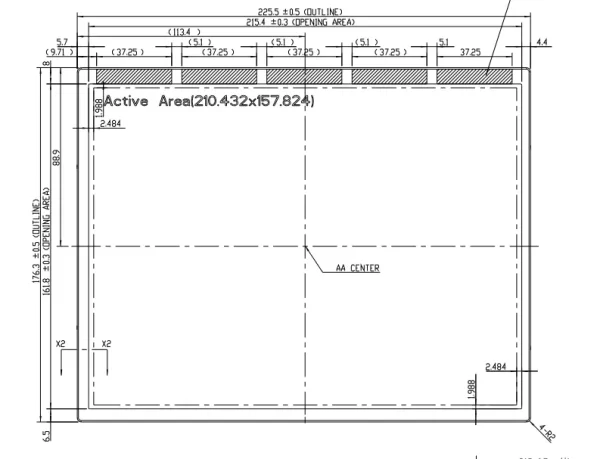

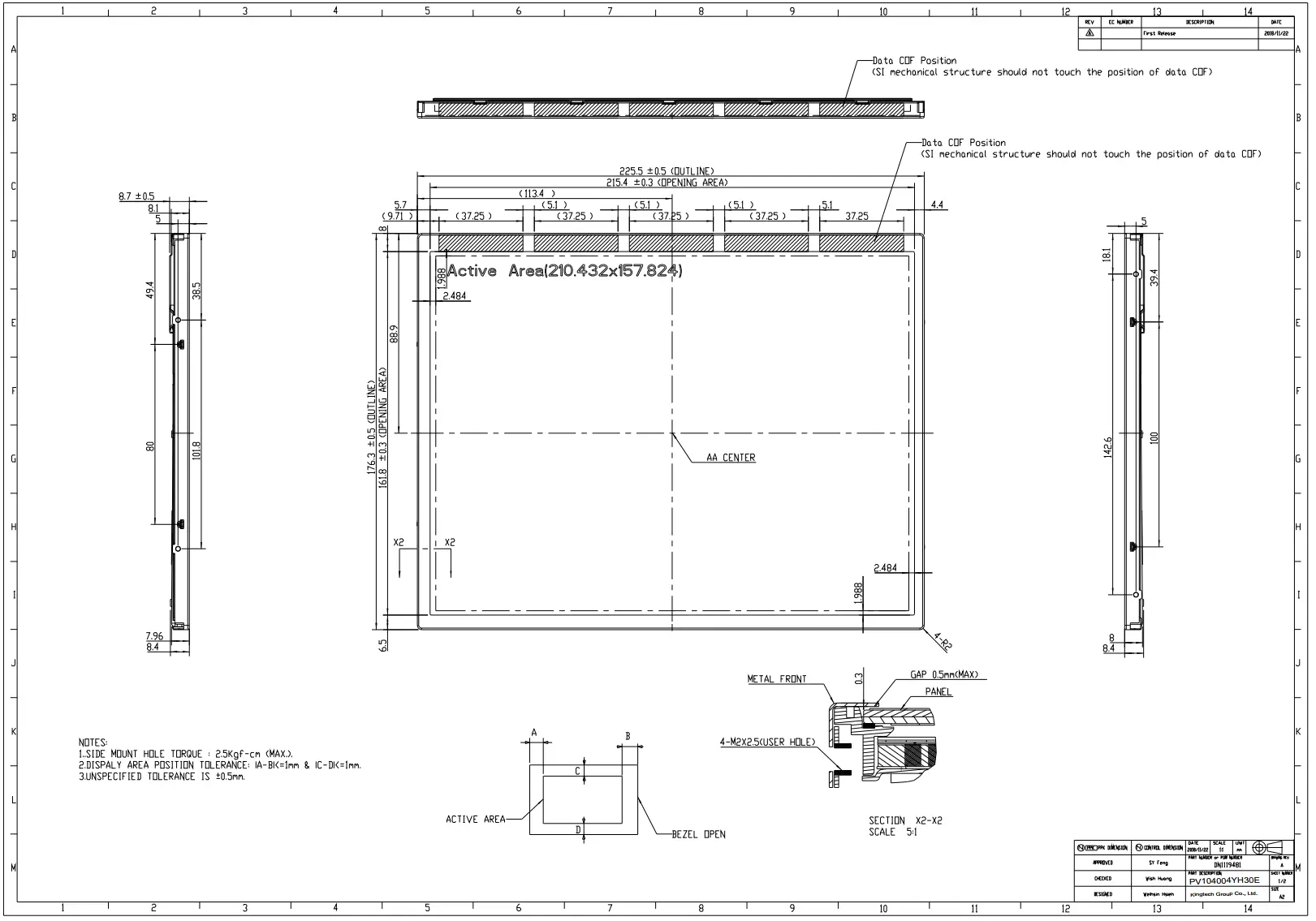

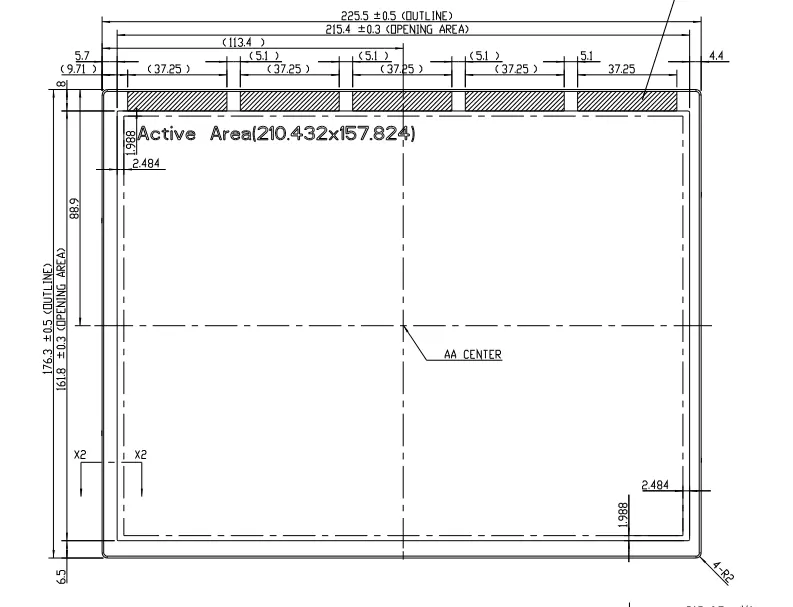

Outline Dimension | 225.5*176.3*8.7 |
Active Area(mm) | 210.4*157.8 |

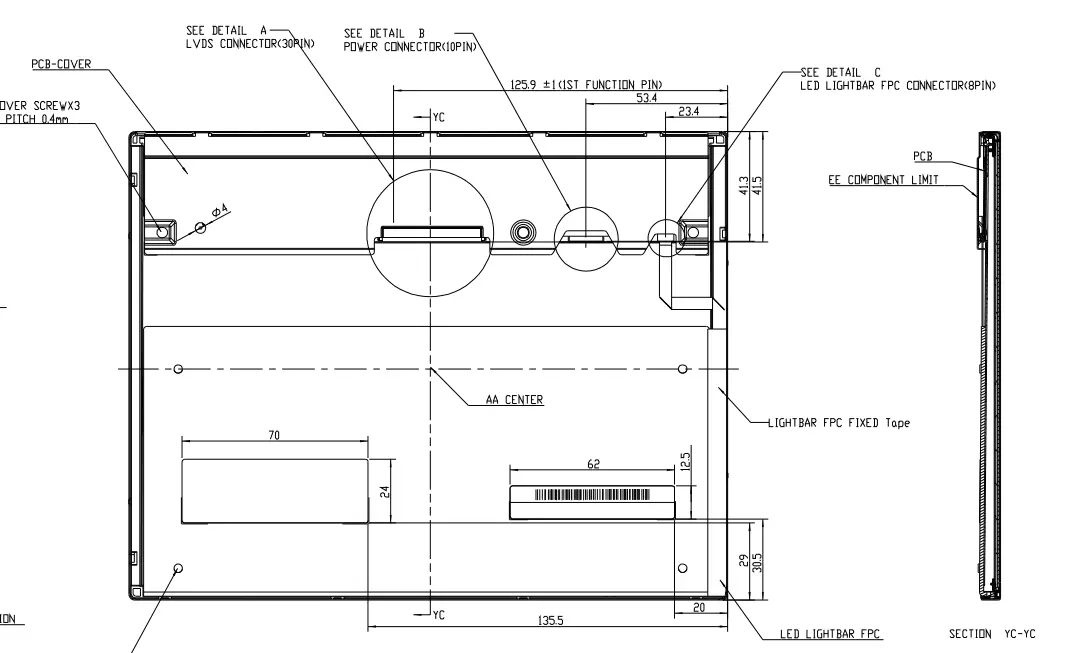

Interface | LVDS |
Viewing Angle | All |
Display Mode | Transmissive / Normally Black |
Operating Temperature | -30℃ to +80℃ |
Storage Temperature | -30℃ to +80℃ |
Brightness | 500nits |
Touch screen | I2C / USB capacitive touch screen |
Board | HDMI board |
10.4 inch 1024×768 wide temperature LVDS IPS lcd display
PV104004YH30E mainly application for Industrial medical equipment.
It with 1024×768 resolution , LVDS interface , IPS full viewing angle , 500nits high brightness , -30℃~85℃wide work temperature, it with existing capacitive touch panel and HDMI board to support Raspberry PI .
And it can custom the capacitive resistive touch panel as customer ‘s requirement .
It is wide work temperature, it can be well used for both indoor and outdoor.
