40 pin stretched bar lcd display 10.4 inch

Item10.4 inch IPS bar type lcd display
Model NoPV104003LZR40D
Resolution1024×3 (RGB)×100 dots
Outline Dimension274.92(W)×41.5(H)×3.5(T)
Active Area(mm)264.192(W)×25.8(H)
InterfaceTTL
Viewing AngleAll
LED life50000h
Driving ICHX8282A+HX8678A
Display ModeTransmission / Normally Black
Operating Temperature-10℃~60℃
Storage Temperature-20℃~70℃
Brightness950nits
BoardHDMI board

For product pricing,customization,or other inquiries:

Share to:

10.4 inch 1024×100 IPS 950nit high brightness bar type LCD display

1. PV104003LZR40D mainly application for outdoor device ,Industrial ,medical equipment .
2. It is IPS free viewing angel , 1024×100 resolution , 950nit high brightness ,TTL/RGB interface, existing HDMI board to support Raspberry PI.
3. It also can custom capacitive touch or resistIve touch panel as customer ‘s requirement.
4. It is A grade product , the good quality well use for Industrial ,medical application. It is sunlight readable can be well used for both indoor and outdoor .

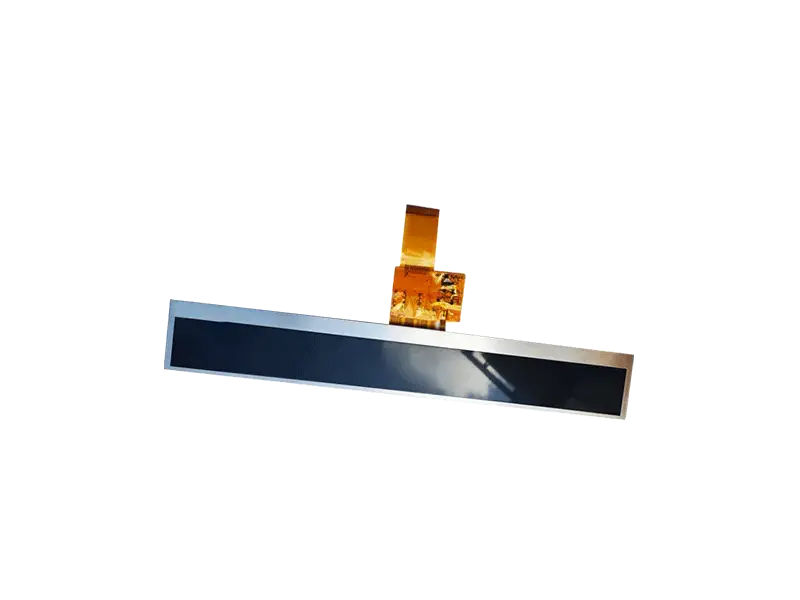

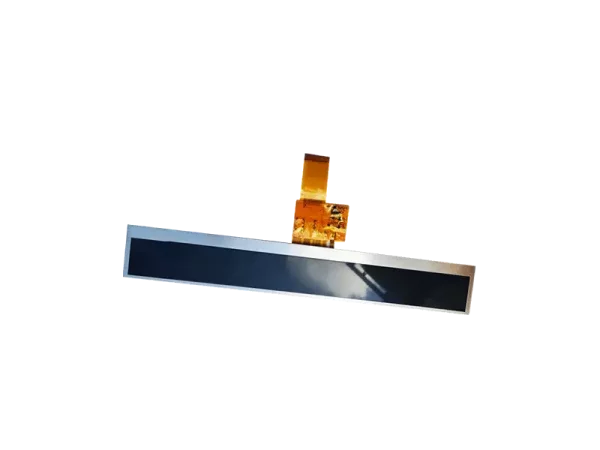

10.4 inch 1024×100 Bar LCD display front view

 10.4 inch touch screen

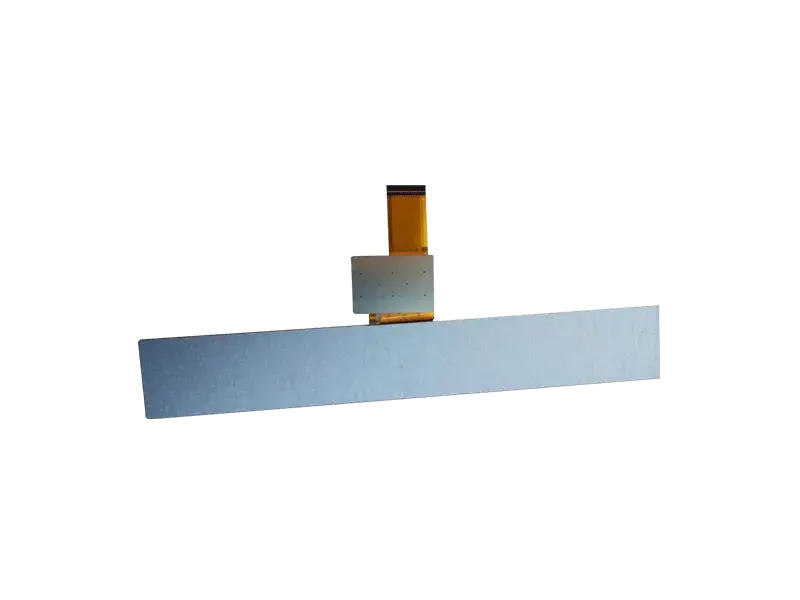

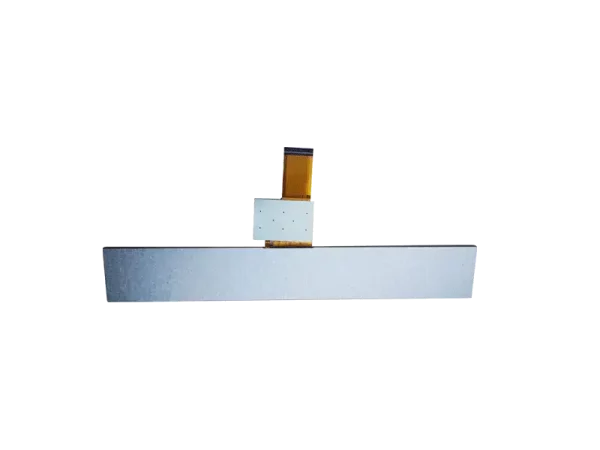

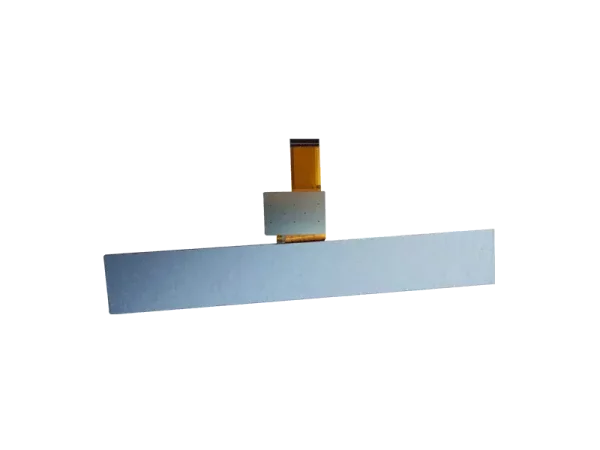

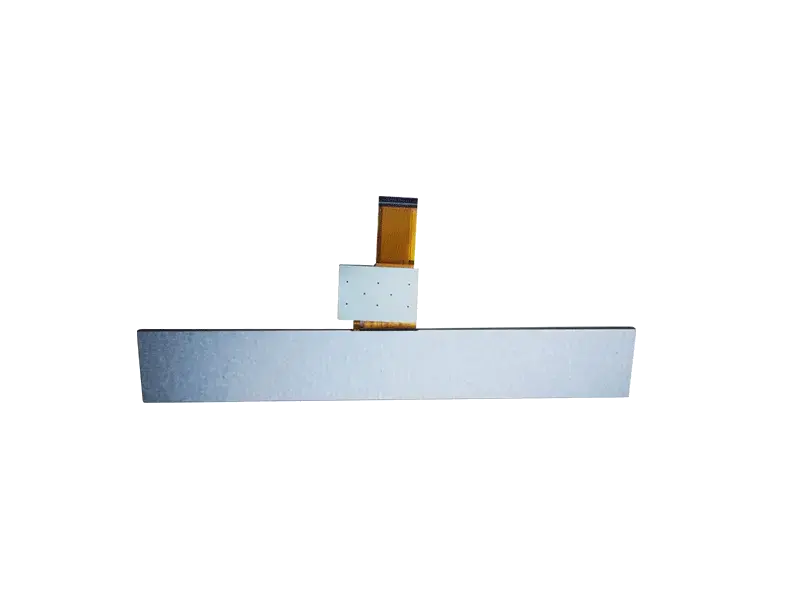

10.4 inch 1024×100 Bar LCD display back view

 10.4 inch touch screen

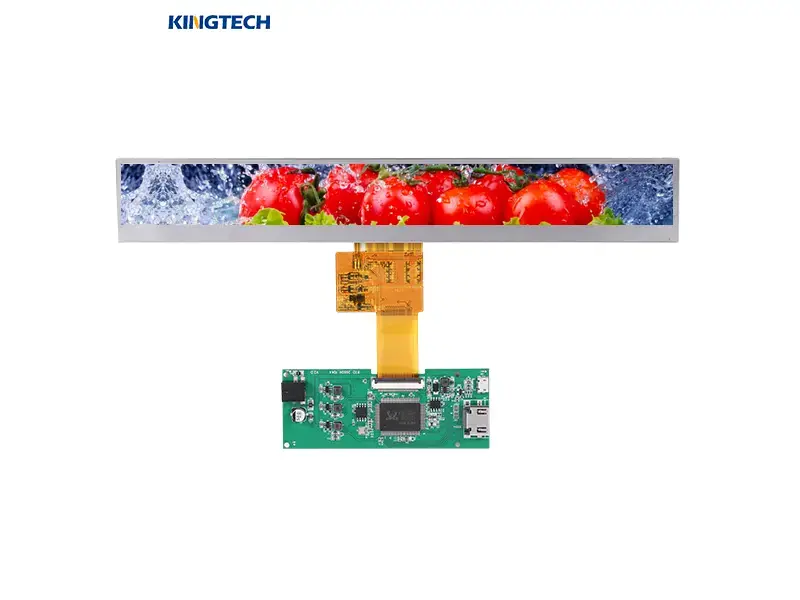

10.4 inch 1024×100 Bar LCD display with HDMI Board

10.4 inch 1024x100 resolution bar type lcd display

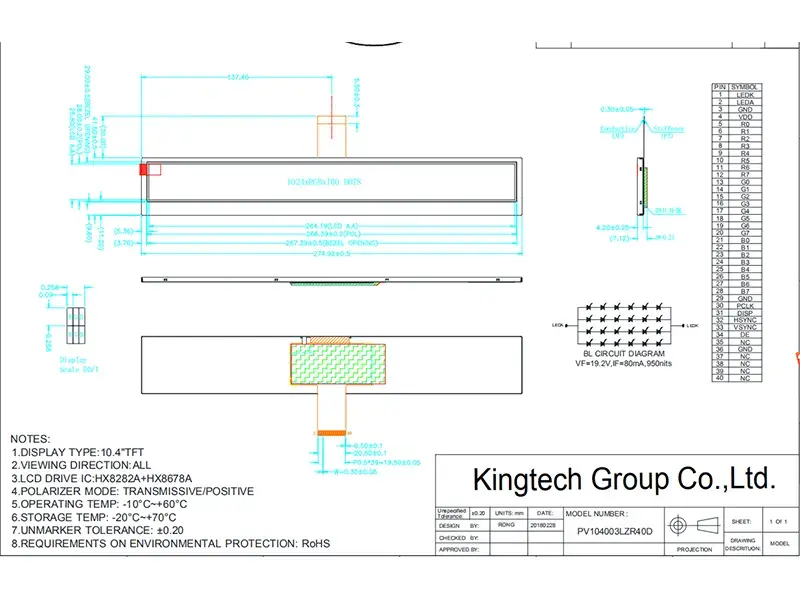

10.4 inch 1024×100 Bar LCD display Machine Drawing

10.4 inch 1024x100 resolution bar type lcd display
