12.1 inch 1024*768 TFT LCD module

Item12.1 inch 1024*768 TFT LCD module
Model NoPV012104TX20E
Resolution1024*768
Outline Dimension260.5 (H) x 204 (V) x 8.6 (D)
Active Area(mm)245.76(H)x184.32(V)
InterfaceLVDS
Viewing AngleIPS
Driving ICHX8678
Display ModeTFT/TRANSMISSIVE
Operating Temperature0 to +50℃
Storage Temperature-30 to +80℃
Brightness850nits
Touch screenResistive and capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

12.1 inch 1024×768 resolution  IPS 950nits high brightness lcd display
1.PV012104TX20E mainly application for industrial device
2.It with all view angle ,1024×768 resolution , LVDS interface , 950nit high brightness .
3.And it can custom capacitive or resistive touch panel as customer ‘s requirement .
4.The high brightness support sunlight readable , It can be well used for outdoor .

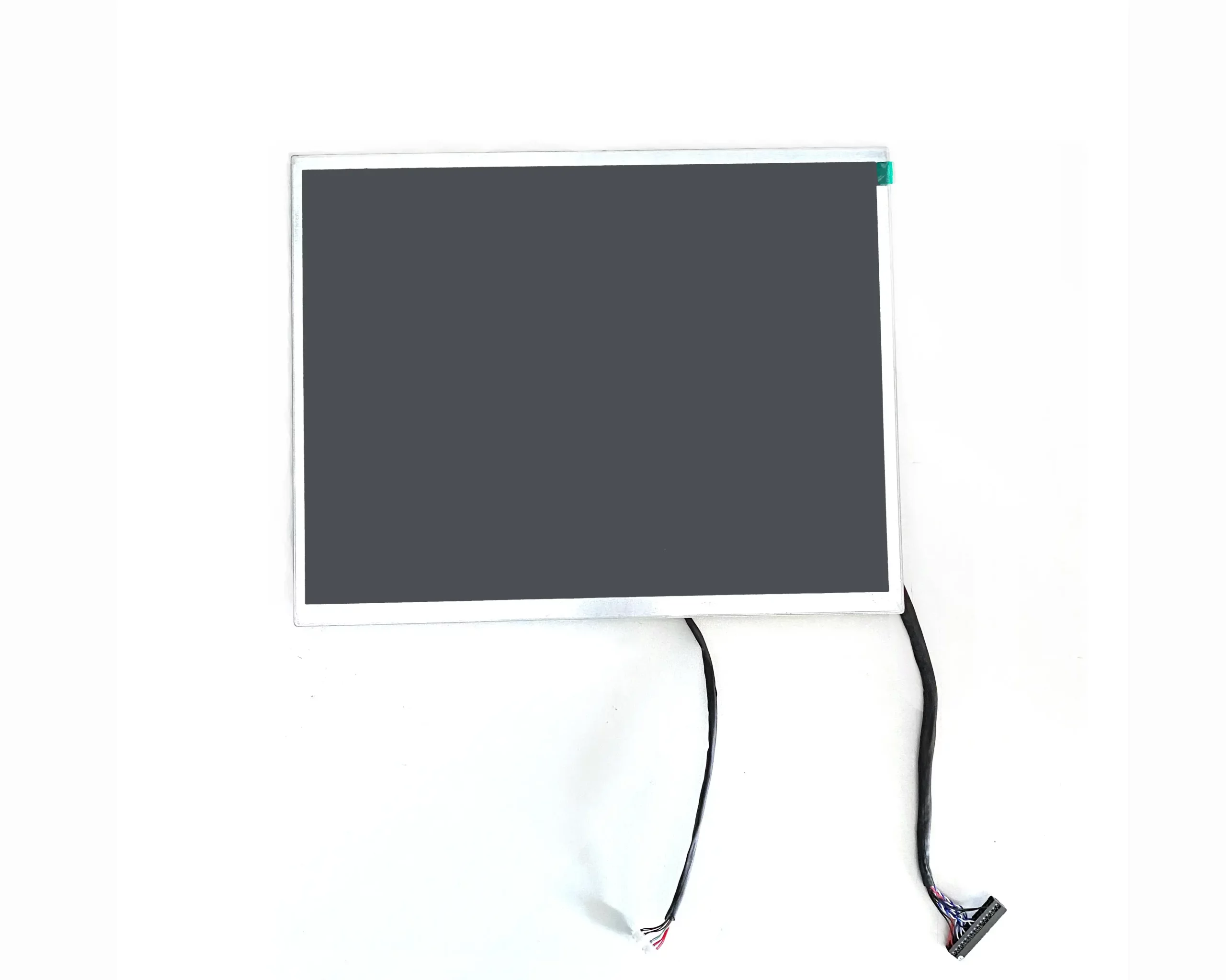

850nits brightness sunlight readable Front View 12.1 inch 1024*768 TFT LCD module

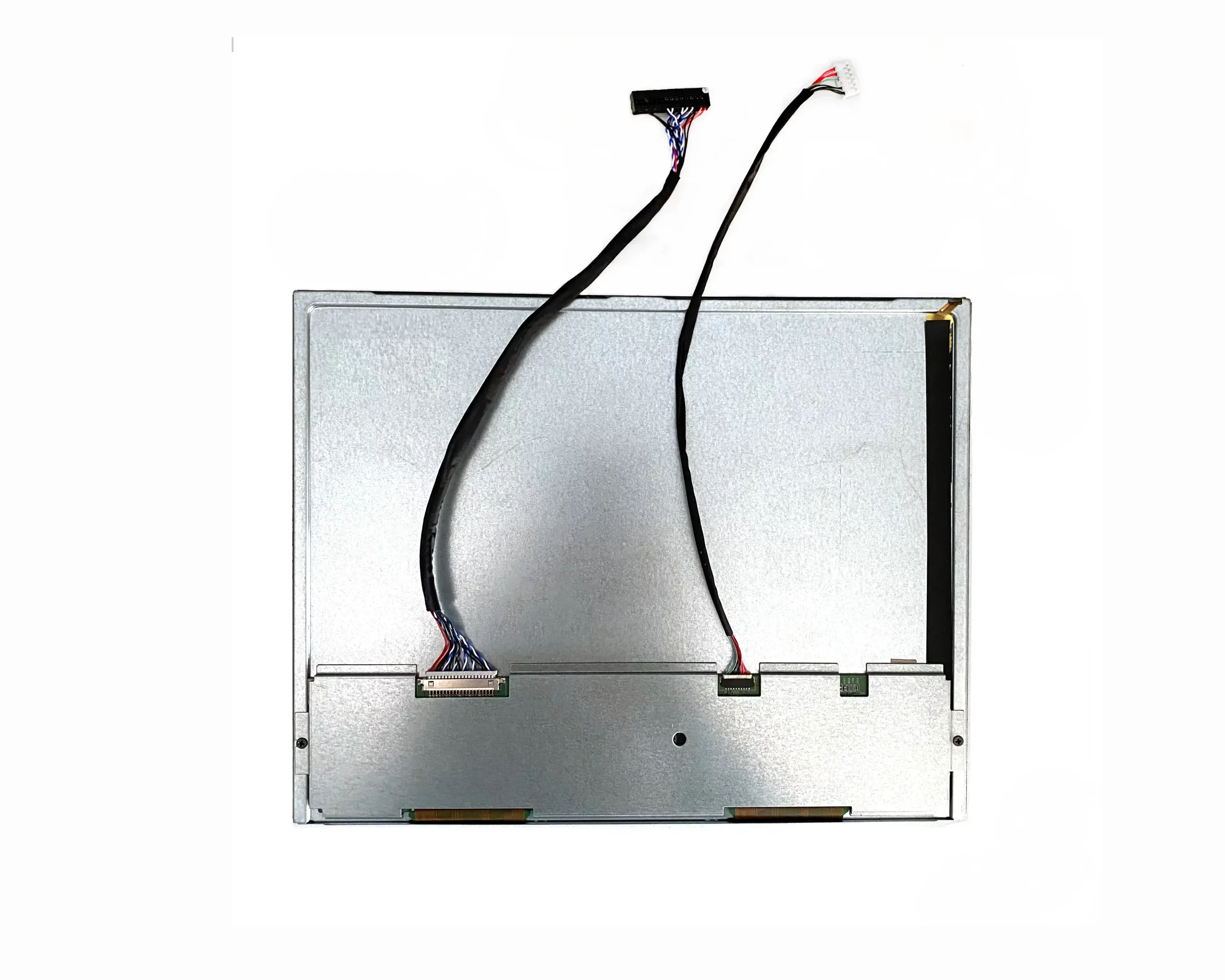

850nits brightness sunlight readable Back View

12.1 inch 1024*768 TFT LCD module

12.1 inch 1024*768 TFT LCD module

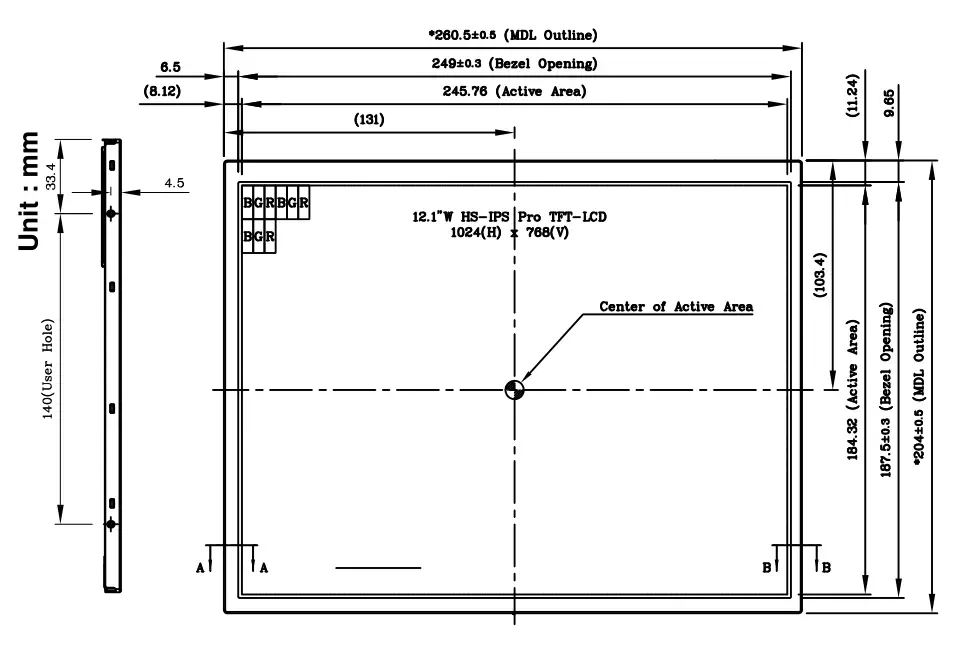

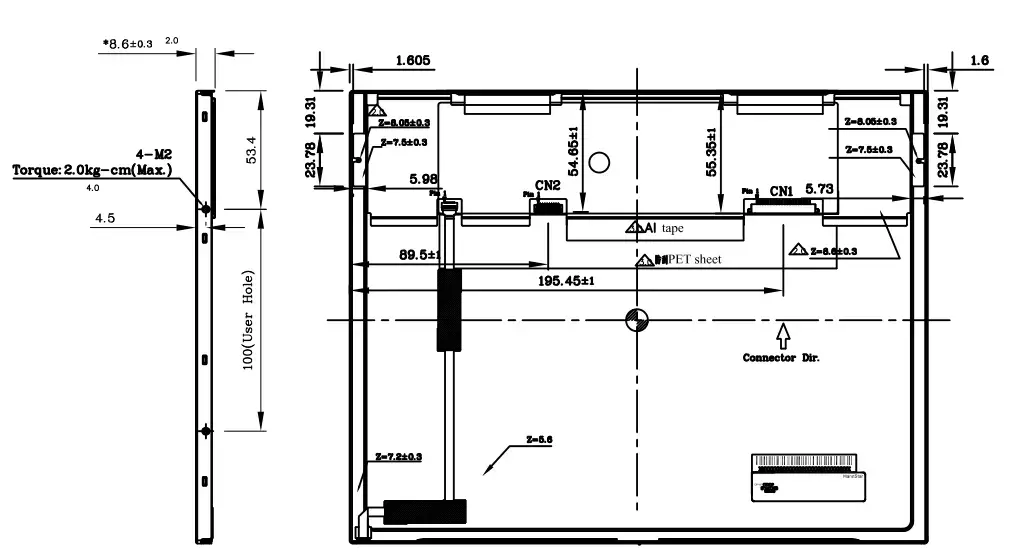

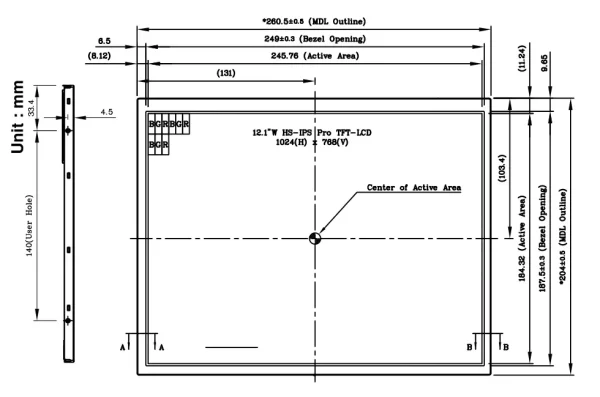

12.1 inch 1024*768 TFT LCD module Machine Drawing12.1 inch 1024*768 TFT LCD module
