15.6 inch 1920×1080 eDP interface 30pins touch screen DW1560B2Z0

Item15.6 inch IPS TFT lcd display
Model NoDW1560B2Z0
Resolution1920*1080
Outline Dimension204.9(H)*350.7(W)*2.90(T)
Active Area(mm)193.59(H)*344.16(W)
InterfaceeDP
Viewing AngleALL
Driving ICILI6145A
Display ModeNormally Black
Operating Temperature‘0℃~70℃
Storage Temperature‘-10℃~70℃
Response time40ms
Brightness600nits
Touch screenCan custom capacitive touch and resistive touch

For product pricing,customization,or other inquiries:

Share to:

15.6 inch 1920×1080 resolution eDP/lLVDS interface high brightness lcd display
1.DW1560B2Z0 mainly application for  Industrial  device .
2.It with IPS all viewing angle , 30 pins EDP interface and ILI6145A driver IC , wide work temperature , high color gamut.
3.It with 1920×1080 High resolution, eDP and LVDS interface available, 250/600/1000nits high brightness, with great 4.display effect and supports sunlight readable /outdoor device.
5.It also can custom touch panel as customer ‘s requirement .
6.It is A grade product , the good quality well use for Industrial ,medical application .

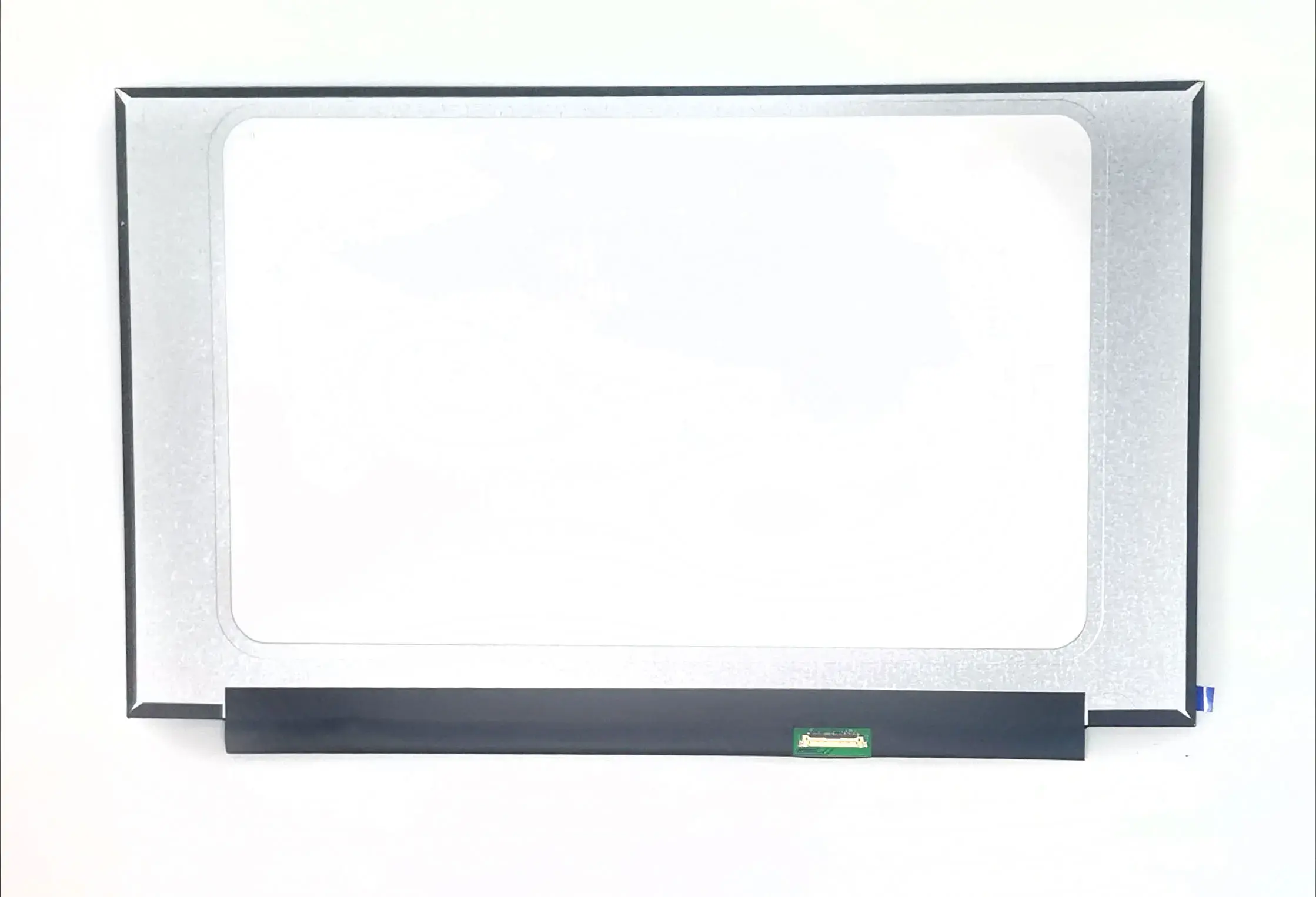

15.6 inch IPS TFT lcd display Front View

15.6 inch 1920x1080 eDP interface 30pins touch screen DW1560B2Z0

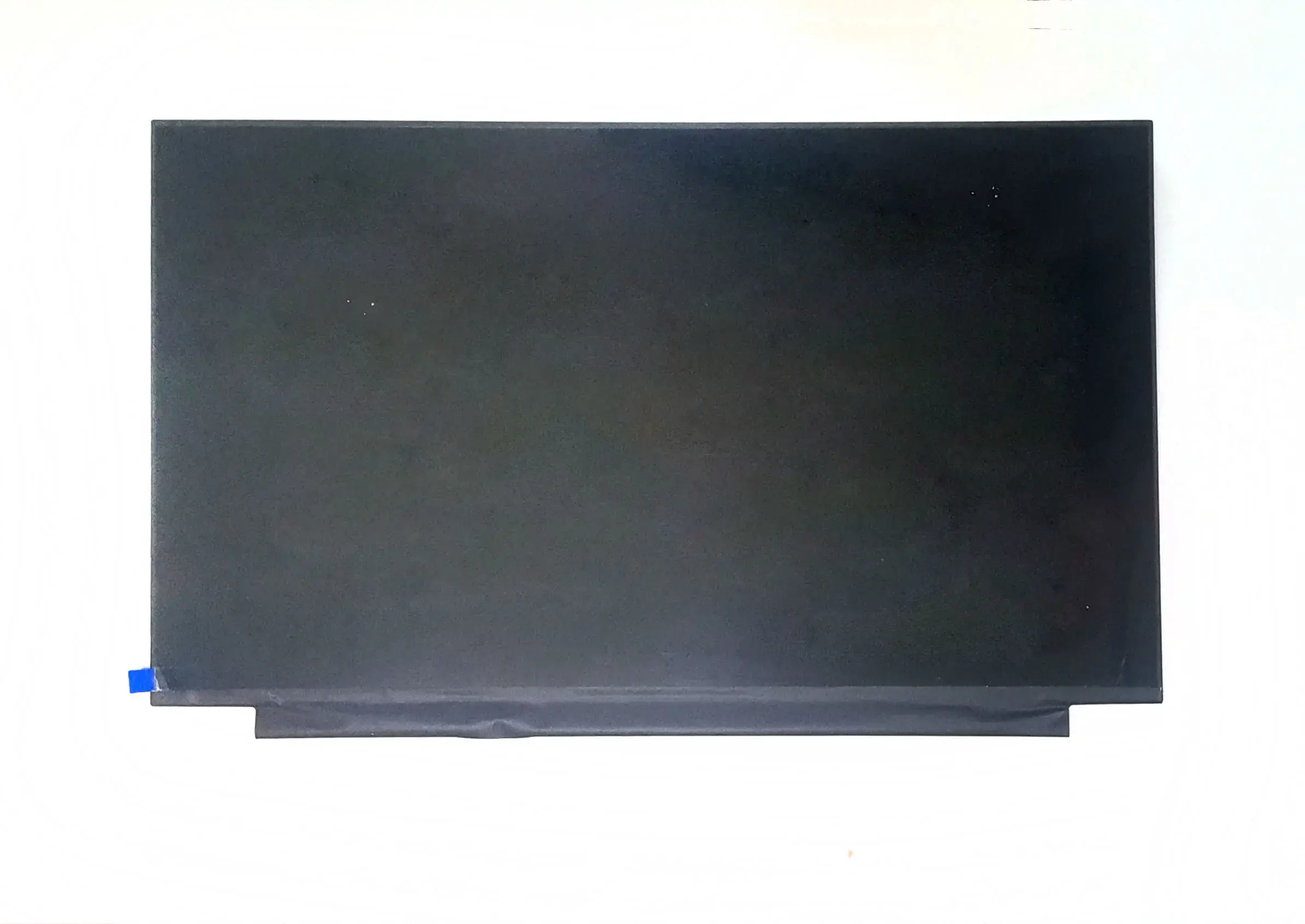

15.6 inch IPS TFT lcd display Back View

15.6 inch 1920x1080 eDP interface 30pins touch screen DW1560B2Z0
