ST7789H2 150 nits ips 1.22 inch round lcd screen

Item 5inch 1080×1080 round module display
Model No PV05003SYS50B
Resolution 1080×1080
Outline Dimension 136.531(W)x132.208(H)x1.98(T)
Active Area(mm) 127.008(H)x127.008(V)
Interface MIPI
Viewing Angle ALL
Driving IC HX8399C
Display Mode Transmission / Normally Black
Operating Temperature -20 to +70℃
Storage Temperature -30 to +80℃
Brightness 400nits
Touch screen Resistive and capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

5.0 inch 1080×1080 MIPI IPS round LCD display
1.PV05003SYS50B  mainly  mainly application for  Industrial ,medical smart home equipment .
2.It with 1080×1080 resolution , mipi interface , IPS (all ) viewing angle ,400nits brightness ,existing capacitive touch pane
3.HDMI board to work with Raspberry Pi directly
4.It also can custom touch panel as customer ‘s requirement .
5.It is A grade product , the good quality well use for Industrial ,medical application .

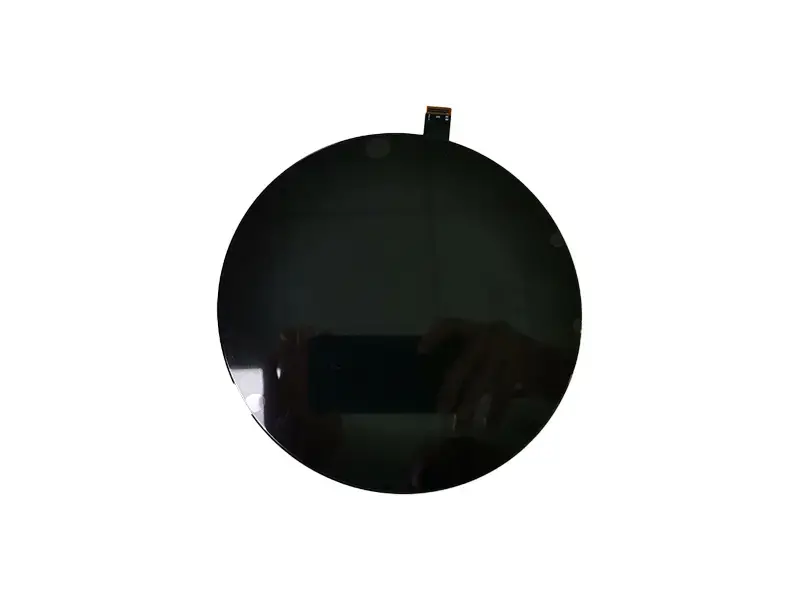

5inch 1080×1080 round module display Front View


 best small lcd

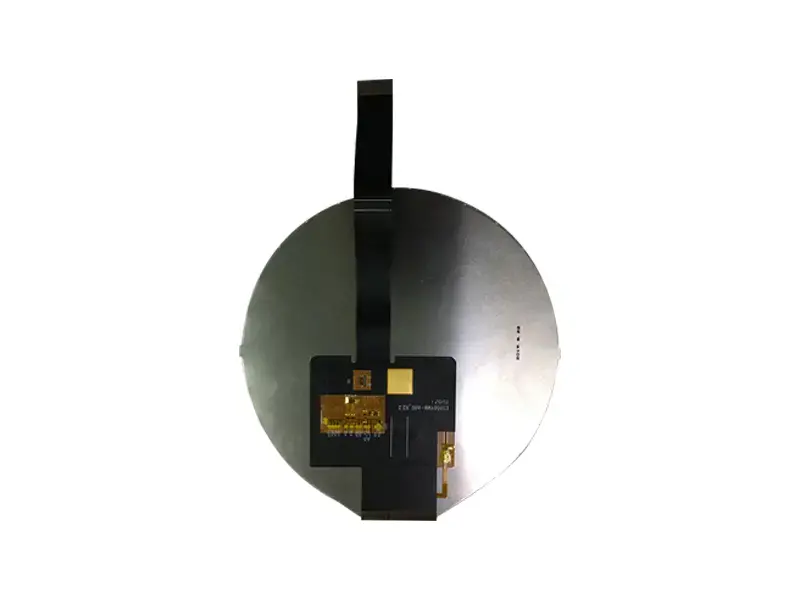

5inch 1080×1080 round module display Back View

 best small lcd
