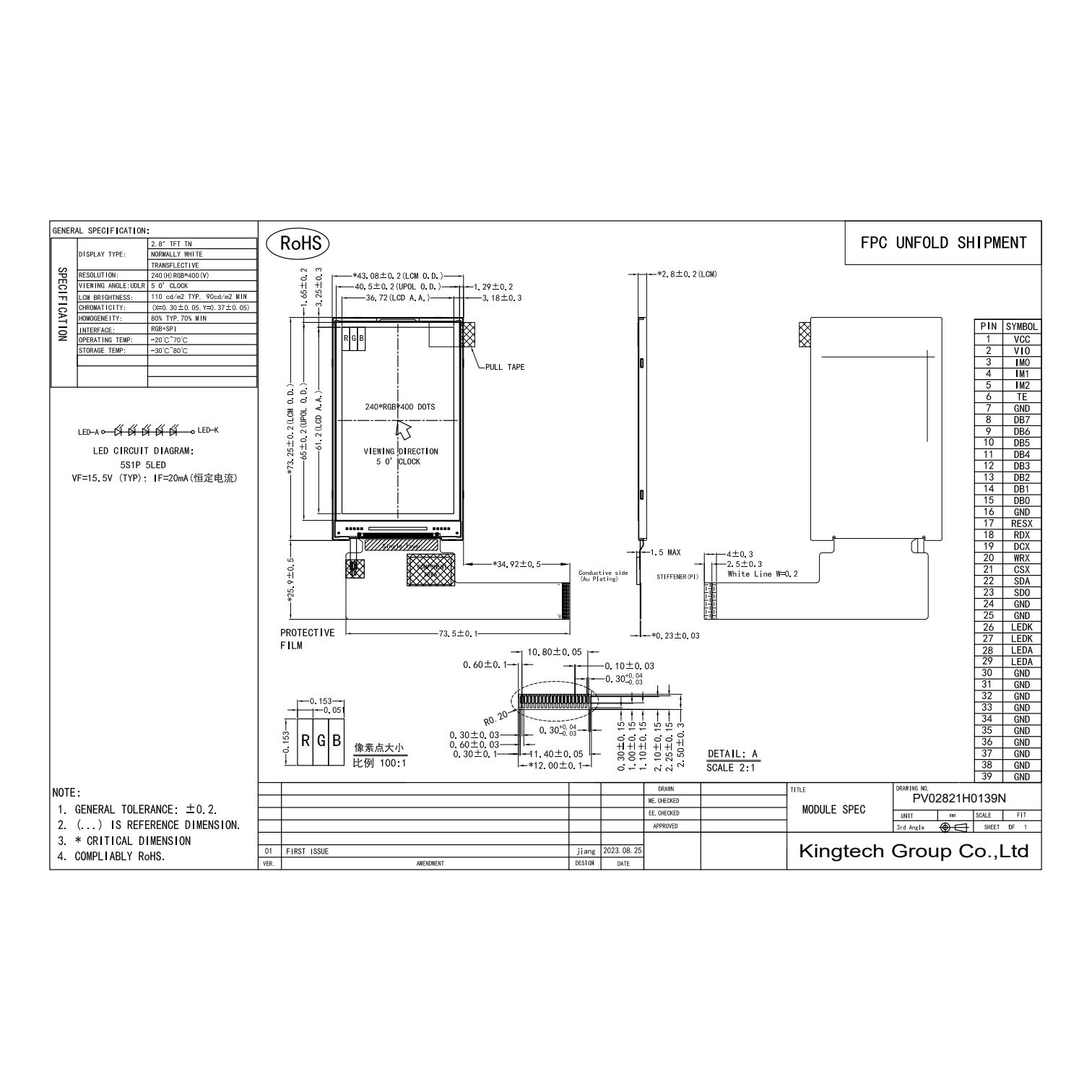

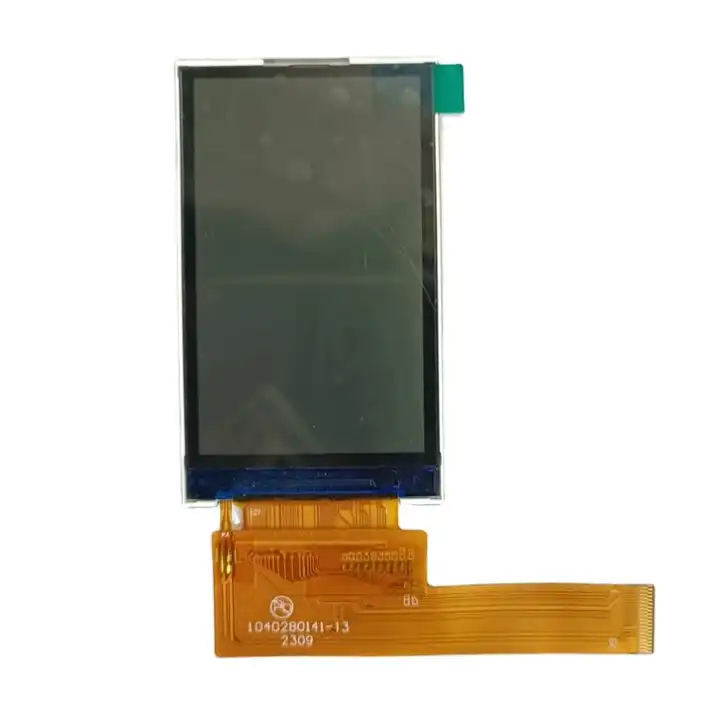

2.8 inch 240*400 resolution LCD display
| Item | 2.8 inch TN transflective LCD display |
| Model No. | PV02821H0139N |
| Resolution | 240*400 |
| Outline Dimension (mm) | 43.08*73.25*2.8 |
| Active Area (mm) | 36.72*61.2 |
| Viewing Angle | 5 O’clock |
| Brightness | 110nits |
| Interface | RGB+SPI |
| Backlight | 5*1LED |
| Driving IC | / |
| PIN No. | 39 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, E-bike, Electronic motor |
For product pricing,customization,or other inquiries:
Share to:
- Transflective LCD display
- Stable supply
- TN
- 110nits brightness/Outdoor/Sunlight readable
- Can custom resistive touch and capacitive touch
