50 pin ips 2 inch java games touch screen 240×320

Item2.4inch rectangle TFT LCD module
Model NoPV02004LZR50G
Resolution240×320
Outline Dimension36.05(W)x51.80(H)x1.78(T)
Active Area(mm)30.60(W)x40.80(H)
Interfacei80-system 8/16/18-bit MCU interface 3SPI/4SPI/ 16/18-bit RGB interface
Viewing AngleAll
Driving ICST7789V
Display ModeTransmissive / Normally Black
Operating Temperature-20 to +70℃
Storage Temperature-30 to +80℃
Brightness400nits
Touch screenResistive and capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

2 inch 240×320 QVGA IPS MCU TFT LCD display .

1. PV02004LZR50G mainly application for Smart home and wearable devices
2. It with IPS Full Free Wide viewing angel , 240×320 resolution/ QVGA , i80-ST7789V Driver IC, 400nits brightness.
3. It also can custom board and capacitive/resistive touch panel;
4. It is the A grade product , with good quality for the Smart home and wearable devices.

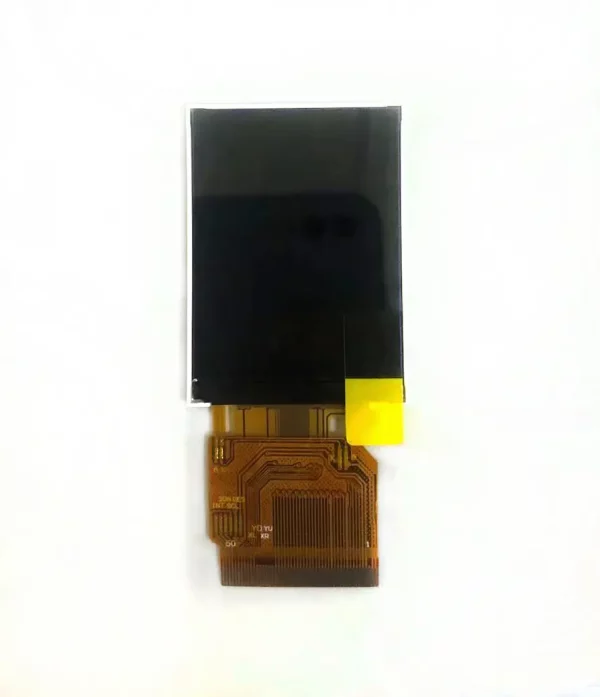

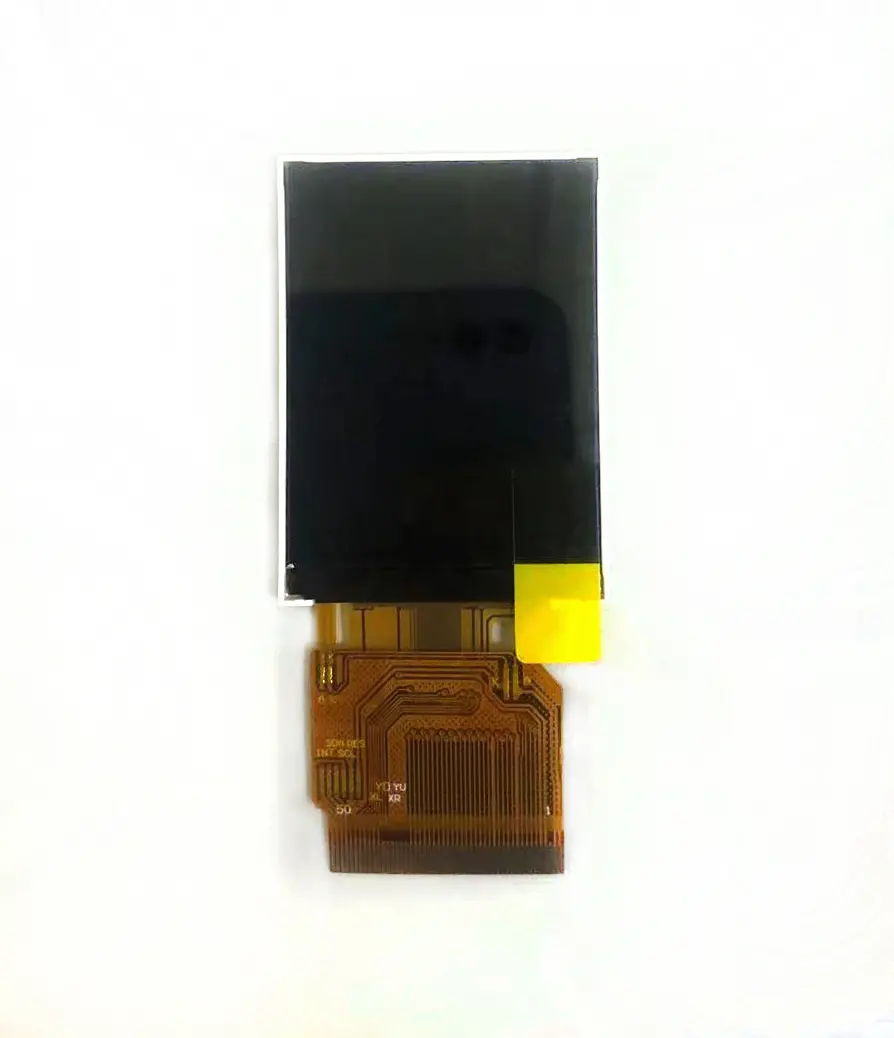

2.0 inch MCU interface TFT LCD display front view

2 inch tft display

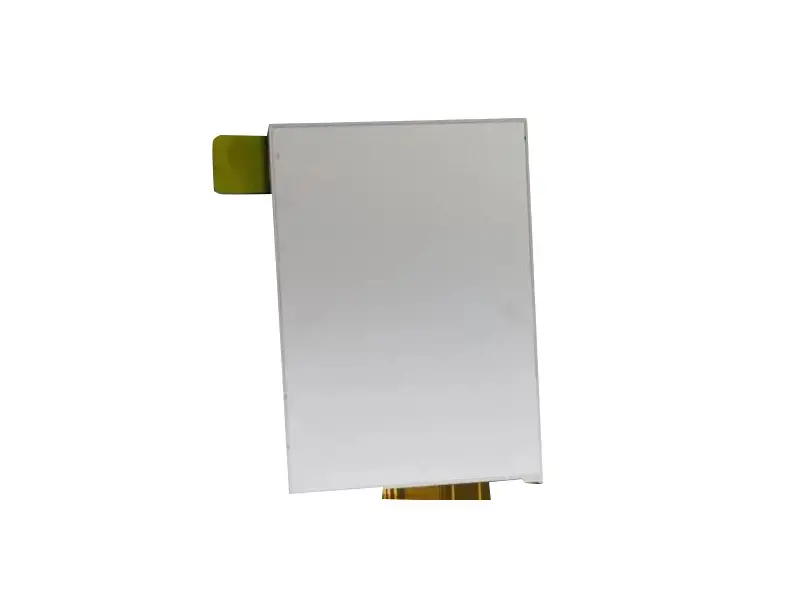

2.0 inch MCU interface TFT LCD display back view

2 inch tft display

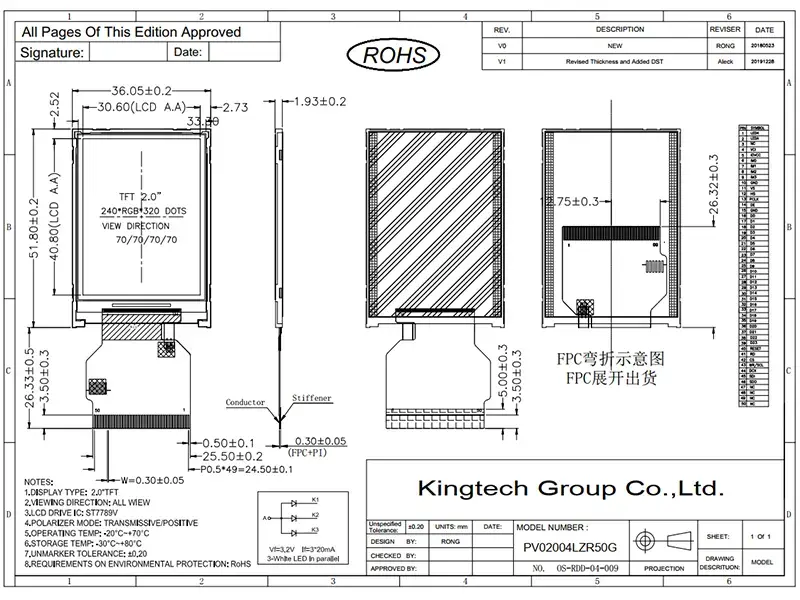

2.0 inch QVGA TFT LCD display Machine Drawing

PV02004LZR50G
