Item | 3.5 inch TFT ips 480*800 display |
Model No | PV035005LZR61E |
Resolution | 480(RGB)×800 |
Outline Dimension | 50.16(W)×85.84(H)×1.85(T) |
Active Area(mm) | 45.36(W)×75.60(H) |
Interface | SPI + 16-/18-/24-bit RGB interface MIPI interface |
Viewing Angle | 80/80/80/80 deg |
Driving IC | ST7701S |
Display Mode | TFT/TRANSMISSIVE |
Operating Temperature | ‘-10°C ~ +60°C |
Storage Temperature | ‘-20°C ~ +70°C |
Brightness | 450cd/m2 |
Touch screen | Resistive and capacitive touch screen |
3.5 inch 480X800 resolution RGB/SPI/MIPI interface LCD display
1.PV035005LZR61E mainly application for handheld device , Industrial ,medical equipment
2.It with 480X800 resolution . RGB, SPI and MIPI interface , ST7701S Driver IC , full view angle .
3.And it can custom capacitive and resistive touch panel as customer ‘s requirement;
4.It is A grade product , the good quality well use for Industrial ,medical application .

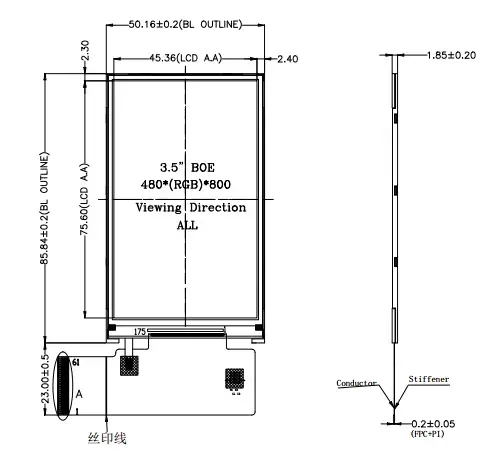

3.5 inch lcd display Front view

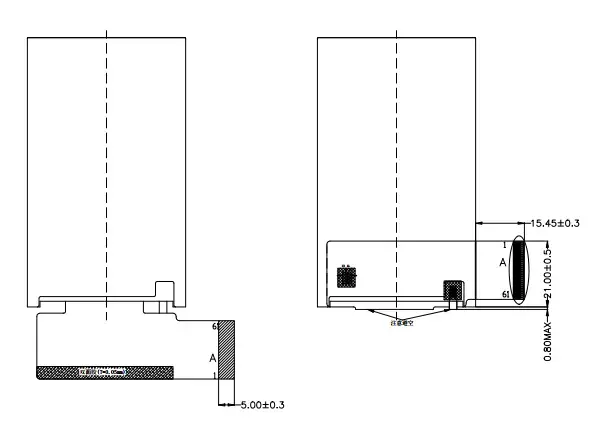

3.5 inch lcd display Back view
