Kingtech 3.5 inch ips 320*480 display

Itemkingtech 3.5 inch ips 320*480 display
Model NoPV035007TD24D
Resolution320*480
Outline Dimension53.8*82.9*2.08 MM
Active Area(mm)48.96*73.44 mm
InterfaceMIPI VIDEO MODE
Viewing AngleALL
Driving ICST7796S
Display ModeTFT/TRANSMISSIVE
Operating Temperature‘-20℃ to +70℃
Storage Temperature-30 to +80℃
Touch screenResistive and capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

3.5 inch 320×480 resolution MPU 16 bits IPS LCD module
1.PV0350B2Z10 mainly application  handheld device , Industrial ,medical equipment.
2.It with 320×480 resolution , all view angle , ILI 9488 driver IC , existing capacitive touch panel .
3.It also can custom touch panel,interface and brightness as customer ‘s requirement .
4.It is A grade product , the good quality well use for Industrial ,medical application .

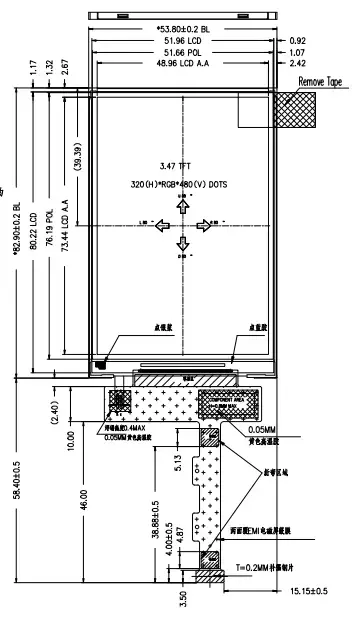

Kingtech 3.5 inch ips 320*480 display Front view

kingtech 3.5 inch ips 320*480 display

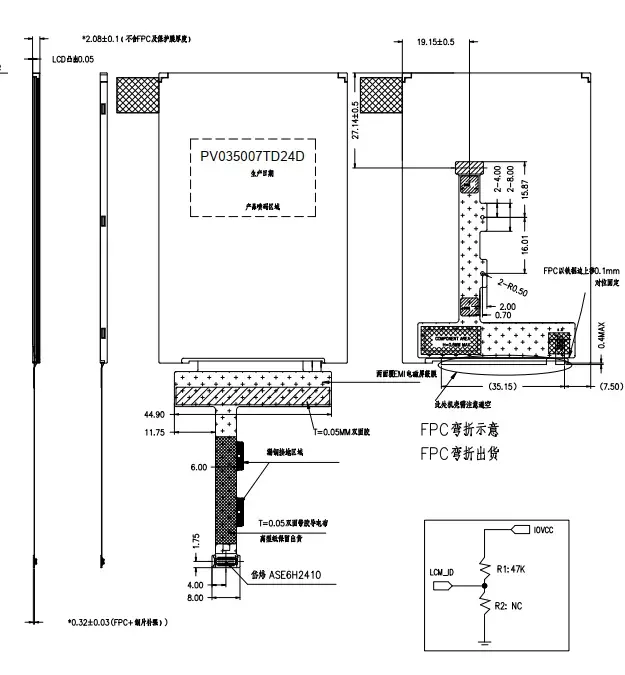

Kingtech 3.5 inch ips 320*480 display Back view :

kingtech 3.5 inch ips 320*480 display



Kingtech 3.5 inch ips 320*480 display Machine drawing :

kingtech 3.5 inch ips 320*480 display
