300/1000 nits rgb 800×480 7 inch tft lcd display

Item 7 inch 800×480 LCD display
Model No PV07002LZR40B
Resolution 800×480
Outline Dimension 164.9(W)×100(H)×5.7(T)
Active Area(mm) 154.08(W)×85.92(H)
Brightness 300nits / 1000nits
Viewing Angle 12 O’clock
Interface 24-bit Parallel RGB Interface
PIN 40
Operating Temperature -20 to +70℃
Storage Temperature -30 to +80℃
Touch Resistive / capacitive touch screen
Board HDMI Board

For product pricing,customization,or other inquiries:

Share to:

7 inch 800×480 WVGA 1000nits sunlight readable LCD display

1. PV07002LZR40B mainly application for Industrial ,medical equipment or outdoor device.
2. It with 800×480 resolution, 24-bit Parallel RGB Interface, 250nits and 1000nit brightness, existing capacitive touch panel, support Convert Board/HDMI Board.
3. It also can custom touch panel as customer ‘s requirement .
4. It is high brightness can be sunlight readable , can be well used for both indoor and outdoor .

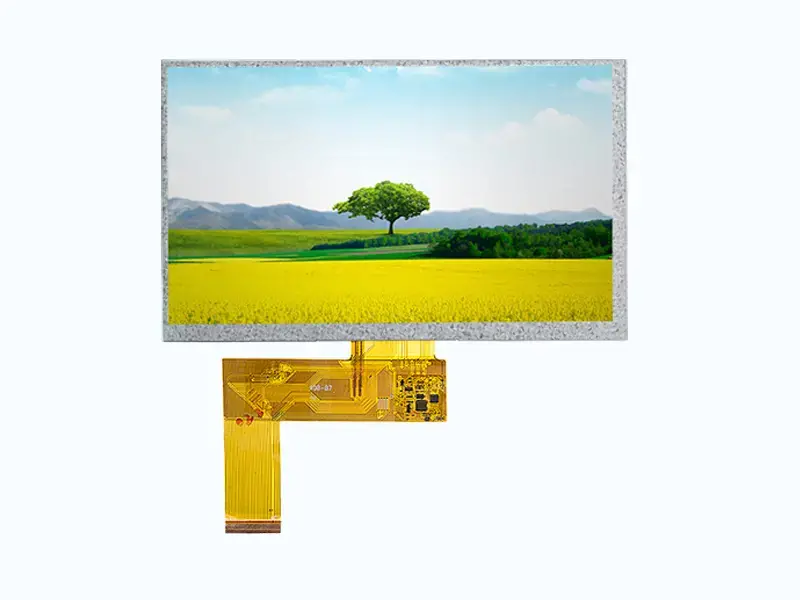

7 inch 800×480 high brightness TFT LCD display fornt viewlcd display

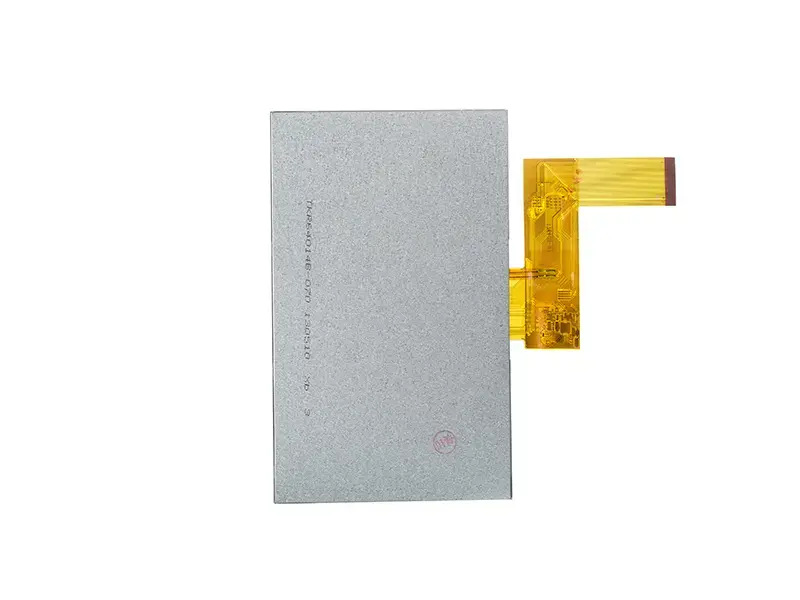

7 inch 800×480 high brightness TFT LCD display back view7inch lcd display

7 inch 800×480 high brightness TFT LCD HDMI board

7 inch 800x480 resolution RGB interface TFT LCD display

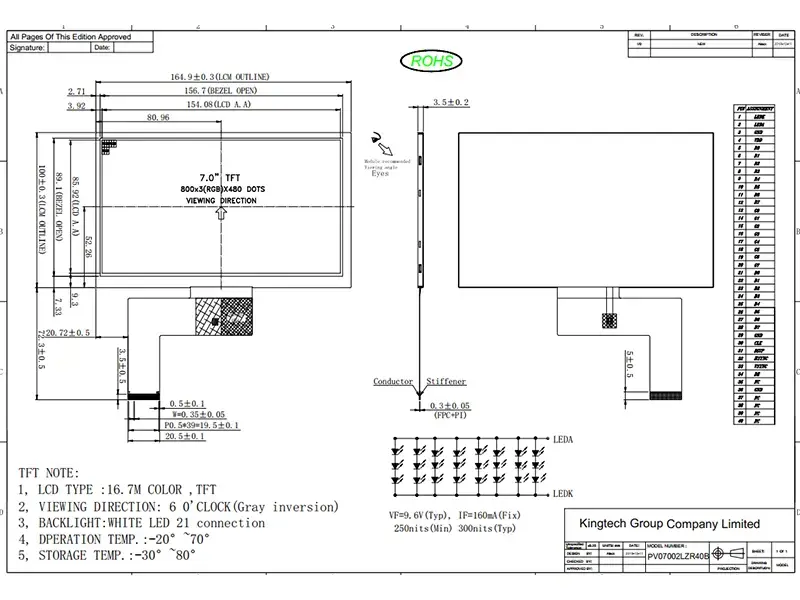

7 inch 800×480 high brightness TFT LCD display Machine Drawing7 inch 800x480 resolution RGB interface TFT LCD display

New Tab content 3

7 inch 800x480 resolution RGB interface TFT LCD display7 inch 800x480 resolution RGB interface TFT LCD display
