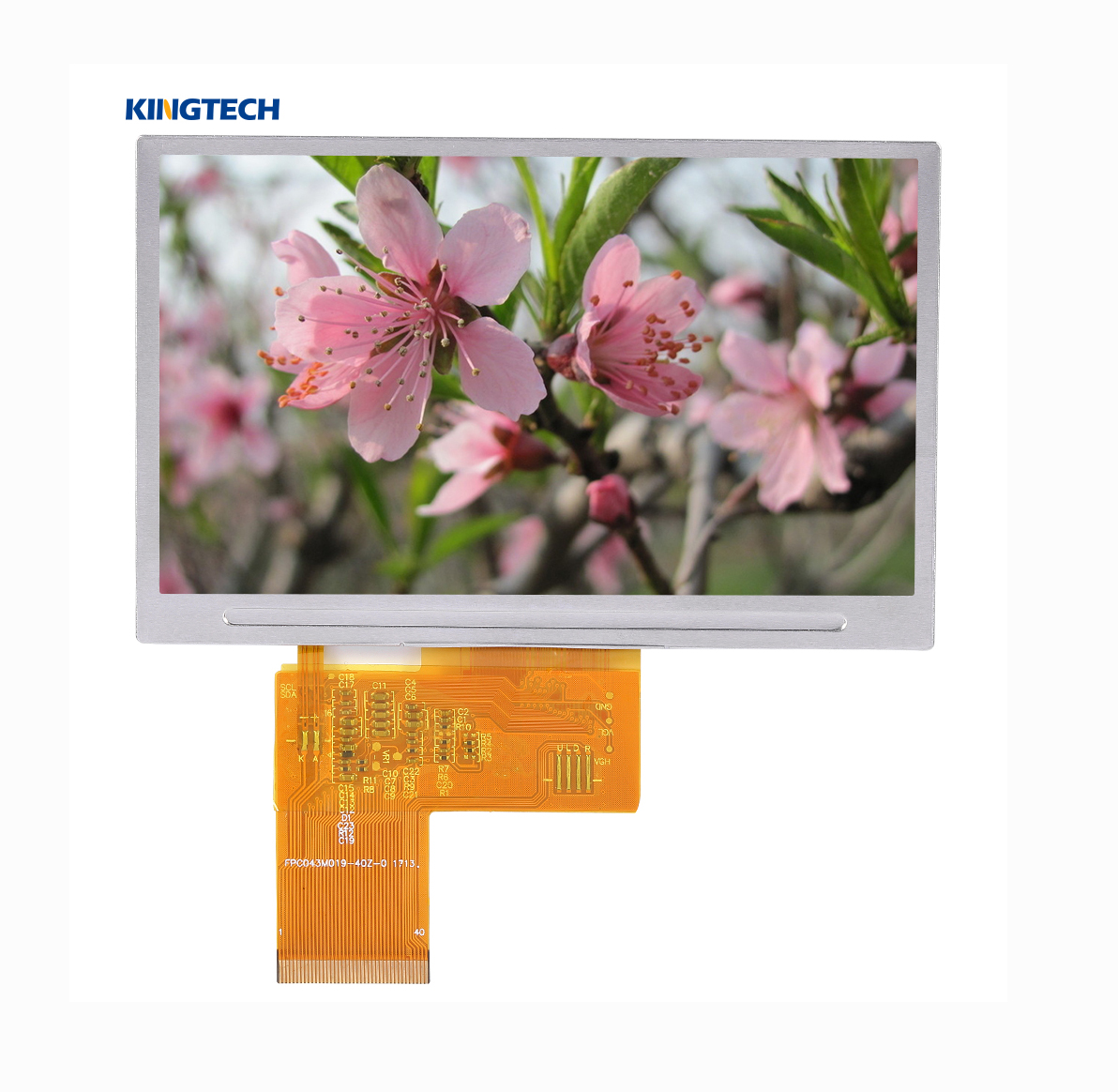

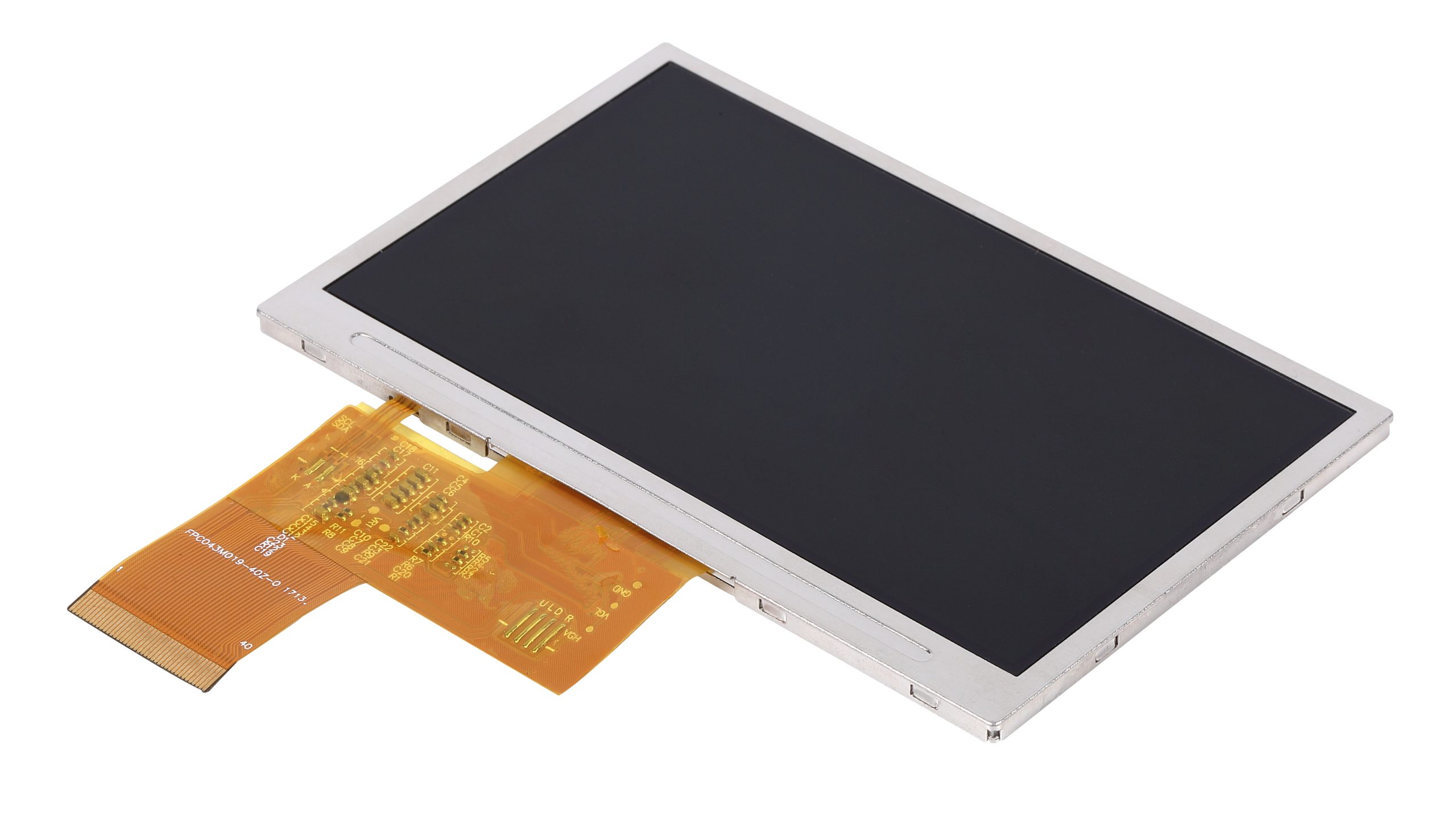

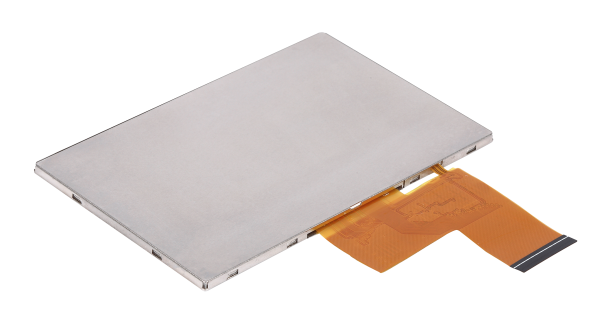

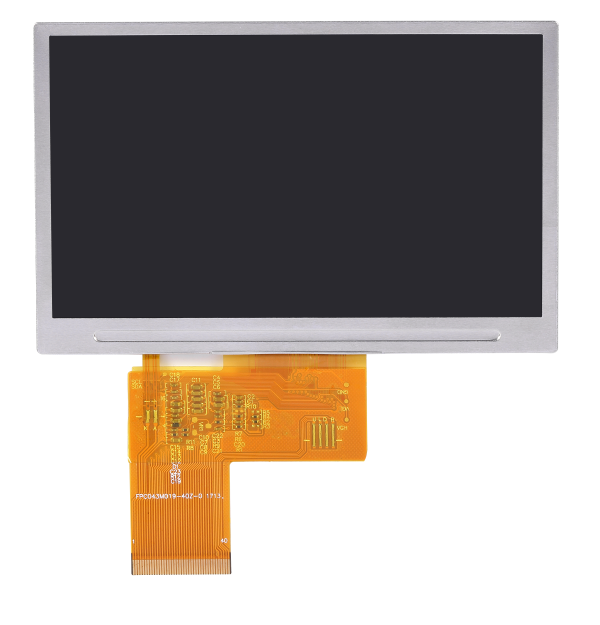

4.3 inch IPS TFT LCD display module WVGA 800×480

Item4.3inch TFT 800×480 wide temperature module display
Model No.PV043021T0140W
Resolution800×480/WVGA
Outline Dimension (mm)105.5*67.2*2.90
Active Area (mm)95.04*53.86
Viewing AngleAll
Brightness500nits~1000nits
Interface24bit RGB
Backlight5*2LED
Driving ICHX8264D03+HX8664B
PIN No.40
Operating Temperature-30℃~85℃
Storage Temperature-40℃~85℃
Touch screenCan custom touch screen based on customer requirements
ApplicationHousehold appliances, portable navigators, industrial, automatic cooker & coffee machine

For product pricing,customization,or other inquiries:

Share to:

  1. IPS TFT LCD display
  2. 4.3 inch 800×480 /WVGA
  3. Stable supply
  4. IPS /Full viewing angle/Wide viewing angle/All viewing angle
  5. 24 bit RGBinterface
  6. Wide working temperature/-30~+85C
  7. 500 nits brightness /High brightness/ Sunlight readable
  8. Touch optional
  9. Household appliances, portable navigators, industrial, automatic cooker & coffee machine

4.3" IPS TFT LCD Module 4.3" IPS TFT LCD Module 4.3" IPS TFT LCD Module 4.3" IPS TFT LCD Module

4.3" IPS TFT LCD Module
