4.3 inch with capacitive touch RGB interface 300nits 480×272 resolution IPS LCD display

Item 4.3 inch 480X272 touch screen
Model No PV043013HZ40N-CT1
Resolution 480×272
Outline Dimension 105.5*67.2*5.02
Active Area(mm) 95.04*53.86
Interface RGB Interface
Viewing Angle All
LED life 30000h
Display Mode Transmissive / Normally Black
Operating Temperature -30℃ to +80℃
Storage Temperature -30℃ to +80℃
Brightness 300nits
Touch screen With capacitive touch

For product pricing,customization,or other inquiries:

Share to:

4.3 inch with capacitive touch IPS 480×272 resolution RGB interface 300nits brightnes LCD isplay

1. PV043013HZ40N-CT1 mainly application for  Industrial ,medical equipment .
2. It with 480×272 resolution , with IPS/ all/ free/ wide view angle, 300 nit high brightness , RGB interface, ST7283 driver IC , existing capacitive touch and resistive touch panel .
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ,medical application.

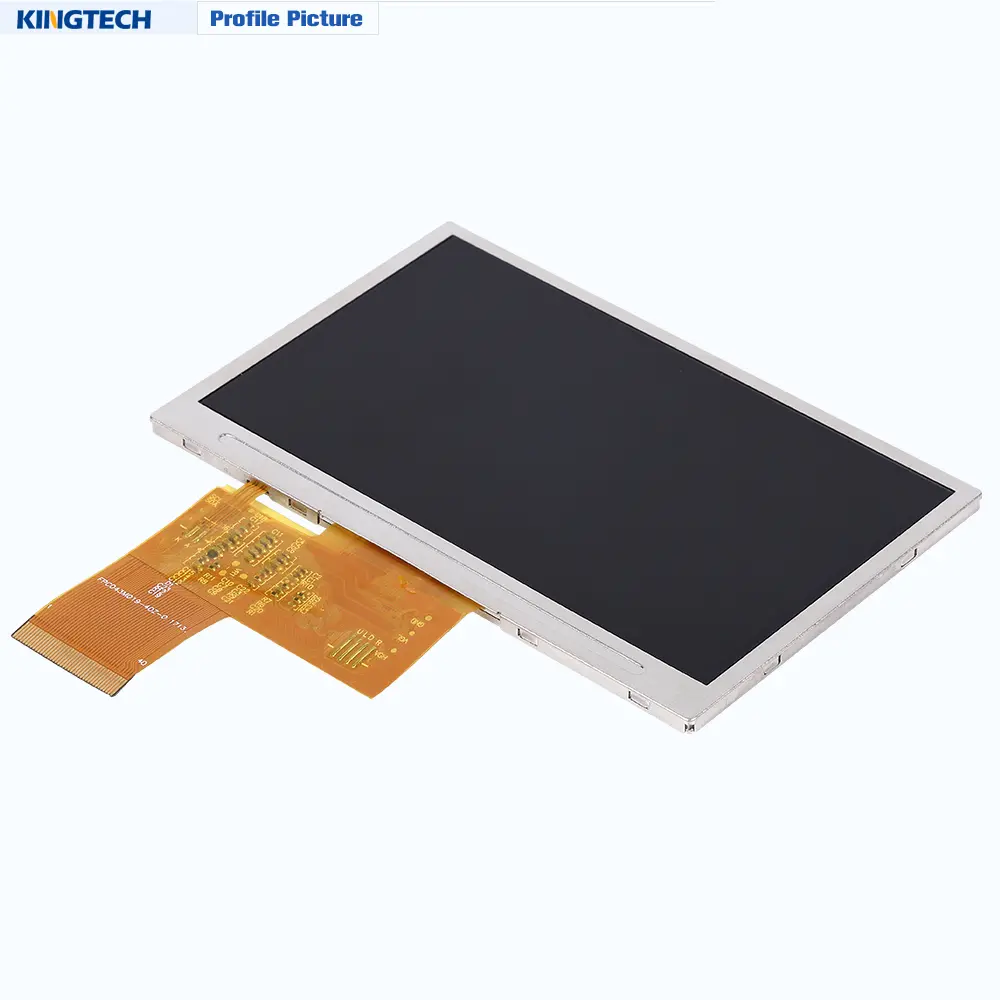

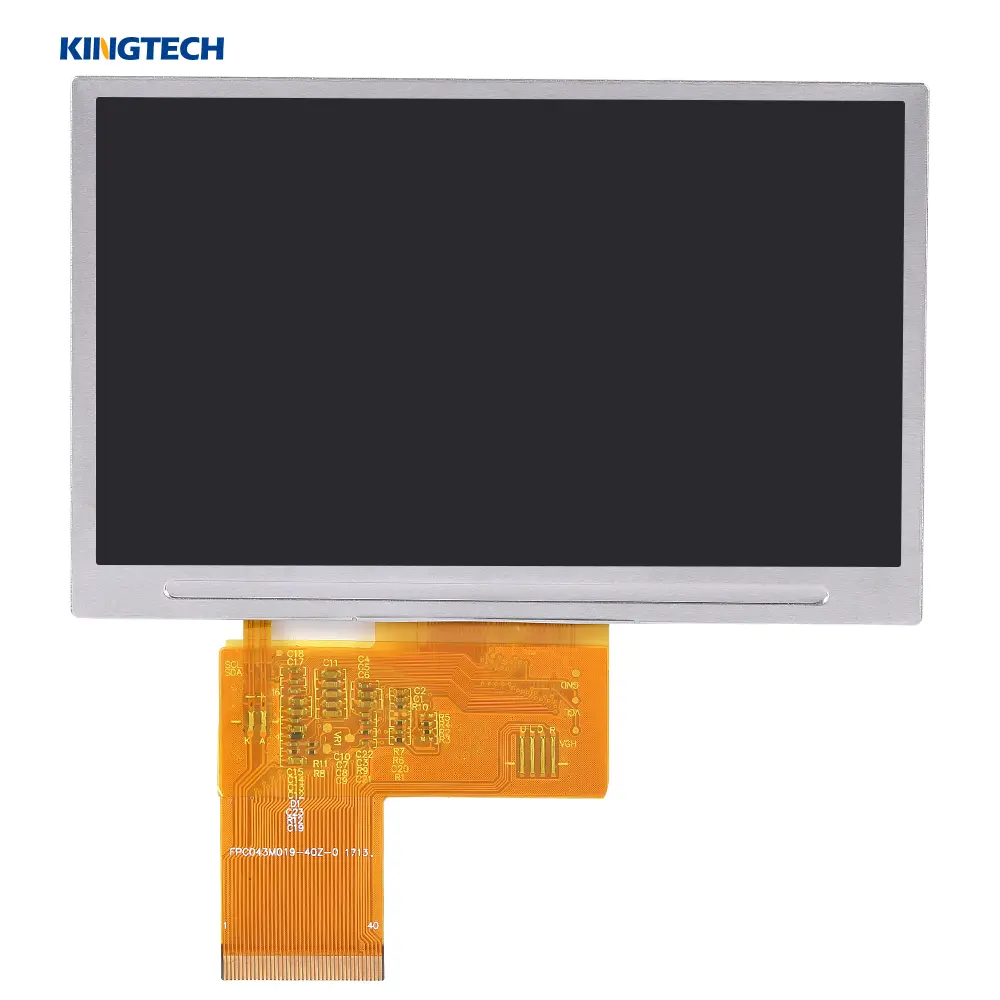

IPS 4.3 inch LCD display front view

主图-1000x1000

主图-侧-1000X1000

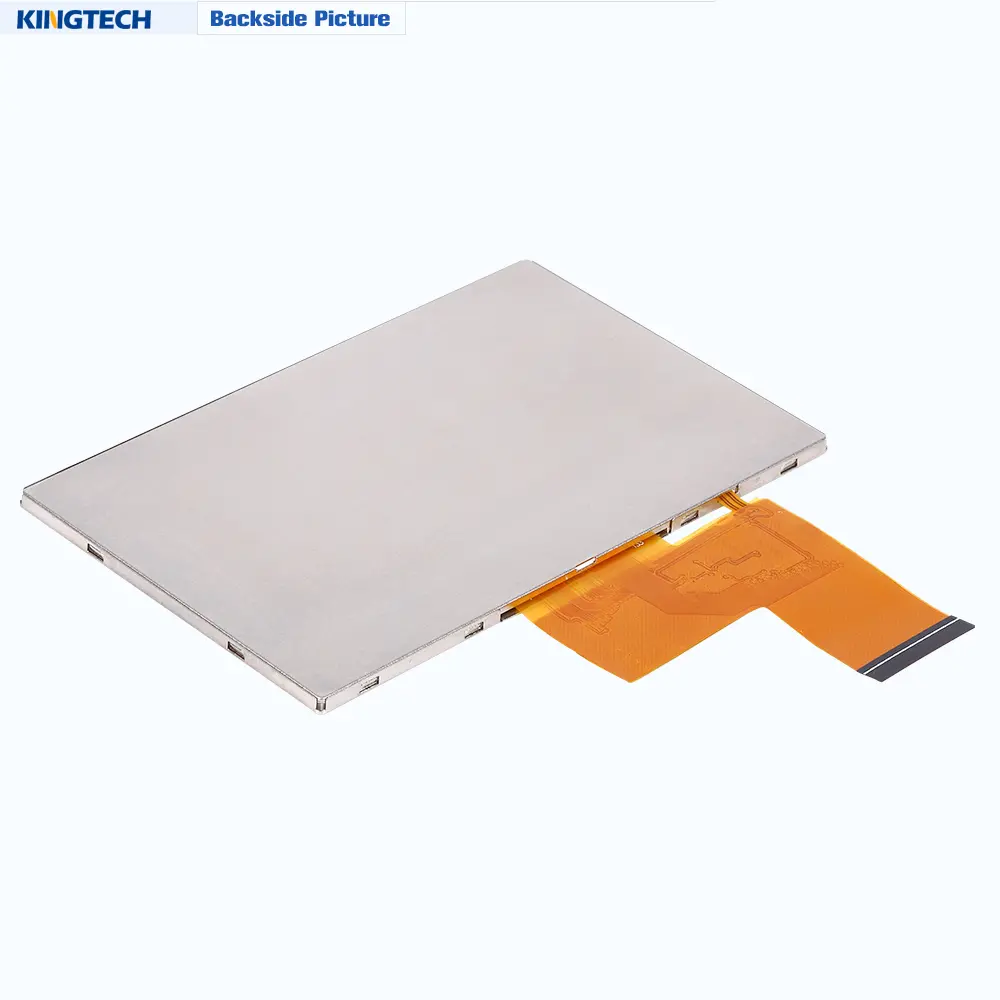

RGB interface 4.3 inch LCD display back view

主图-背-1000X1000
