40 pin 480×272 4.3 tft lcd module

Item4.3 inch IPS wvga TFT display
Model NoPV04305LZR40E
Resolution480×272
Outline Dimension105.5(W)x67.2(H)x3.0(T)
Active Area(mm)95.04(W)x53.86(H)
Interface24bit RGB
Viewing AngleAll
Driving ICSC7283
Display ModeTFT/TRANSMISSIVE
Operating Temperature-20 to +70℃
Storage Temperature-30 to +80℃
Brightness500nits
Touch screenResistive and capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

4.3 inch 480×272 resolution RGB 500nits high brightness lcd display
1.PV04305LZR40E mainly application for  Industrial ,medical equipment .
2.It with 480×272 resolution , 500nit high brightness, 24bit RGB interface , SC7283 driver IC.
3.It also can custom touch panel as customer ‘s requirement .
4.It is A grade product , the good quality well use for Industrial ,medical application . It is sunlight readable can be     well used for both indoor and outdoor.

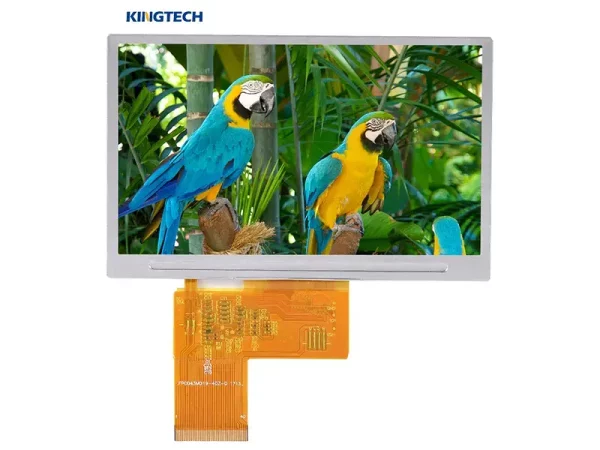

4.3 inch IPS wvga TFT display Front view



PV04305LZR40E

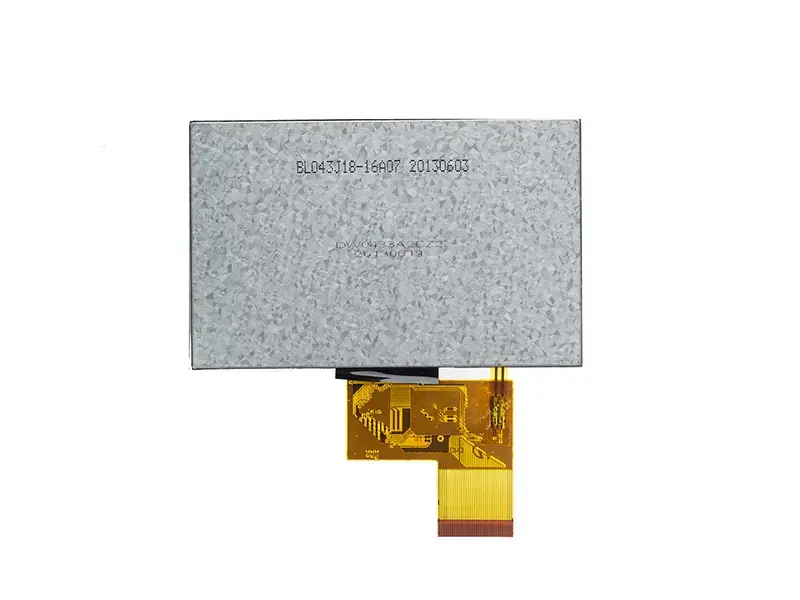

4.3 inch IPS wvga TFT display Back view

PV04305LZR40E

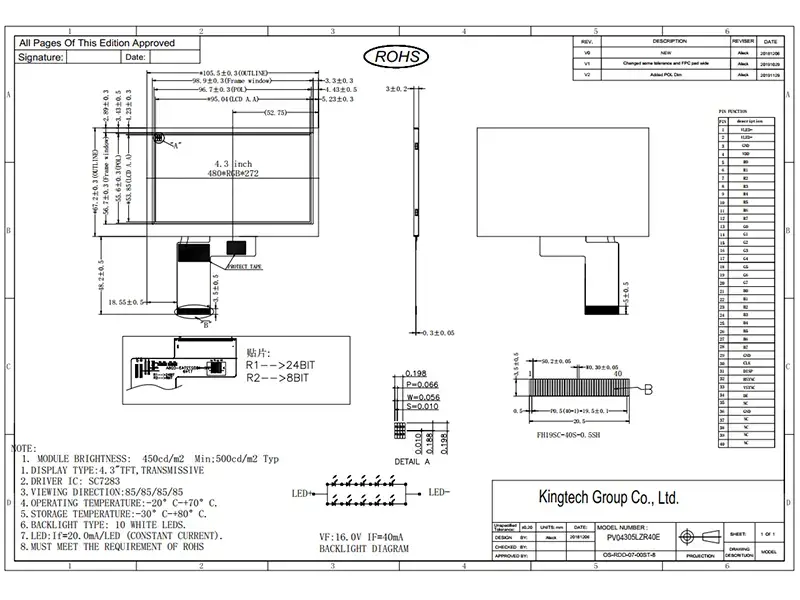

480×272 resolution 4.3 inch lcd display machine drawing

PV04305LZR40E
