45 pin 160×128 ips 1.8 inch oled

Item1.8 inch 160×128 PMOLED display
Model NoPV18160128FH007
Resolution160×128
Outline Dimension42.7*47.5*2.01
Active Area(mm)35.015*28.012
Brightness50nits
Viewing angleAll
Interface8/9/16/18-bits 6800/8080-series Parallel Interface, Serial Peripheral interface
Driving ICSSD1353U7
Operating Temperature-40 to +70℃
Storage Temperature-40 to +80℃

For product pricing,customization,or other inquiries:

Share to:

1.8 inch 160×128 all viewing angle wide temperature PMOLED display

1. PV18160128FH007 mainly application for instruments and equipment, handheld devices .
2. It with IPS full viewing angle , wide work temperature , SSD1353U7 driver IC .
3. And it can custom touch panel as customer ‘s requirement .
4. This model without backlight , super thin of thickness, super power saving of power.

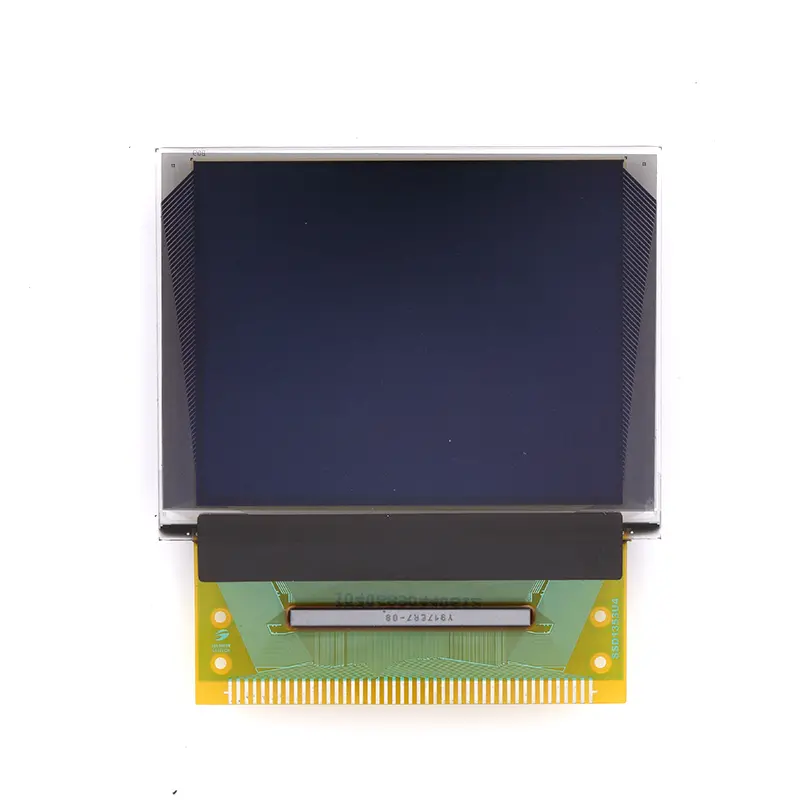

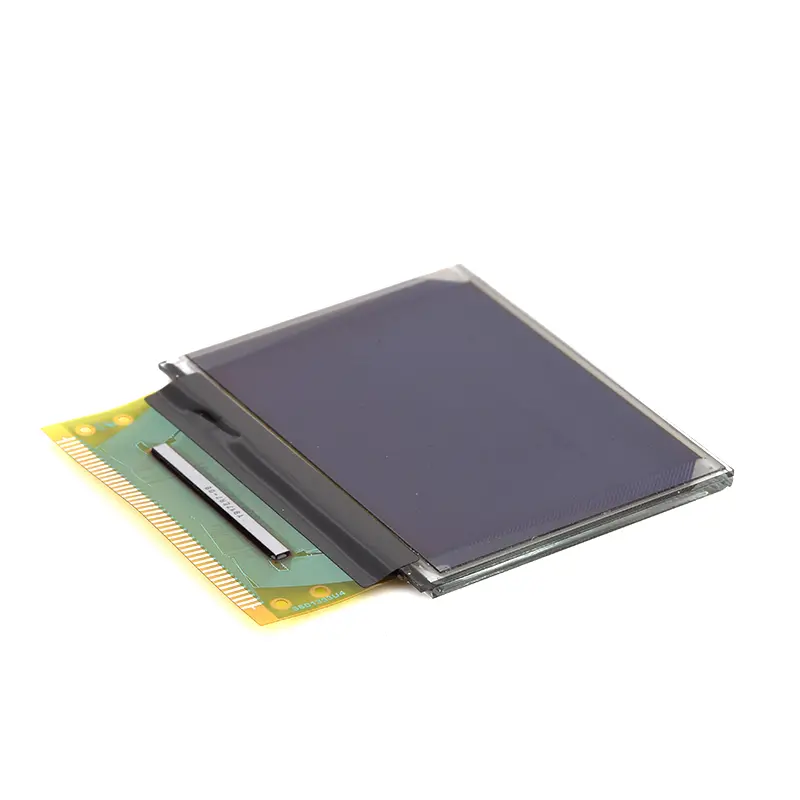

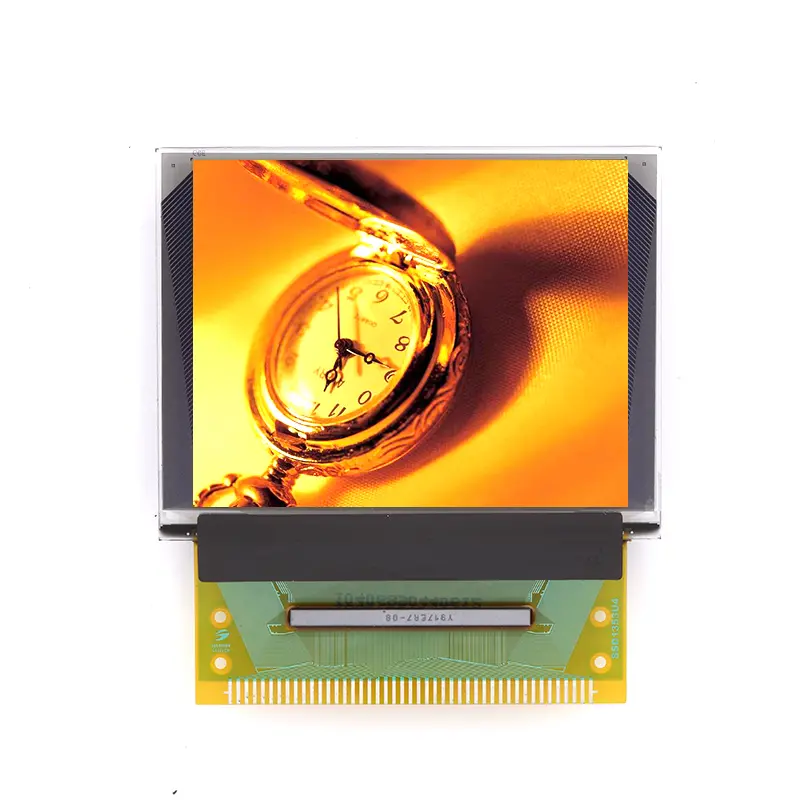

1.8 inch 160×128 IPS PMOLED display front view

color oled modulecolor oled modulecolor oled module

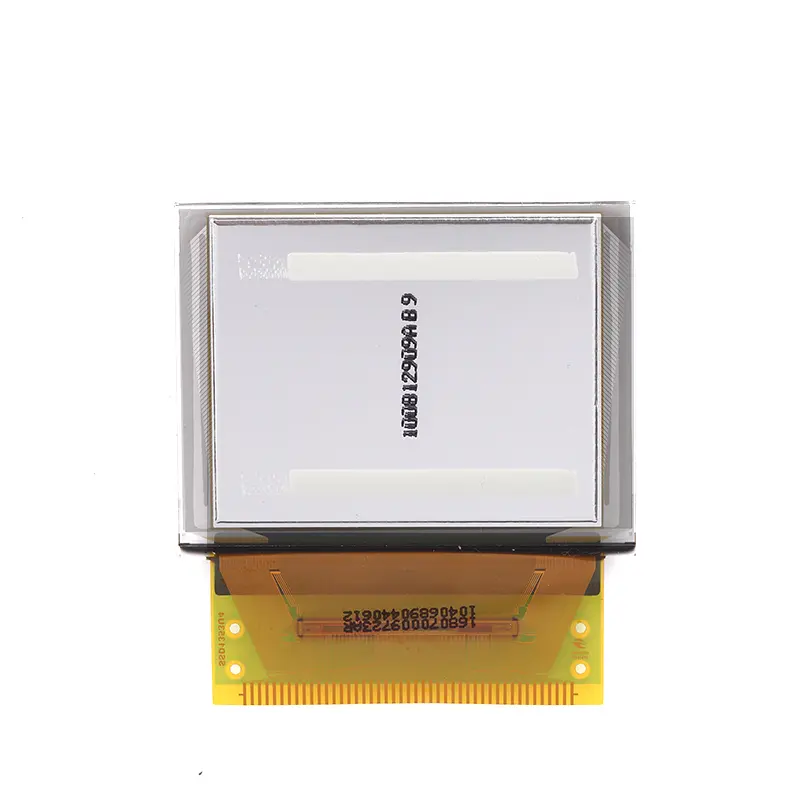

1.8 inch 160×128 IPS PMOLED display back view

color oled module

1.8 inch wide work temp PMOLED display Machine Drawing
