480×1120 mipi 4.82 inch ips lcm bar

Item4.82” bary type 480*1120 MIPI display
Model NoPV04801TS24B
Resolution480×1120
Outline Dimension51.26 (H)*122.12(V)*1.9(T)
Active Area(mm)47.95 (H) *112.56(V) (4.8 inch )
InterfaceMIPI DSI
Viewing AngleFree Viewing
Driving ICHX8389C
Display ModeNormally Black
Operating Temperature-10~+50
Storage Temperature-40~+60
Brightness280nist
Touch screencapacitive touch panel

For product pricing,customization,or other inquiries:

Share to:

4.82 inch high definition 480×1120 IPS MIPI bar type LCD display

1. PV04801TS24B mainly application for Industrial, medical equipment.
2. It with IPS /All/ Full/ Free viewing angle, high definition 480×1120 resolution, MIPI interface, 280 nits brightness, HX8389C IC, existing capacitive touch panel
3. It also can support resisitve / capacitive touch screen or custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ,medical application.

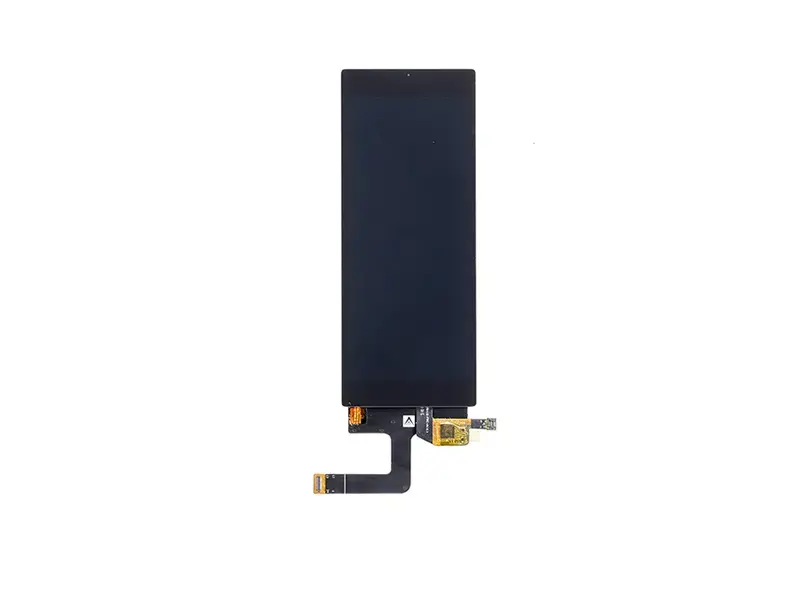

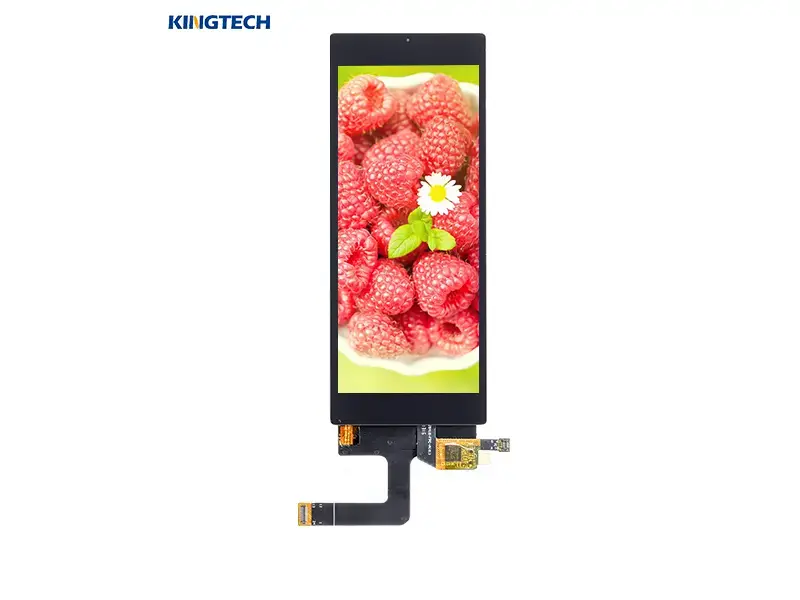

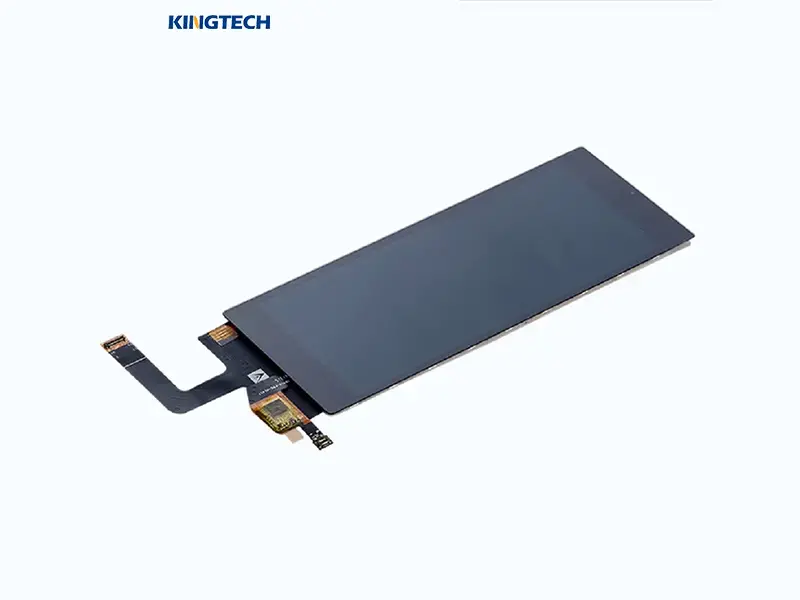

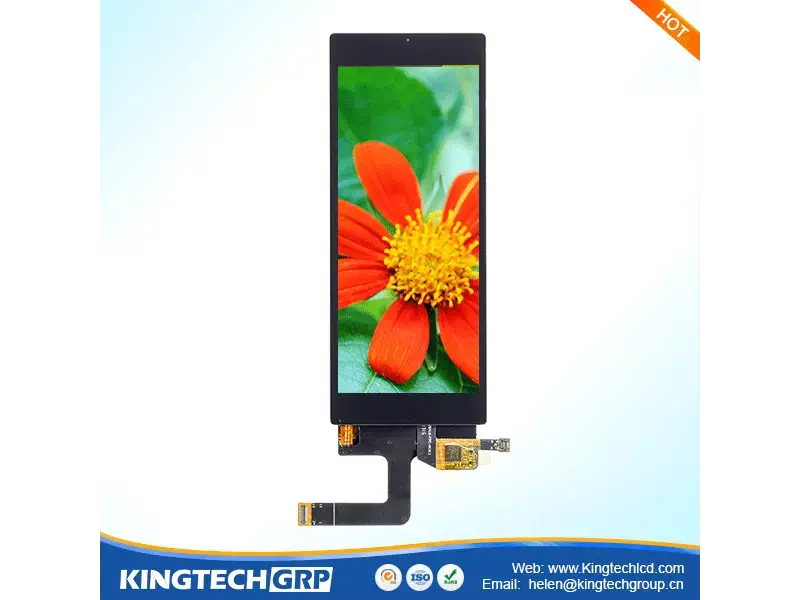

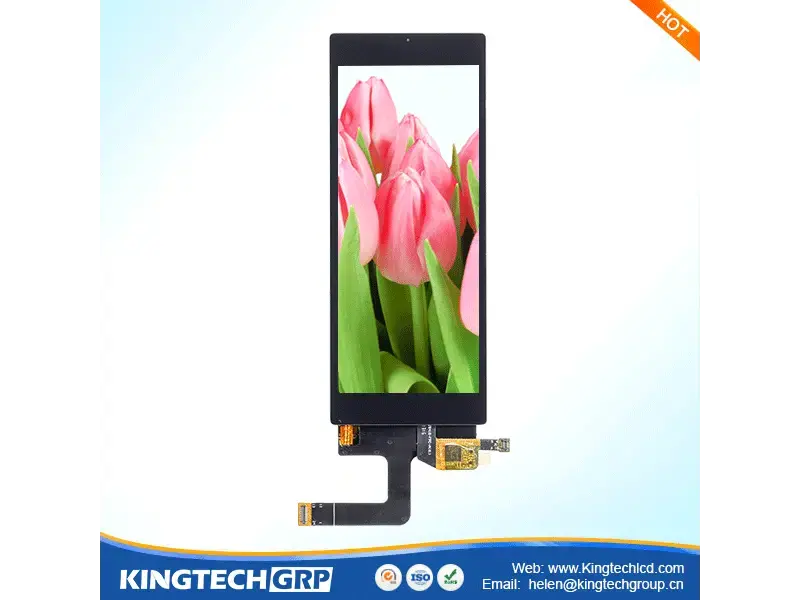

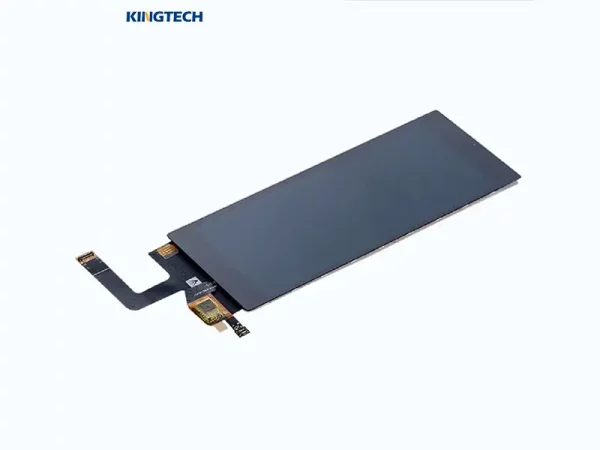

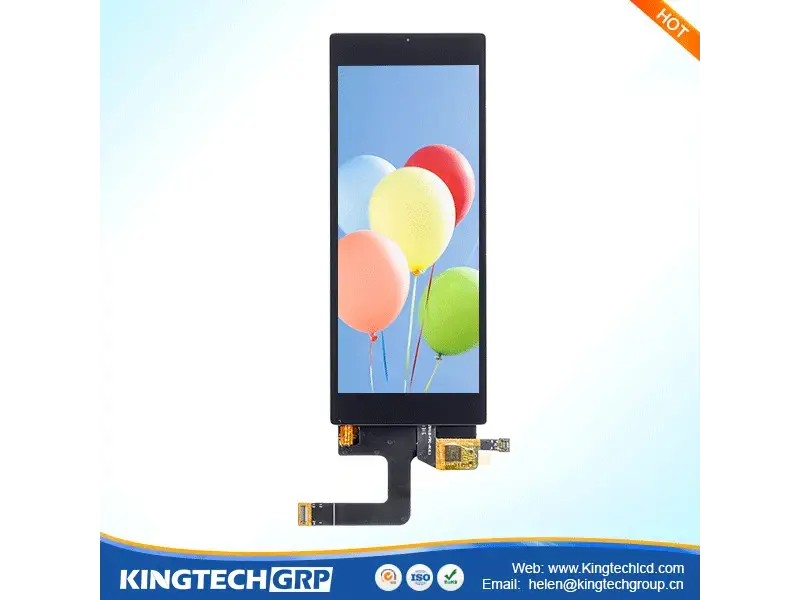

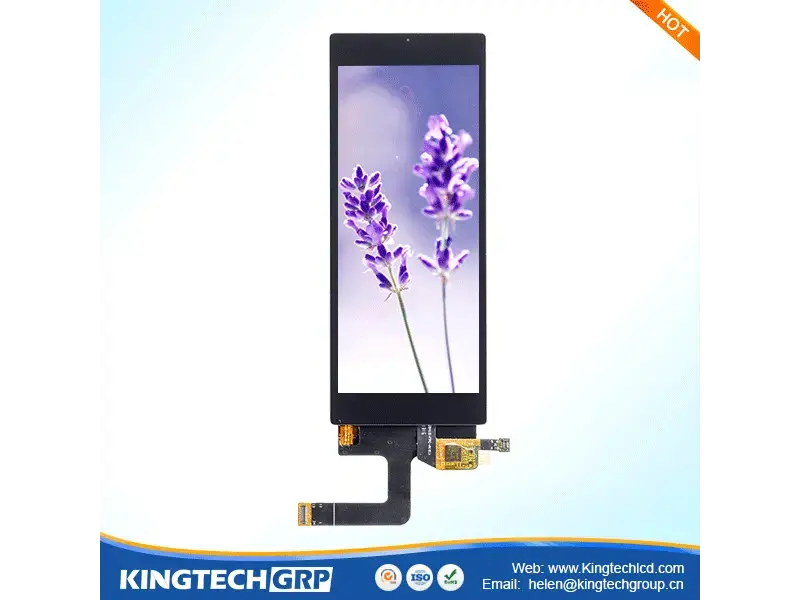

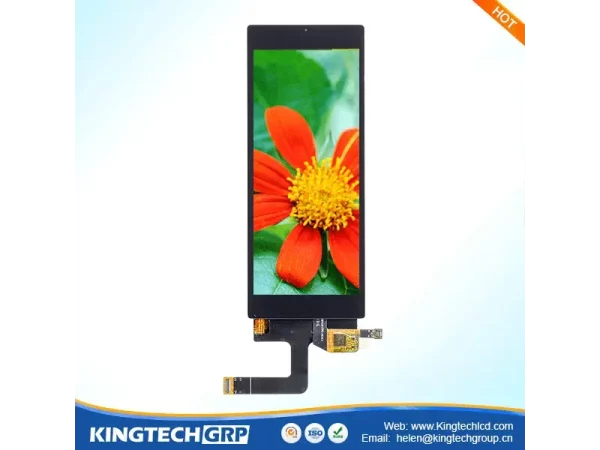

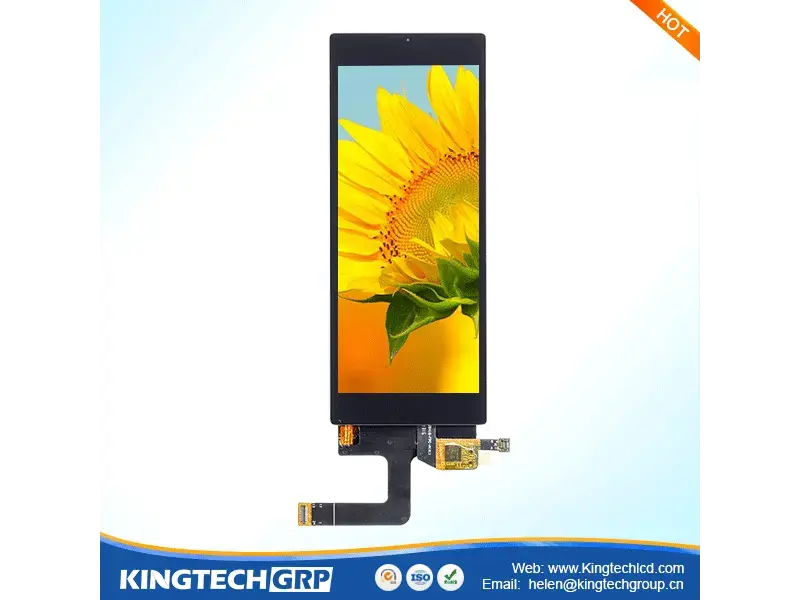

4.82 inch 480×1120 IPS bar display front view

stretched lcd displaystretched lcd displaystretched lcd display

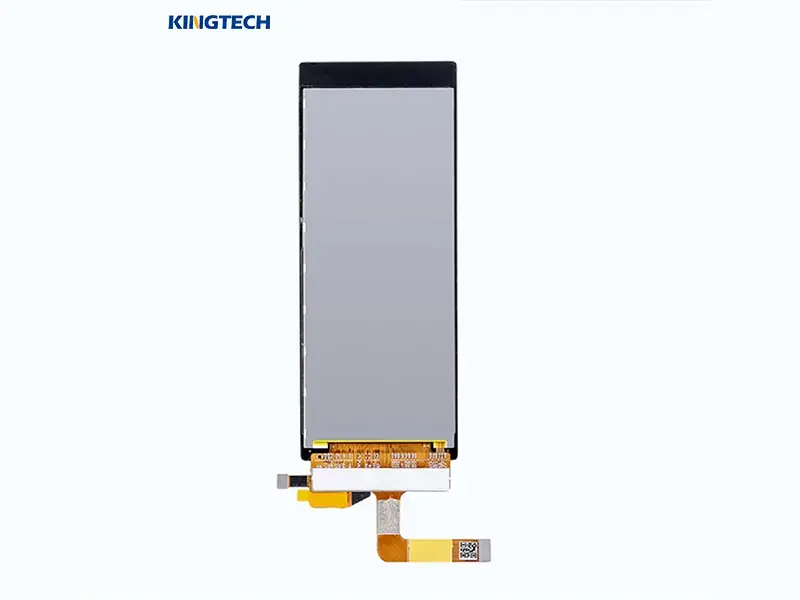

4.82 inch 480×1120 IPS bar display back view

stretched lcd display

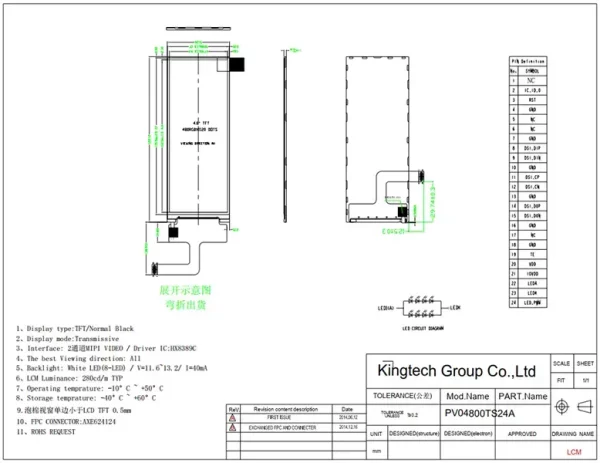

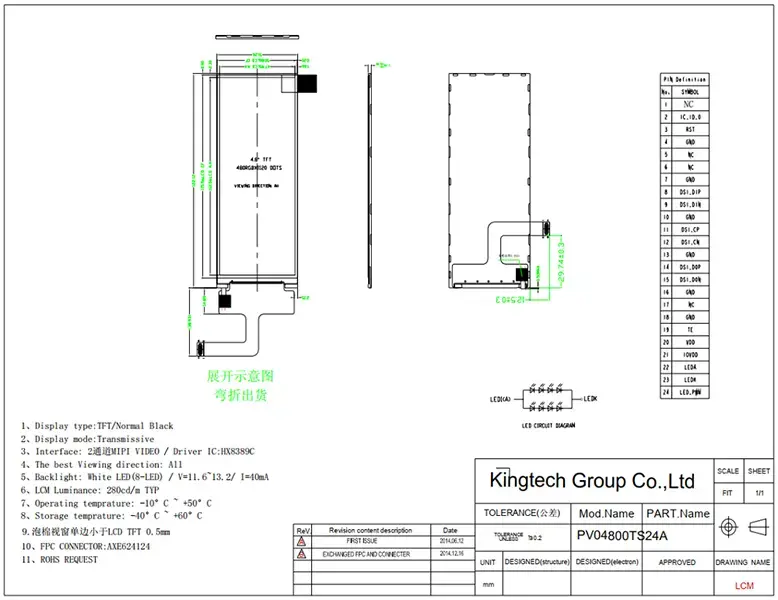

4.82 inch 480×1120 IPS bar display Machine Drawing4.82-PV04800TS24A

New Tab content 3

4.82-PV04800TS24A
