5.5 inch 720×1280 resolution MIPI interface IPS portrati LCD display

Item5.5inch 720×1280 IPS display
Model NoPV05505TD39C-C
Resolution720×1280
Outline Dimension144.4(W)x79(H)x2.84(T)
Active Area(mm)68.04(H)x120.96(V)
InterfaceMIPI-4Lanes
Viewing AngleAll
Driving ICST7703
Display ModeTFT/TRANSMISSIVE
Operating Temperature-20 to +70℃
Storage Temperature-30 to +80℃
Brightness390nits
Touch screenResistive and capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

5.5 inch 720×1280 resolution MIPI interface IPS portrati LCD display
1.PV05505TD39C-C mainly application for  Industrial ,medical equipment .
2.It with 720×1280 resolution , 390nits high brightness , mipi interface , existing capacitive touch panel .
3.It also can custom touch panel as customer ‘s requirement .
4.It is A grade product , the good quality well use for Industrial ,medical application .

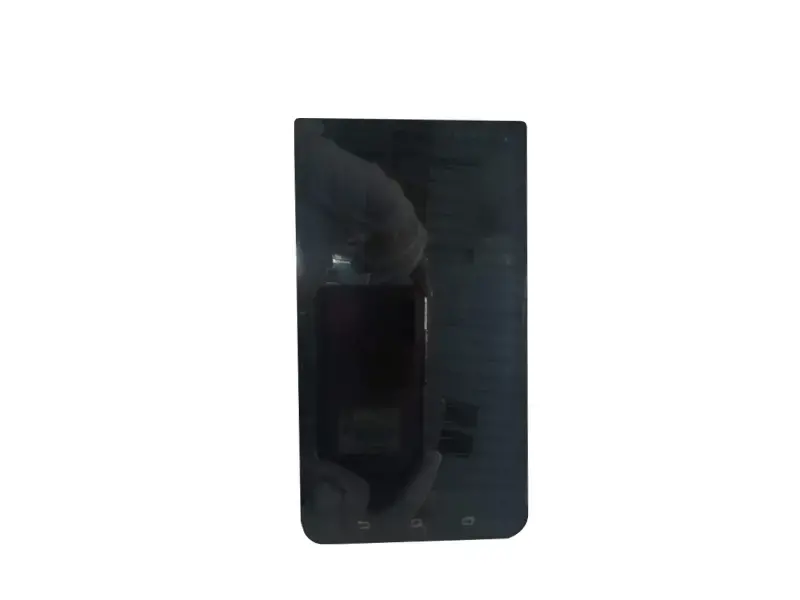

MIPI interface 5.5inch 720×1280 IPS display Front view

PV05505TD39C-C

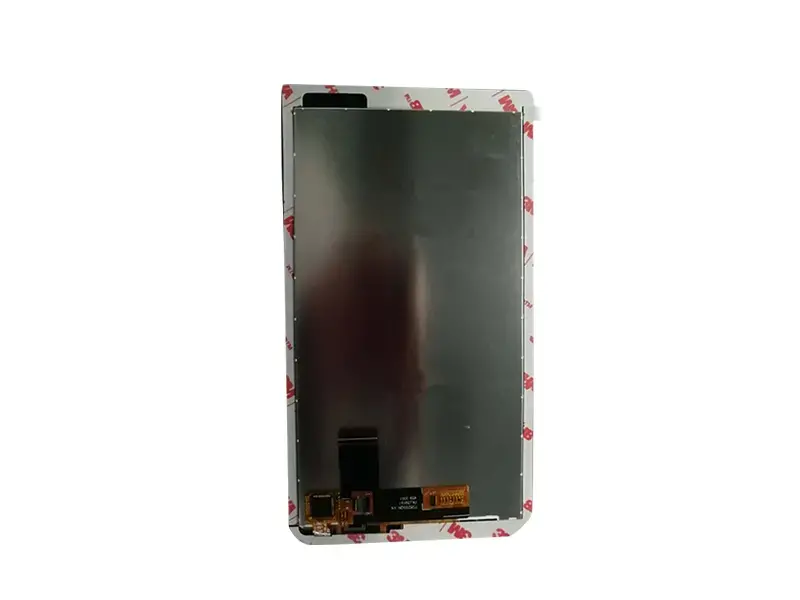

MIPI interface 5.5inch 720×1280 IPS display Back view

PV05505TD39C-C

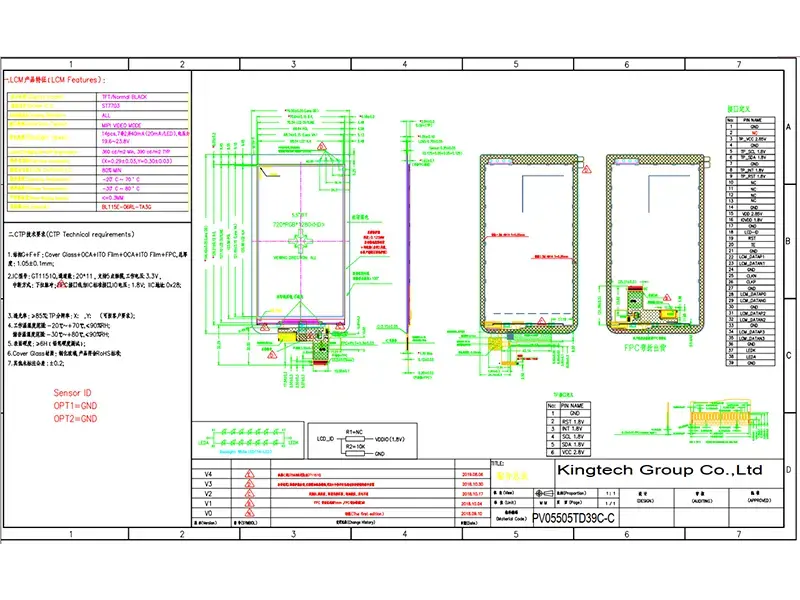

5.5inch 720×1280 IPS display Machine drawing
