5.7 inch 640×480 VGA resolution 700nits sunlight readable lcd display

Item5.7” 640×480 TFT LCD Display
Model NoPV05701YP40B
Resolution640×480
Outline Dimension127.00(W)x98.43(H)x5.80(T)
Active Area(mm)115.20(W)x86.40(H)
Interface18-BIT RGB
Viewing Angle6 O’clock
Driving ICHX8250-A+HX8678-B
Operating Temperature-20 to +70℃
Storage Temperature-30 to +80℃
Brightness700nits
Touch screenResistive and capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

5.7 inch 640×480 VGA resolution 700nits sunlight readable LCD display
1.PV05701YP40B is mainly applied for  Industrial, medical equipment.
2. It has 640×480 resolution, 700nits high brightness, RGB interface, existing resistive touch panel.
3. It also can custom touch panels as per customer’s requirement.
4. It is an A-grade product, a good quality well used for Industrial, and medical applications.

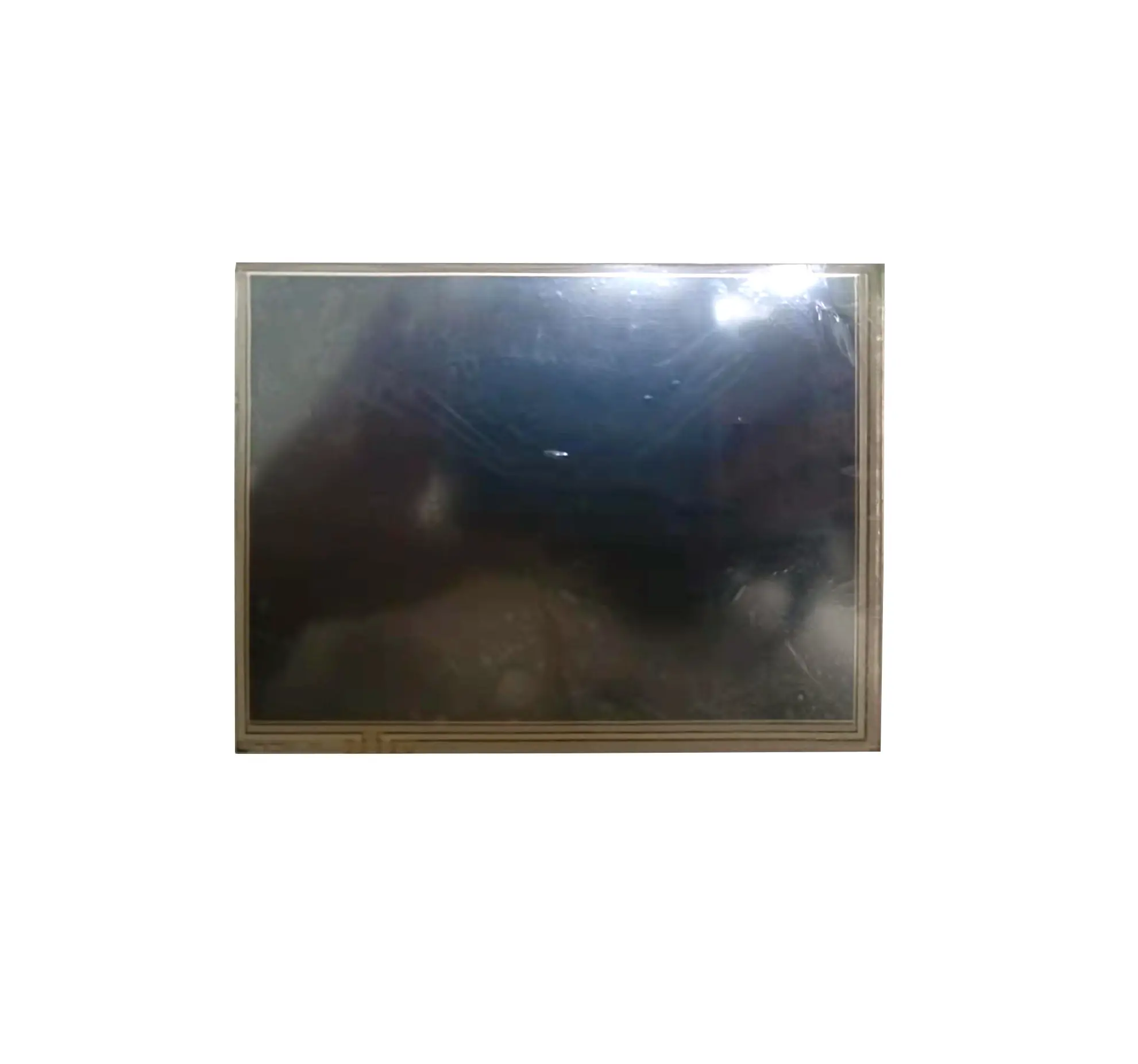

5.7” 640×480 TFT LCD Display Front view

5.7 inch display front

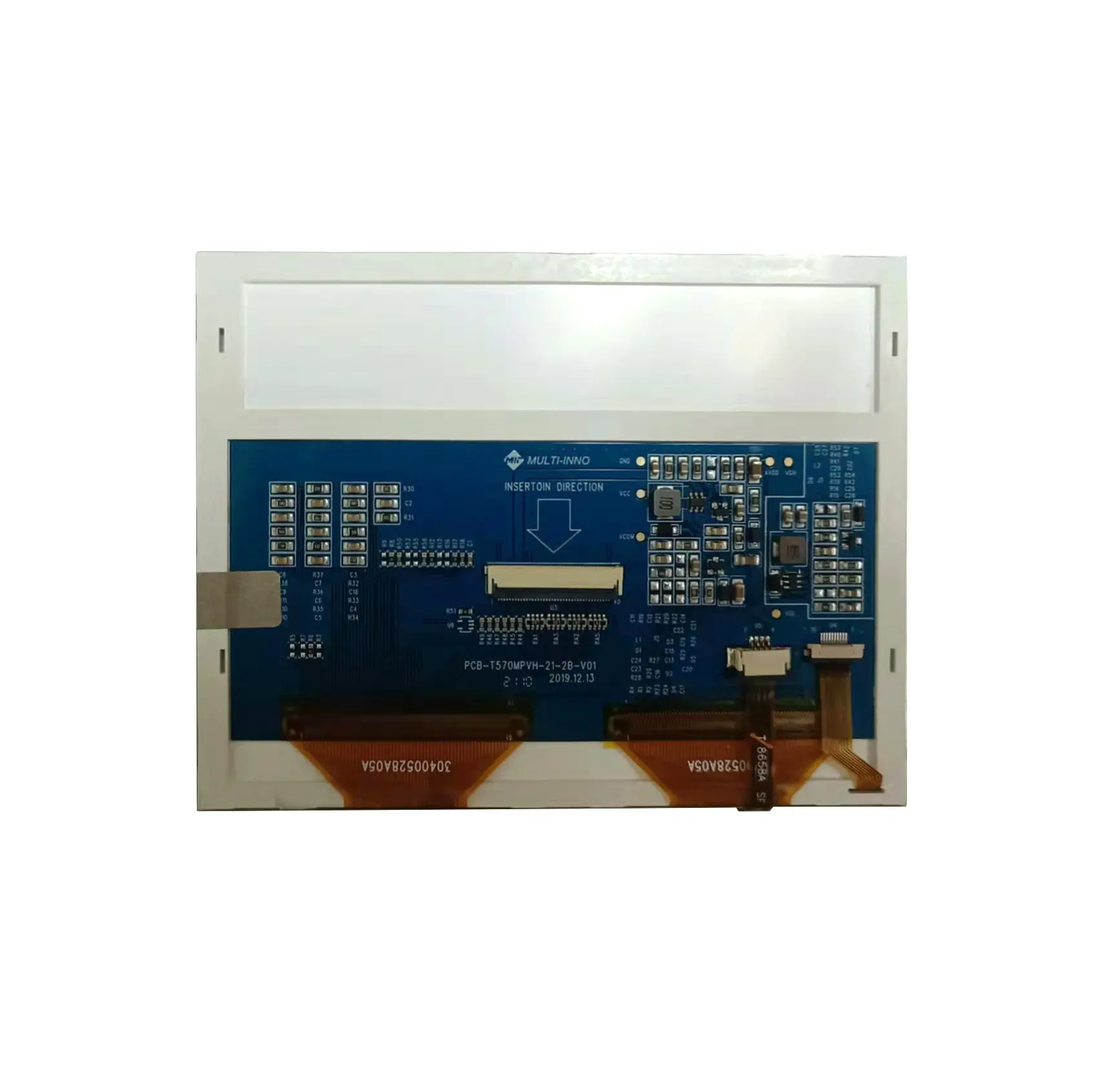

5.7” 640×480 TFT LCD Display back view

5.7 inch back
