Item | 3.5 inch 320×240 IPS TFT LCD |
Model No | PV03503LZR54D-V01 |
Resolution | 320×240 |
Outline Dimension | 76.70(W)×63.70(H)×3.26(T) |
Active Area(mm) | 70.08(W)×52.56(H) |
Interface | 24-bit RGB interface |
Viewing Angle | Full viewing angle / IPS |
Driving IC | ST7272 |
Display Mode | TFT/TRANSMISSIVE |
Operating Temperature | -20 to +70℃ |
Storage Temperature | -30 to +80℃ |
Brightness | 500nits |
Touch screen | Resistive and capacitive touch screen |
3.5 inch 320×240 resolution RGB interface LCD
1.PV03503LZR54D-V01 mainly application for handheld device
2.It with 320×240 resolution , 24-bit RGB interface, ST7272 Driver IC, 250nits brightness.
3.And it can custom capacitive and resistive touch panel as customer ‘s requirement;
4.It is A grade product , the good quality well use for Industrial ,medical application.

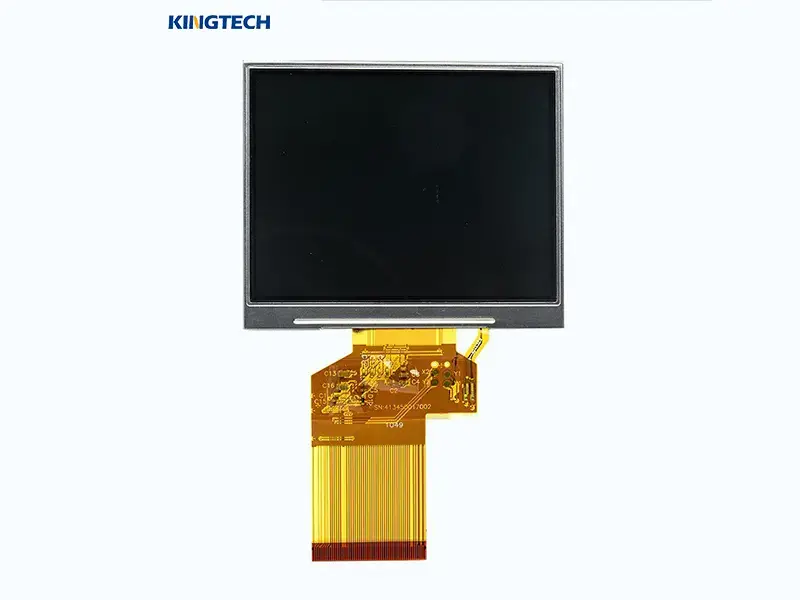

3.5 inch 3.5 inch 480×272 resolution RGB interface display Front view.

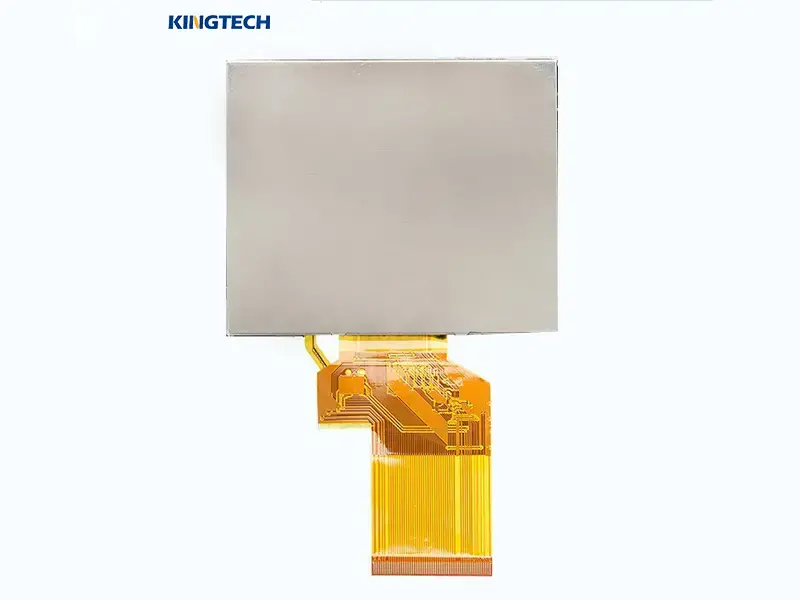

3.5 inch 3.5 inch 480×272 resolution RGB interface display Back view.
