7 inch 1024×600 LVDS interface TFT LCD display

Item7.0 inch 1024×600 TFT module display
Model NoPV07006LZR40E
Resolution1024×600
Outline Dimension164.90(W)*100.00(H)*5.5(T)
Active Area(mm)154.21(W)*85.92(H)
InterfaceLVDS
Viewing Angle12 O’clock
LED life50000h
Display ModeTransmission / Normally White
Operating Temperature-20℃~70℃
Storage Temperature-30℃~80℃
Brightness500nits / 1000nits
Touch screenResistive and capacitive touch screen
BoardHDMI board

For product pricing,customization,or other inquiries:

Share to:

7 inch 1024×600 LVDS interface high brightness LCD display



1.PV07006LZR40E mainly application for  Industrial ,medical equipment ,sunlight readable outdoor device.
2. It with 12 O’clock viewing angle, 1024×600 resolution , 500nits/100nit brightness , LVDS interface , existing HDMI board to to support Raspberry PI.
3. It also can support resisitve / capacitive touch screen or custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ,medical application.

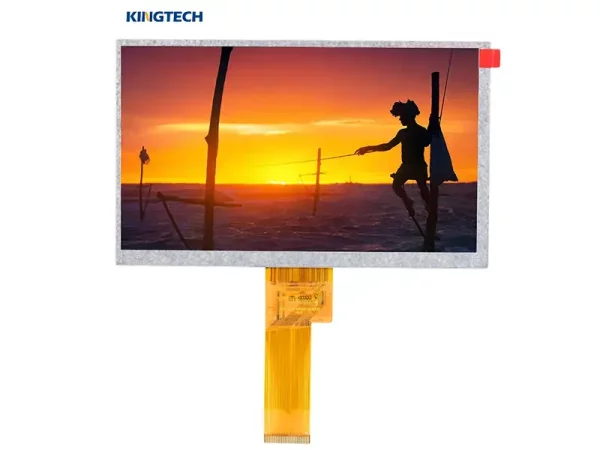

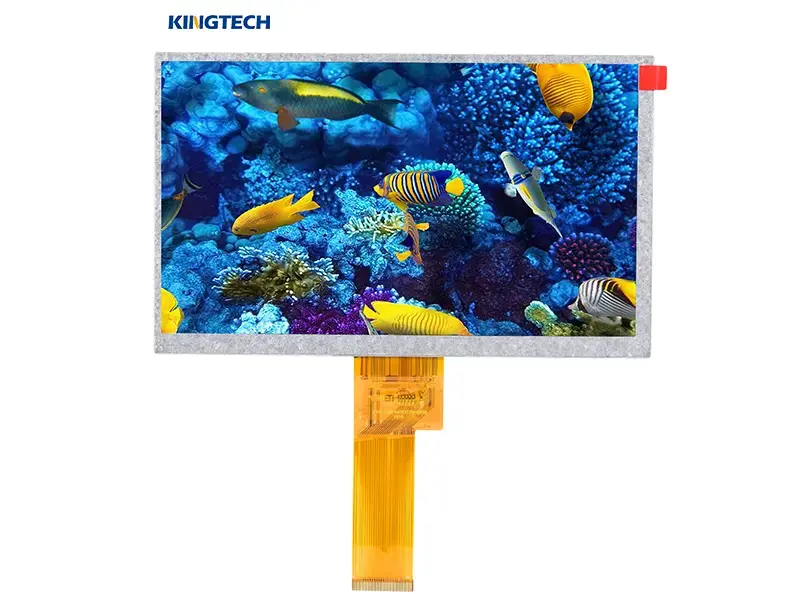

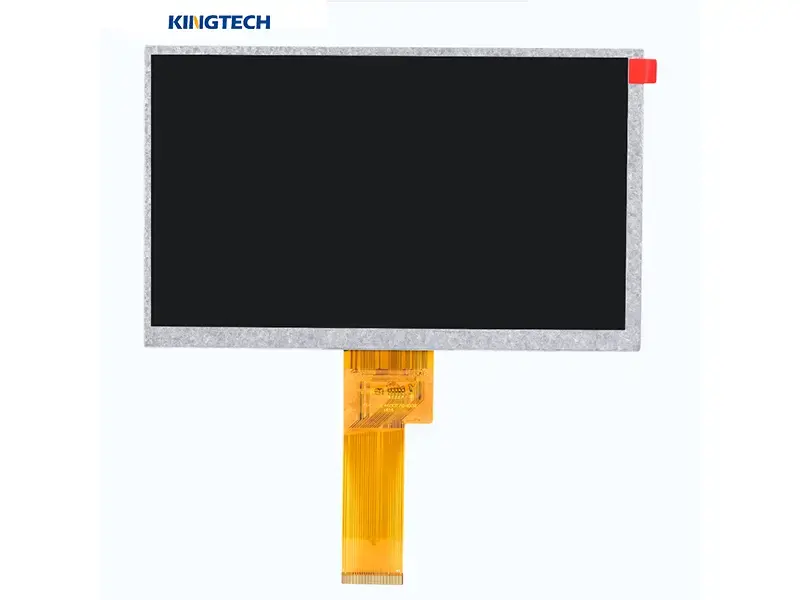

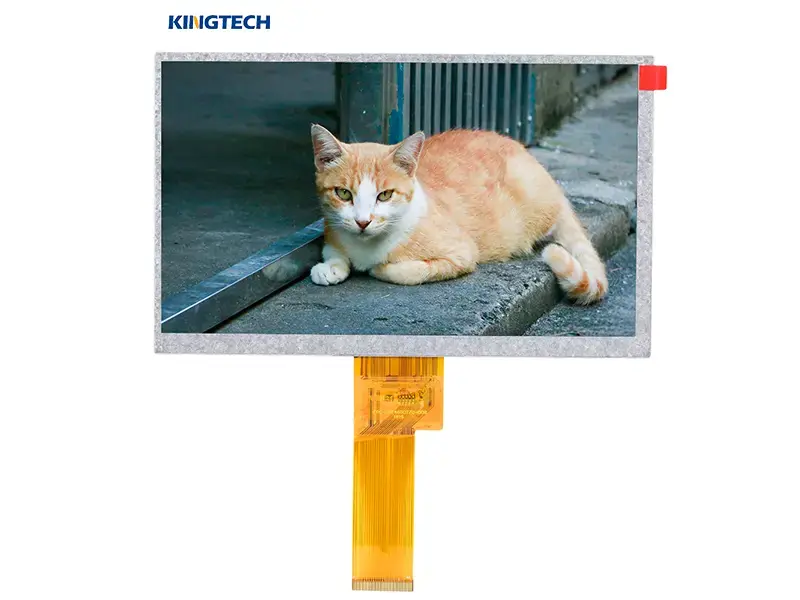

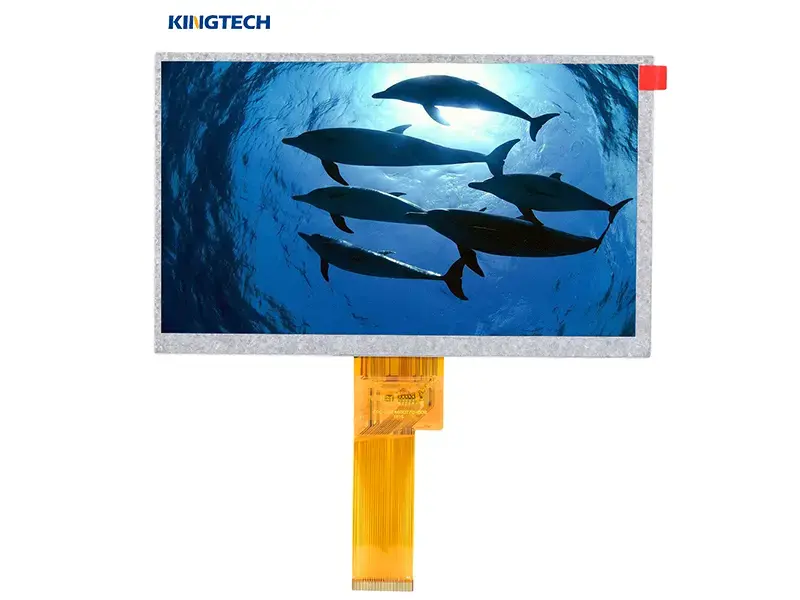

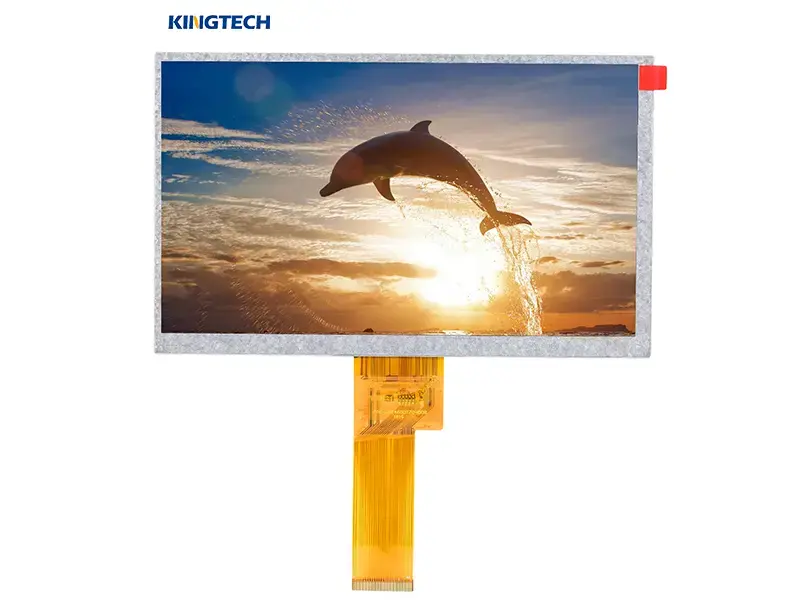

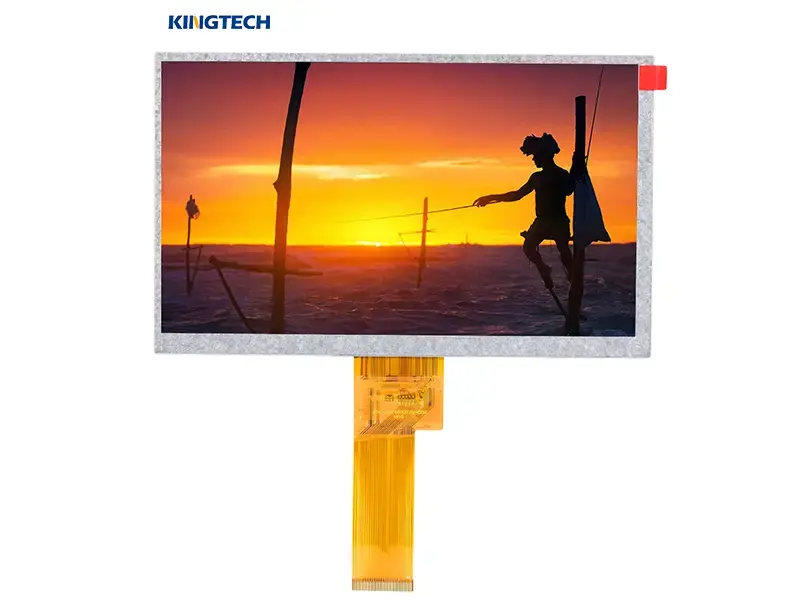

7 inch 1024×600 LVDS interface LCD display front view

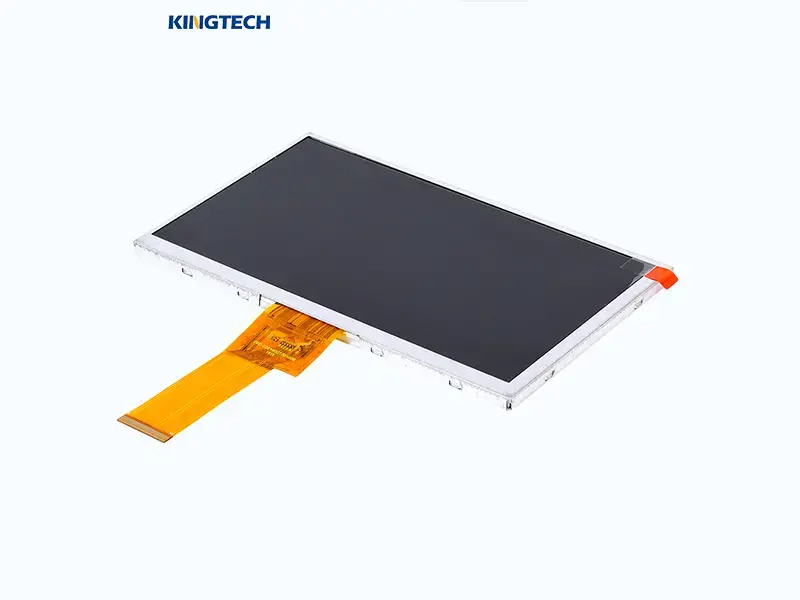

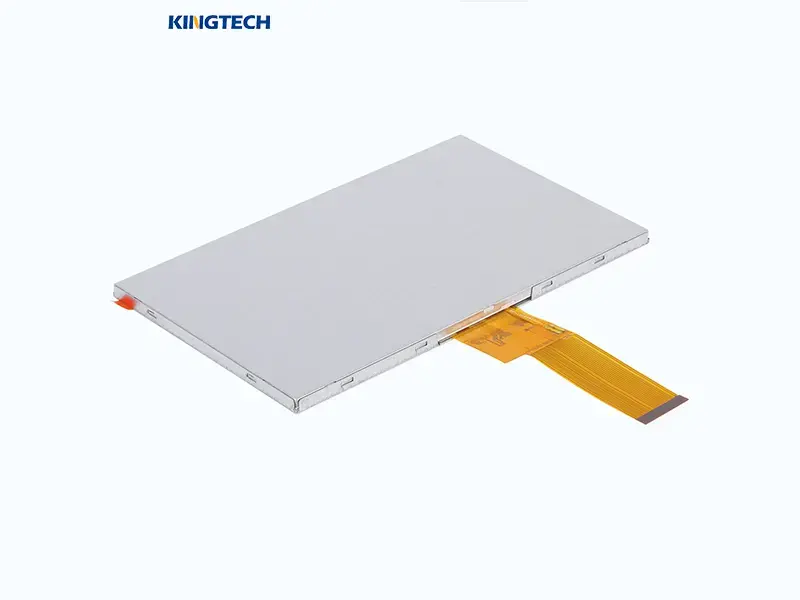

7 inch 1024×600 LVDS interface LCD display back view

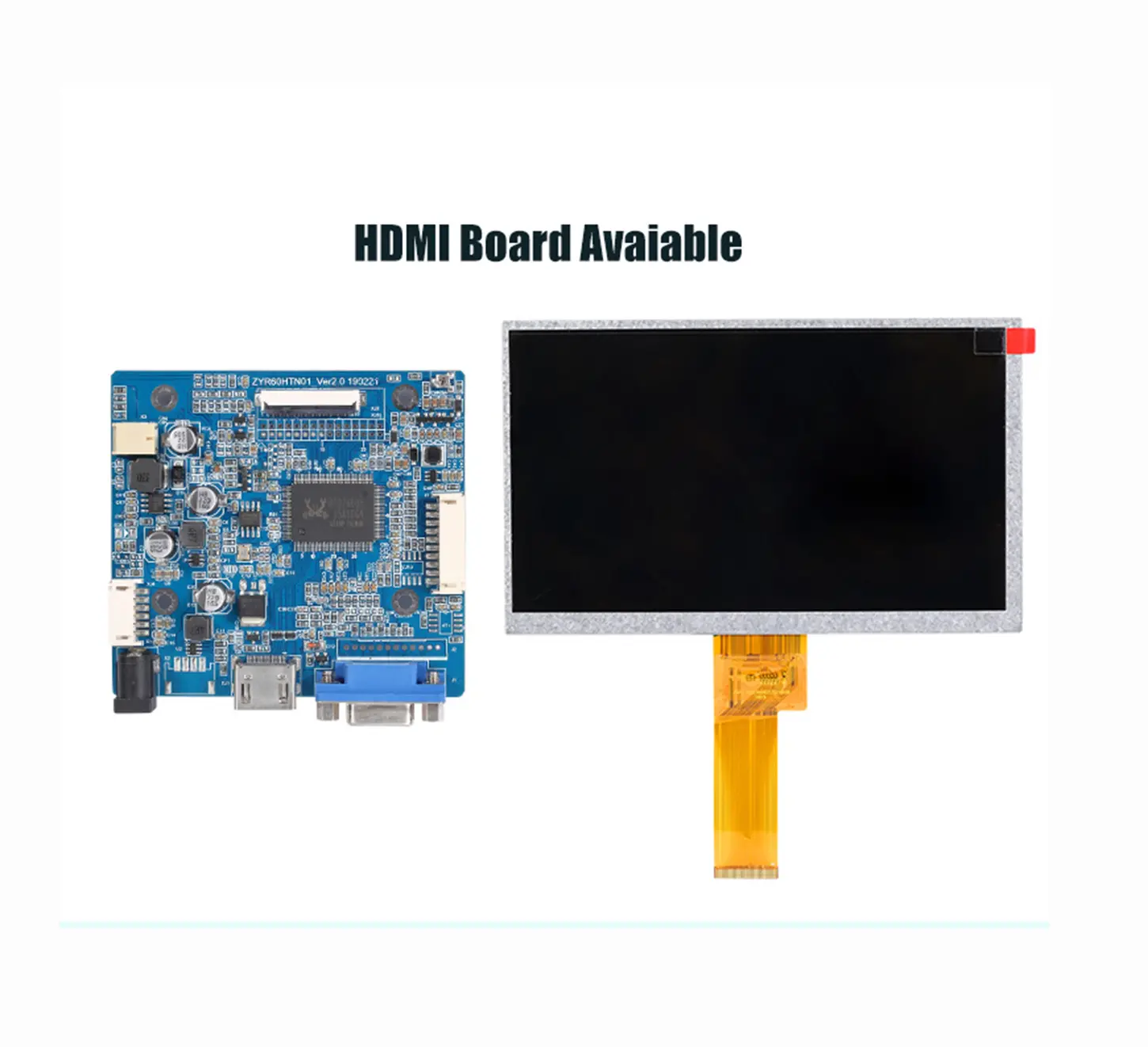

7 inch 1024×600 LVDS interface LCD display with HDMI board7 inch 1024x600 LVDS interface TFT LCD display

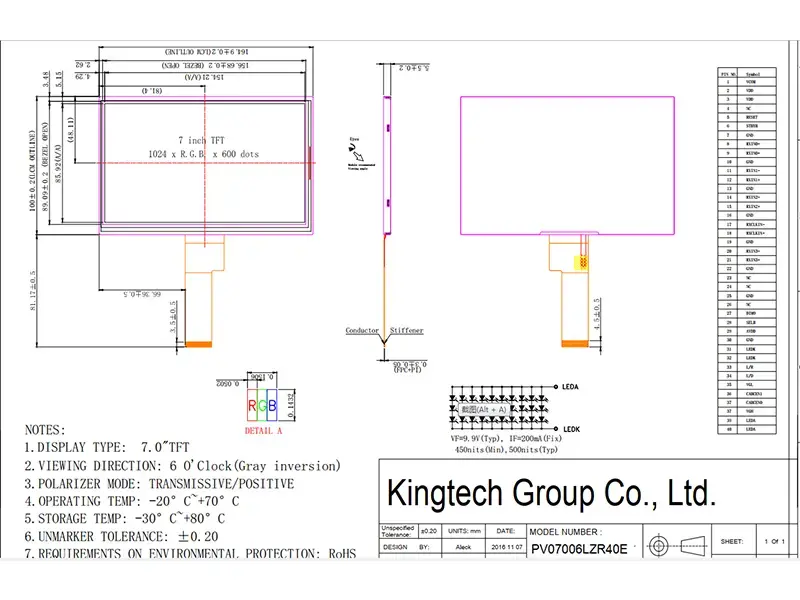

7 inch 1024×600 LVDS interface LCD display Machine Drawing7 inch 1024x600 LVDS interface TFT LCD display
