7 inch 800×480 resolution RGB interface TFT LCD with capacitive touch

Item7inch 800×480 50pin water proof capacitive touch screen
Model NoPV07017LZR50S-C
Resolution800×480
Outline Dimension164.9(W)×100(H)×7.8(T)
Active Area(mm)154.08(W)×85.92(H)
Brightness400nits
Viewing Angle12 o’clock
Interface24-bit Parallel RGB Interface
PIN50
Operating Temperature-20 to +70℃
Storage Temperature-30 to +80℃
TouchCapacitive touch screen
Touch ICHY4633

For product pricing,customization,or other inquiries:

Share to:

7 inch 800×480 WVGA RGB interface IPS LCD with resistive touch

1. PV07017LZR50S-C mainly application for Industrial ,medical equipment or outdoor device.
2. It with 800×480 resolution, 24-bit Parallel RGB Interface, 240nits and 400nit brightness, HY4633 driver IC, existing capacitive touch.
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ,medical application.

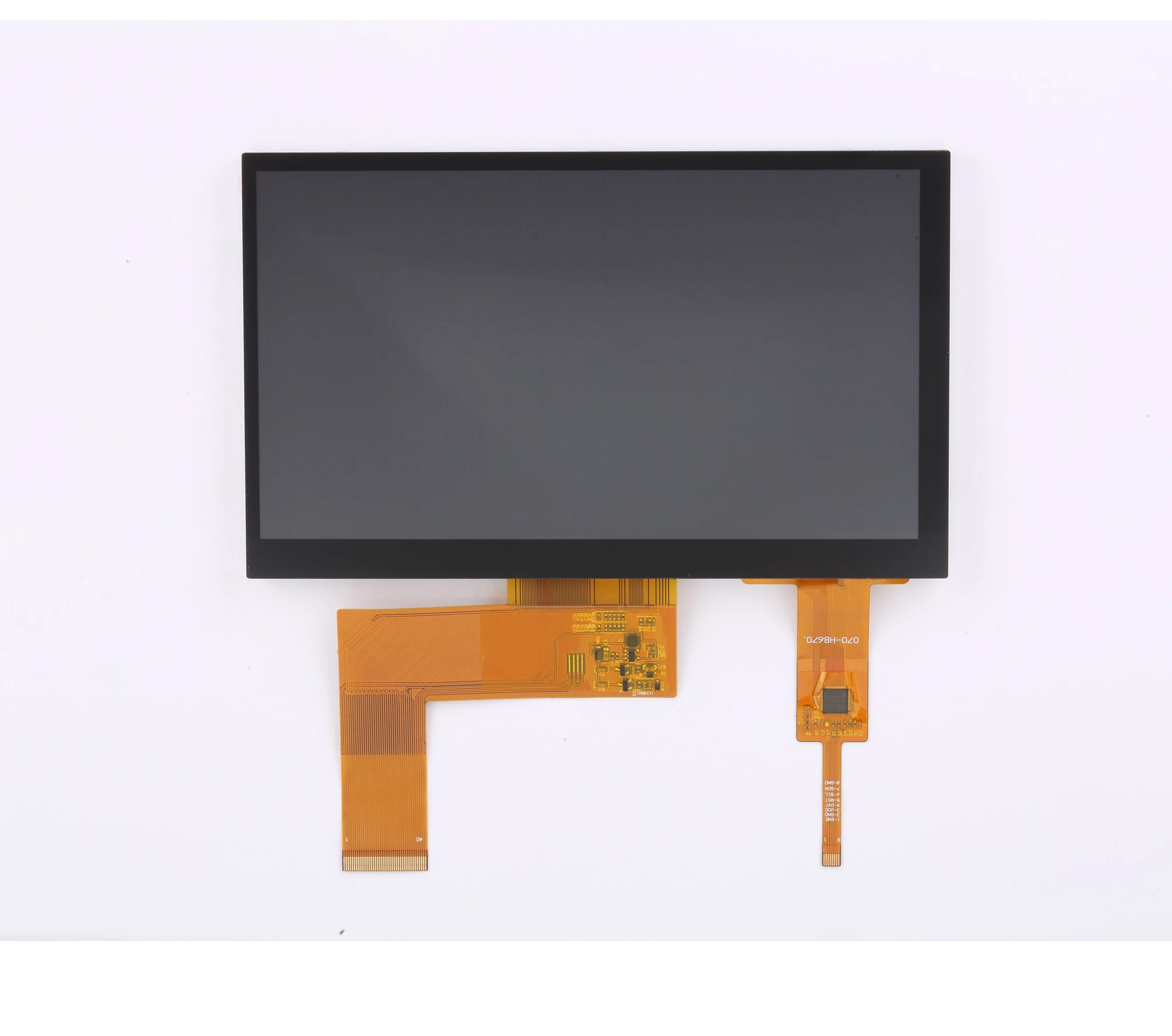

7 inch 800×480 touch LCD display fornt view

PV07002LZR40B-CT front

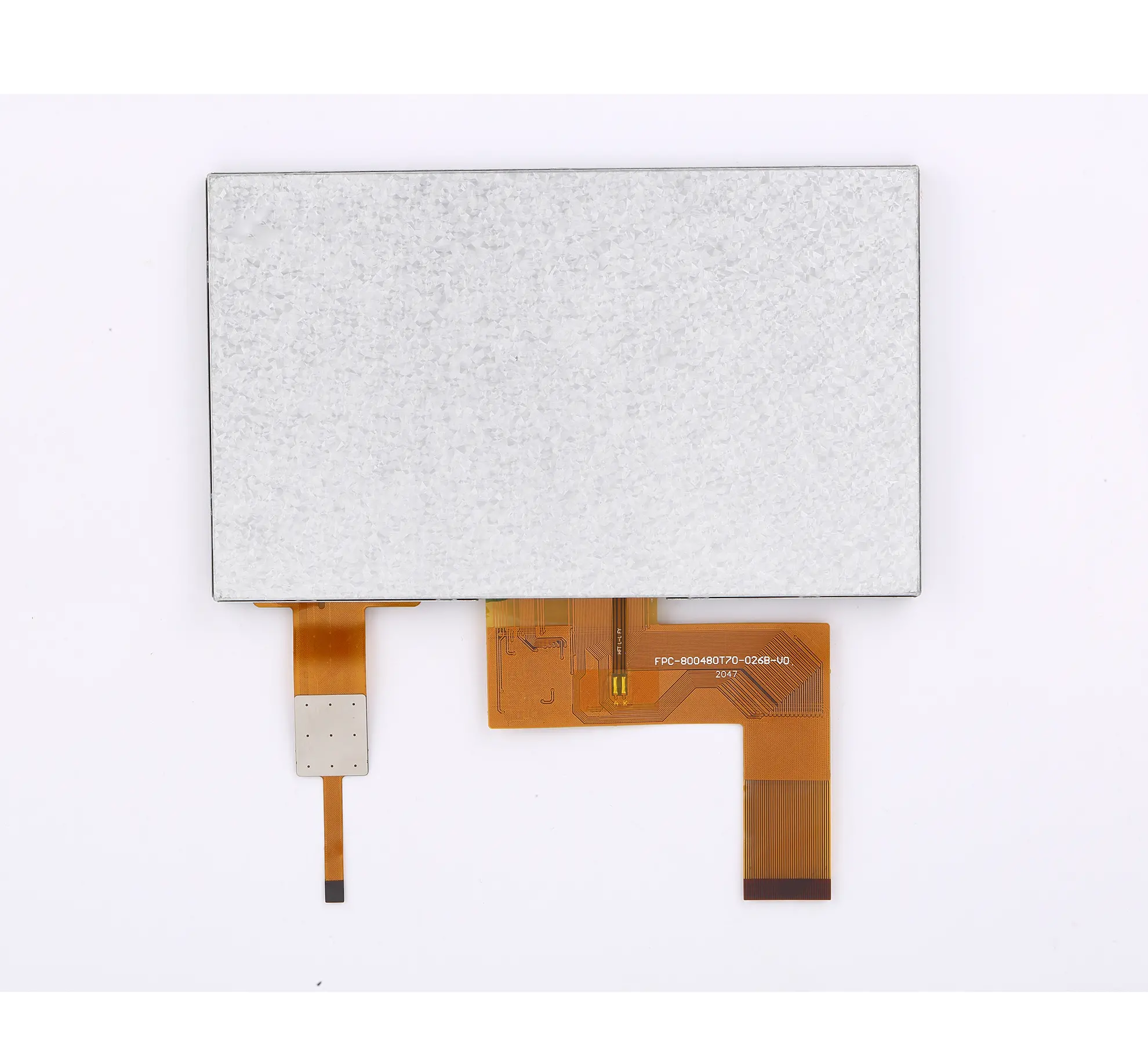

7 inch 800×480 capacitive touch display back view

back

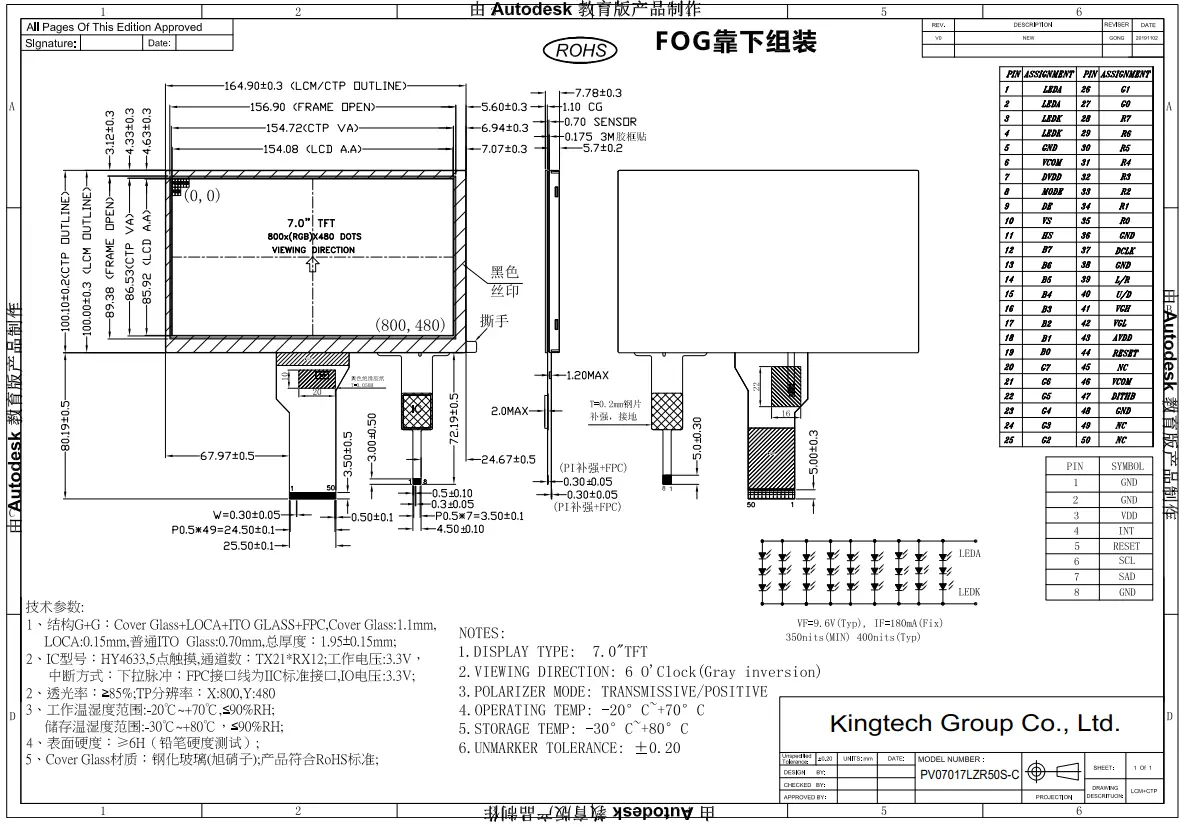

7” RGB display with capacitive touch panel Machine Drawing

机械图
