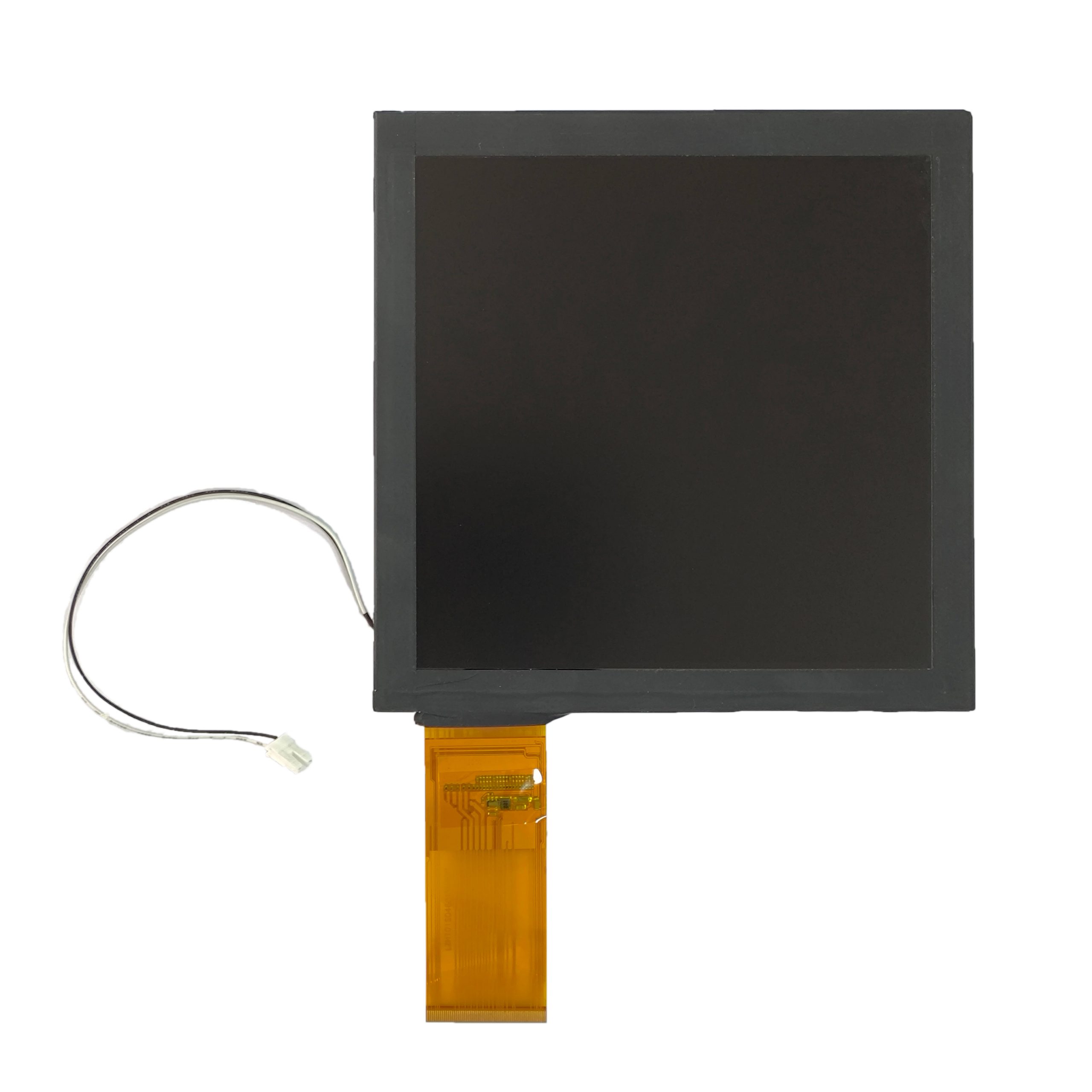

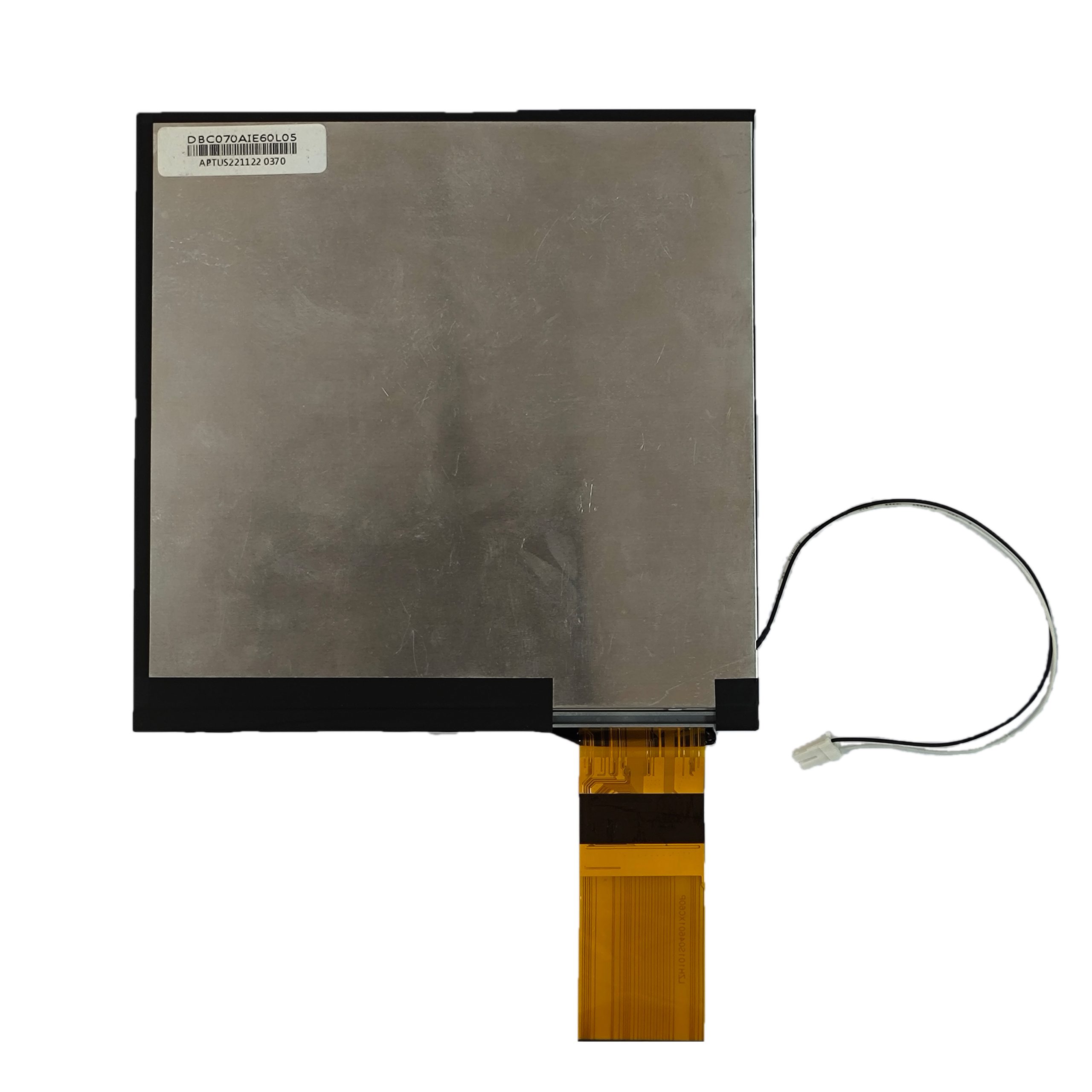

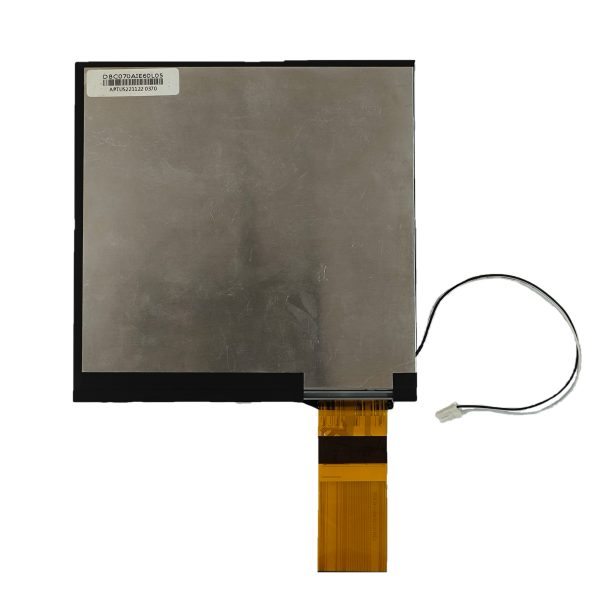

8.8 inch 768*768 TFT display

Item8.8inch IPS 768×768 TFT LCD display
Model No.PV08804P0160E
Resolution768*768
Outline Dimension (mm)179.4*179.6*11.85
Active Area (mm)158.4*158.4
Viewing AngleAll
Brightness1000nits
InterfaceLVDS
Backlight6*5LED
Driving IC/
PIN No.60
Operating Temperature-20~70
Storage Temperature-30~80
Touch screenCan custom resistive and capacitive touch screen
ApplicationE-Bike, Medical, hand-held device, industrial,

For product pricing,customization,or other inquiries:

Share to:

  1. 8.8 inchTFTdisplay
  2. 768*768
  3. Stable supply
  4. All/Wide/Full viewing angle
  5. LVDSinterface
  6. 1000nits brightness/Sunlight readable/High brightness
  7. Can custom resistive touch and capacitive touch
  8. Medical, hand-held device, industrial
