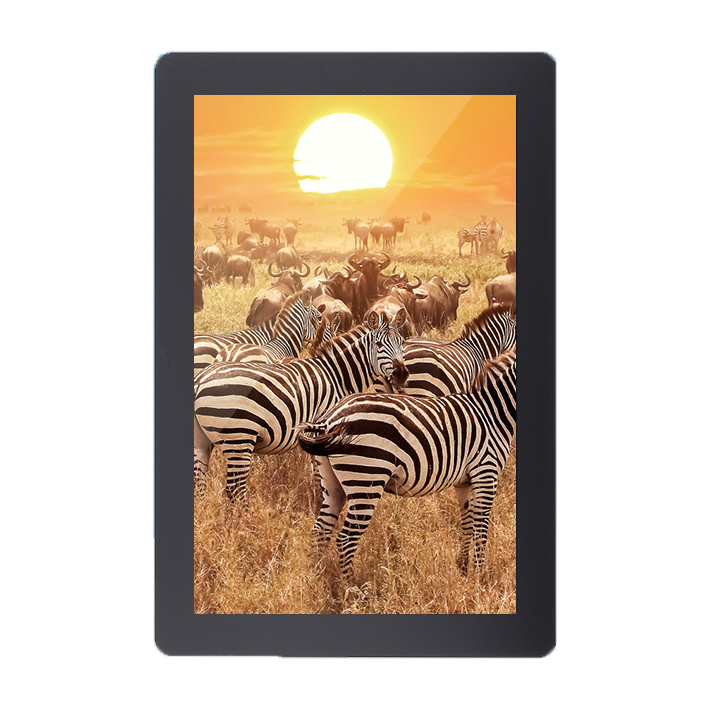

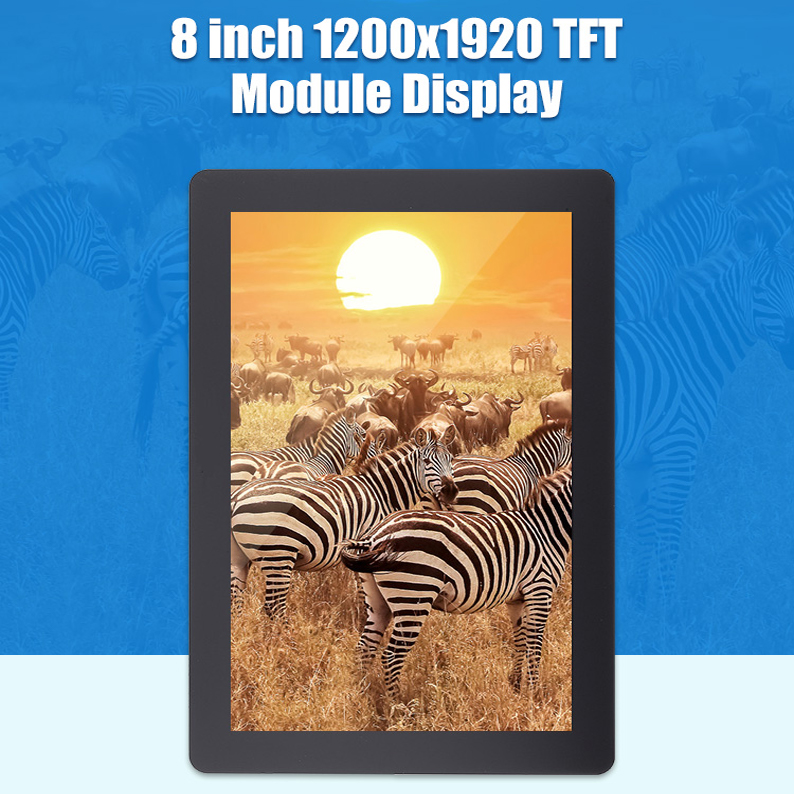

8inch 1200×1920 high brightness TFT LCD display
| Item | 8.0 inch IPS 1200*1920 high brightness LCD module |
| Model No. | PV0800I8Z05 |
| Resolution | 1200*1920 |
| Outline Dimension (mm) | 121.24*185.10*4.8 |
| Active Area (mm) | 107.64*172.22 |
| Viewing Angle | All |
| Brightness | 2000nits |
| Interface | 4-Lane MIPI |
| Backlight | 4*8LED |
| Driving IC | HX8279 |
| PIN No. | 60 |
| Operating Temperature | -0~50C |
| Storage Temperature | -20~60C |
| Touch screen | Capacitive touch optional |
| Application | Medical, hand-held device, industrial, outdoor, advertising, E-bike, meter, vehicle, HMI, POS terminal, thermostat, elevator, video door, consumer electronics, charging piles/engineering vehicles/ships, automotive and 3D printer. |
For product pricing,customization,or other inquiries:
Share to:
- Ultra high brightness 2000nits.
- Portrait, Vertical
- Sunlight readable/Outdoor/High brightness
- Capacitive touch screen
