Wvga 800×480 original 40 pin 7 inch ips lcd screen

Item7 inch 800*480 TFT module display
Model NoPV07024LZR50Z
Resolution800×480
Outline Dimension164.9(W)×100(H)×5.7(T)
Active Area(mm)154.08(W)×85.92(H)
Interface24-bit Parallel RGB Interface
Viewing Angle12 O’clock
Display ModeTFT/TRANSMISSIVE
Operating Temperature-20 to +70℃
Storage Temperature-30 to +80℃
Brightness1000nits
Touch screenResistive and capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

7 inch 800×480 resolution 1000nits sunlight readable LCD display
1.PV07024LZR50Z mainly application for Industrial ,medical equipment or outdoor device.
2.It with 800×480 resolution , 1000nit brightness ,RGB interface .
3.It also can custom touch panel as customer ‘s requirement .
4.It is A grade product , the good quality well use for Industrial ,medical application .

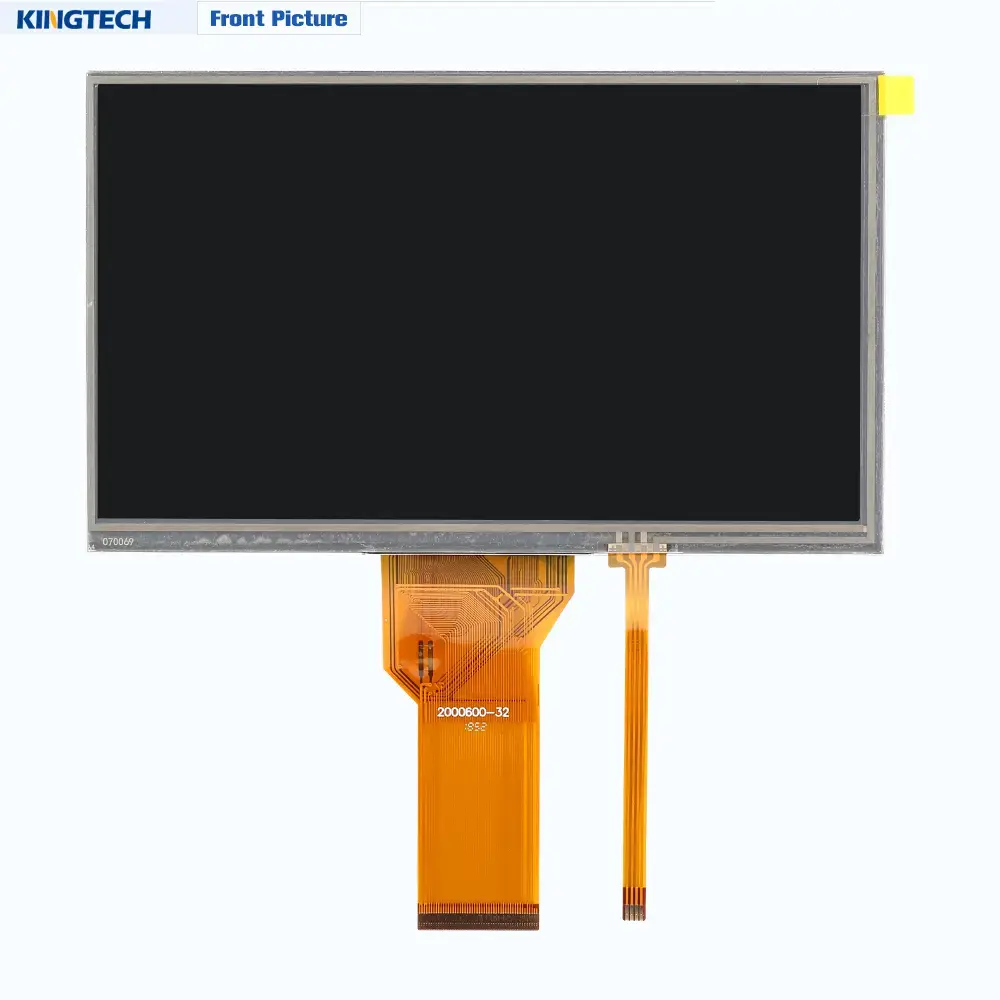

1000nits high brihtness 7 inch lcd display Front view :



sunlight readable 7.0 inch 800*480 TFT module display

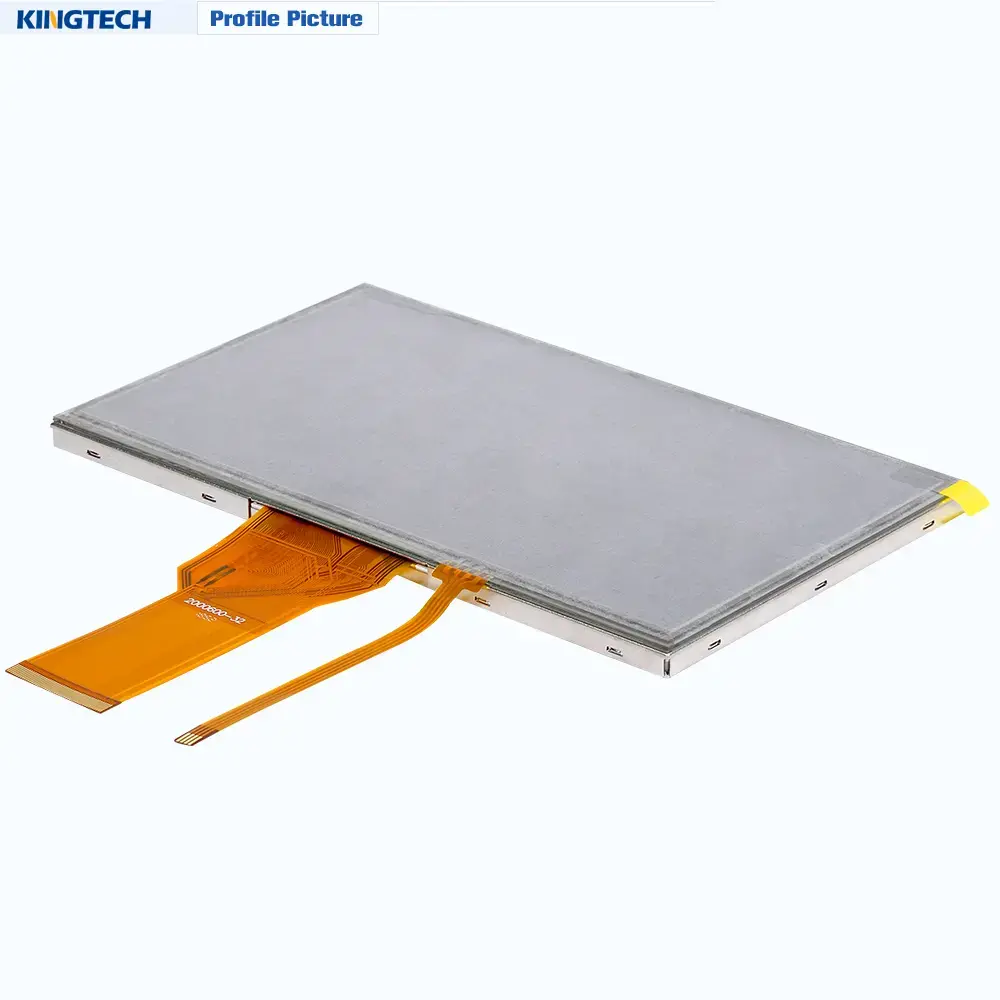

1000nits high brihtness 7 inch lcd display Back view :

sunlight readable 7.0 inch 800*480 TFT module display

HDMI board

sunlight readable 7.0 inch 800*480 TFT module display

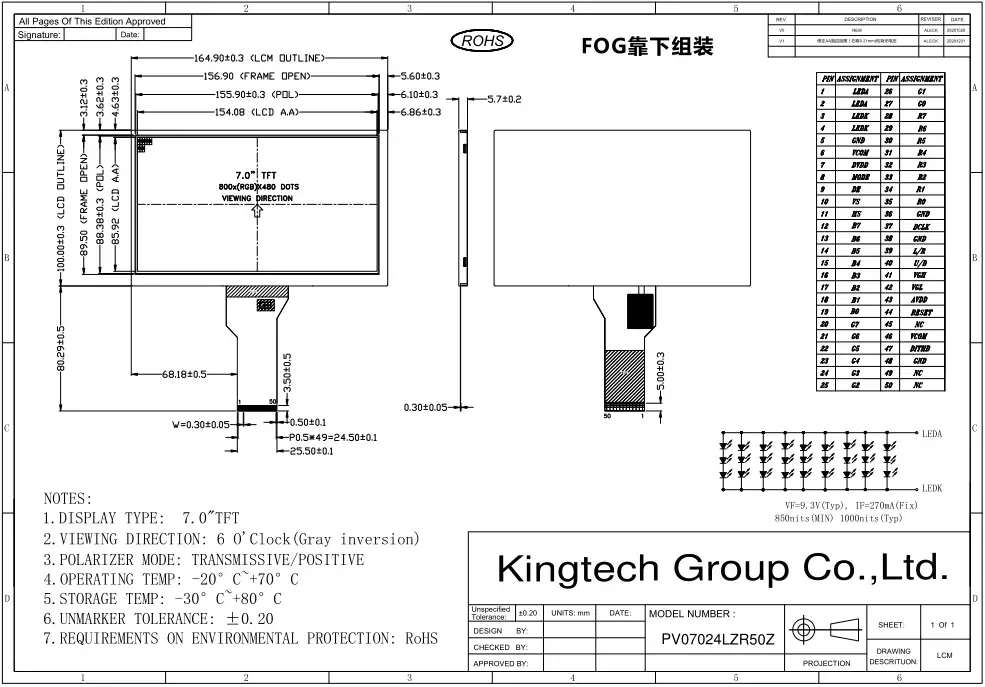

Sunlight readable 7 inch lcd display Machine Drawing

sunlight readable 7.0 inch 800*480 TFT module display
