IPS 10.1 inch 800×1280 MIPI videl TFT LCD display

Item10.1 inch 800×1280 IPS touch screen LCD
Model NoPV10108TD31F-C
Resolution800×1280

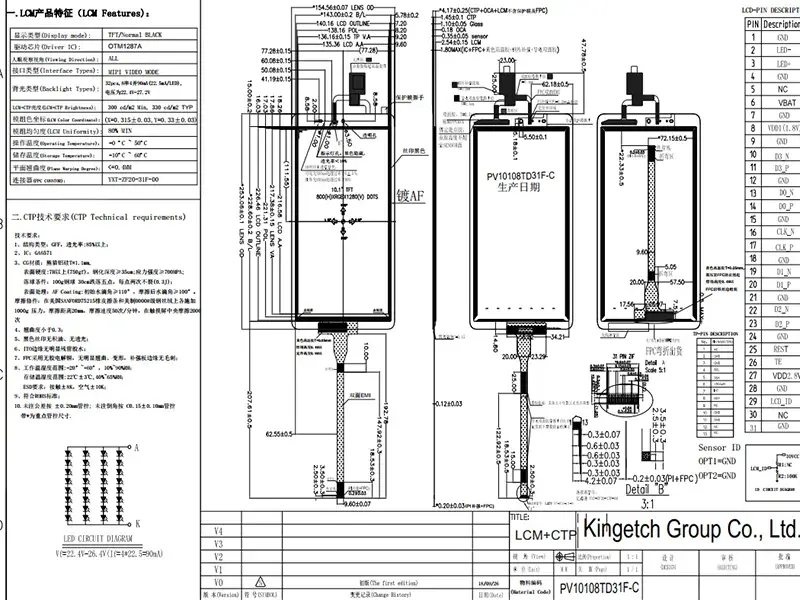

Outline Dimension146.16(W)*226.46(H)*2.54(T)
Active Area(mm)135.36(H) *216.58(V)
Brightness330nits
Viewing AngleAll
InterfaceMIPI VIDEO MODE
Driving ICOTM1287A
PIN31
Operating Temperature0 to +50℃
Storage Temperature-10 to +60℃
TouchCapacitive touch

For product pricing,customization,or other inquiries:

Share to:

10.1 inch 800×1280 MIPI infterface IPS portrait LCD touch scree display

1. PV10108TD31F-C mainly application for industrial device , logistics device
2. It with 800×1280 resolution , IPS full viewing angle,  330nits brightness, MIPI interface ,  OTM1287A driver IC, existing capacitive touch .
3. And it can custom the capacitive or resistive touch panel  as customer ‘s requirement .
4. It is the A grade product , with good quality for the industrial application

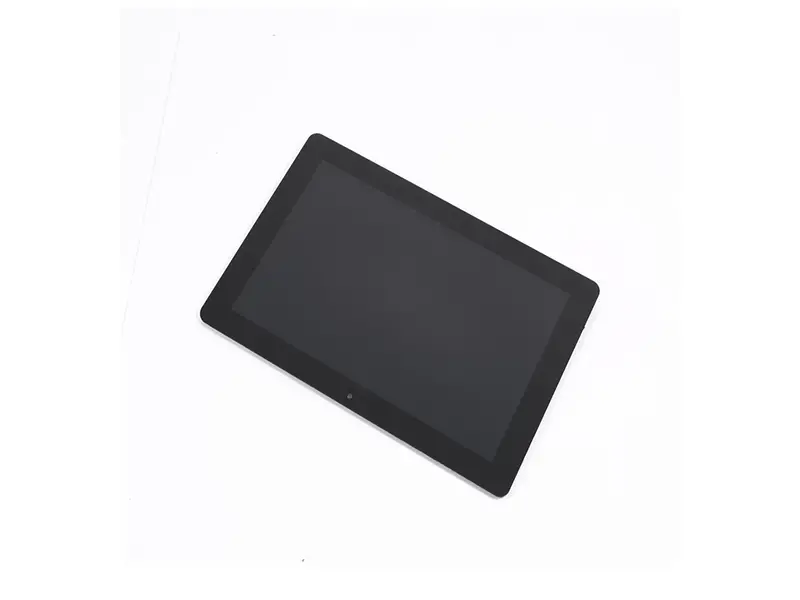

10.1 inch MIPI interface capacitive touch screen

IPS 10.1 inch 800x1280 MIPI videl TFT LCD displayIPS 10.1 inch 800x1280 MIPI videl TFT LCD display

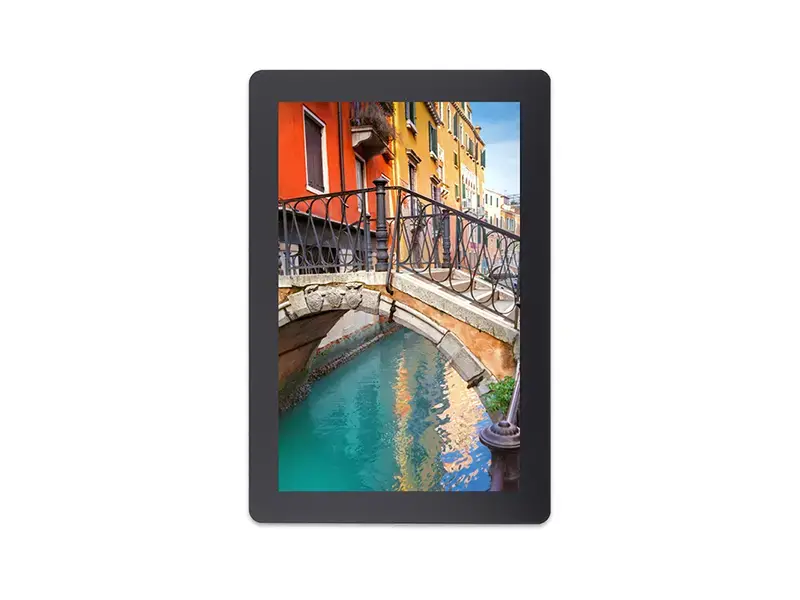

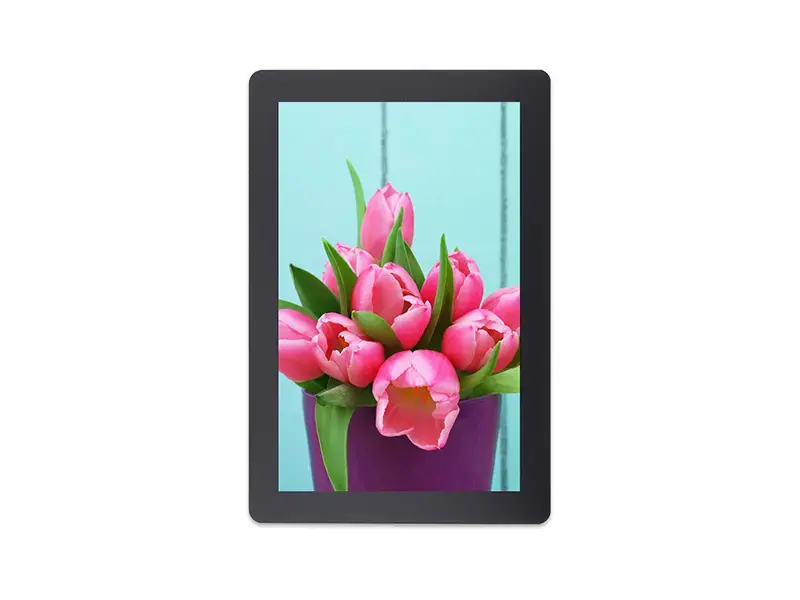

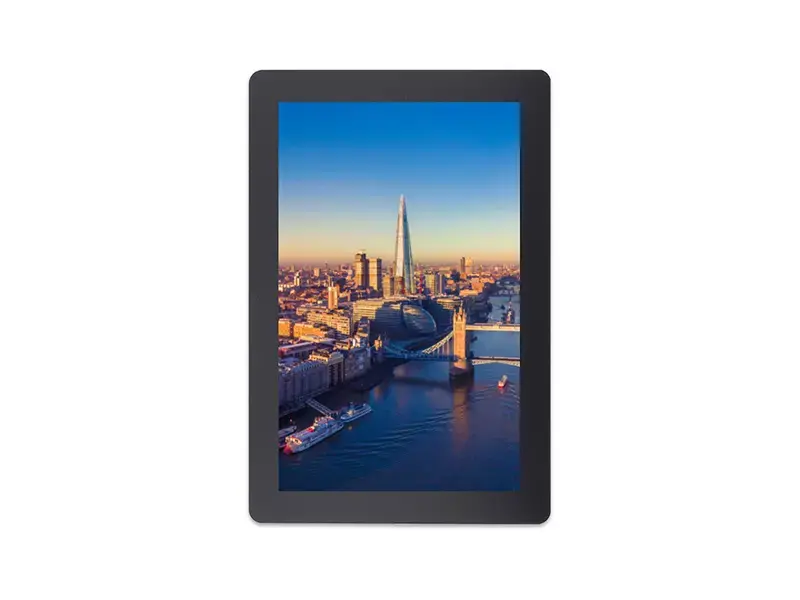

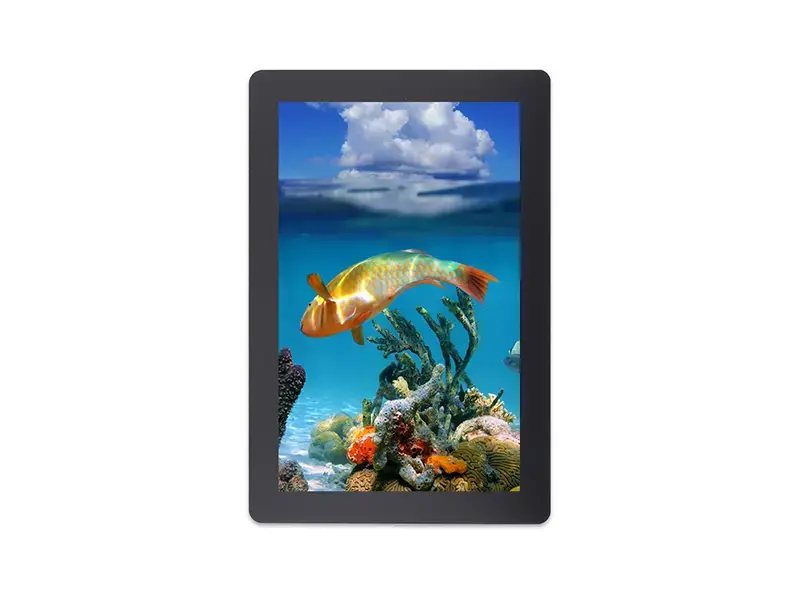

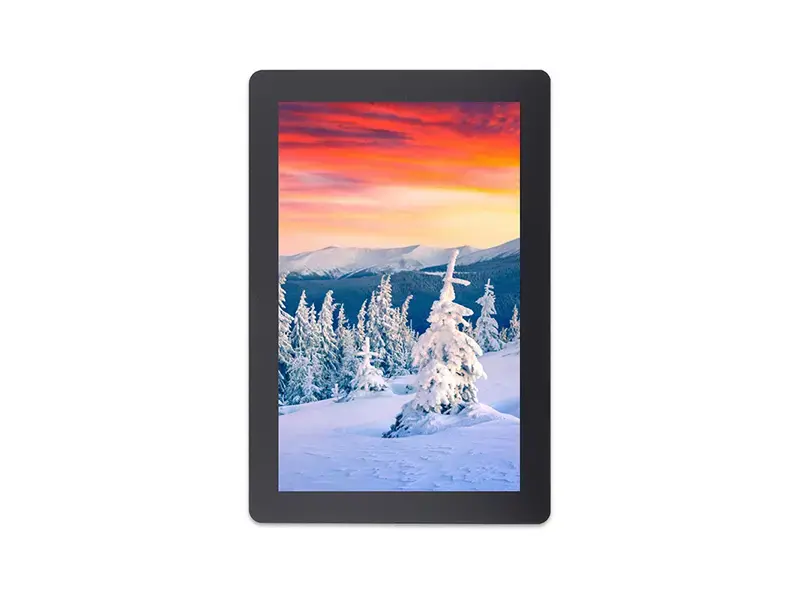

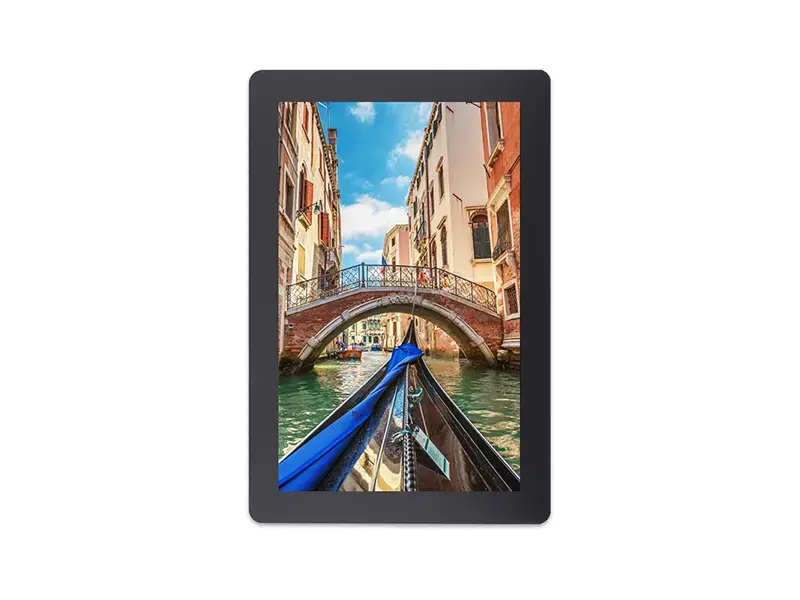

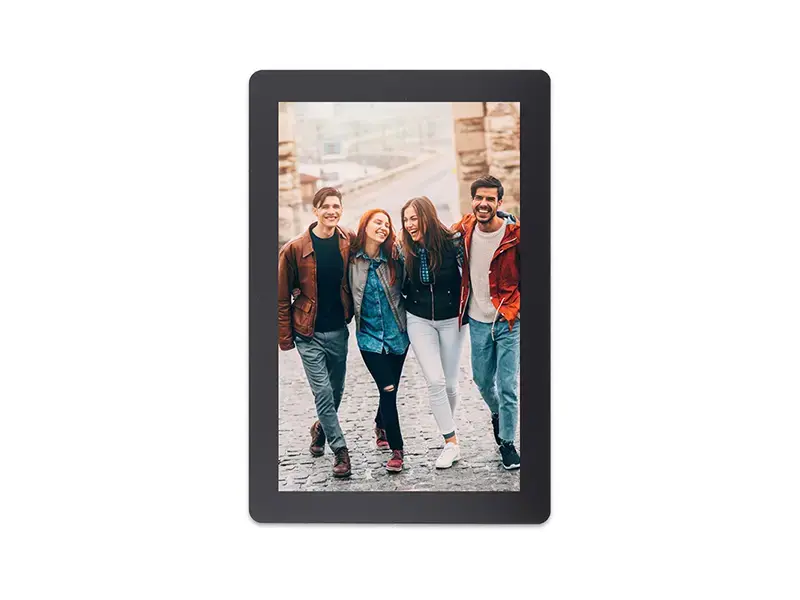

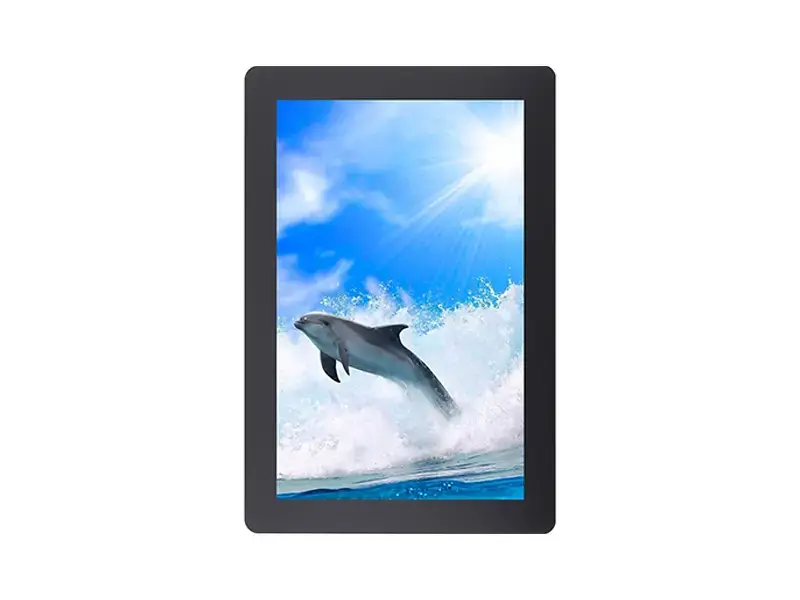

10.1 inch MIPI interface capacitive touch screen front view

IPS 10.1 inch 800x1280 MIPI videl TFT LCD display
