ST7796S IPS24 PIN 3.5 inchs TFT lcd touch screen module

Item3.5 inch IPS 320×480 vertical LCD display
Model NoPV035007TD24D
Resolution320*480
Outline Dimension57.34*96.95*3.43
Active Area(mm)48.96*73.44
InterfaceMIPI interface
Viewing AngleAll
Driver ICST7796S
Display ModeTransmissive / Normally Black
Operating Temperature-20℃~70℃
Storage Temperature-30℃ to +80℃
Brightness400nits
Touch screenCapacitive touch

For product pricing,customization,or other inquiries:

Share to:

3.5 inch 480×640 VGA SPI + RGB interface IPS Vertical display LCD module

1. PV035007TD24D mainly application  handheld device , Industrial ,medical equipment.
2. It with 320×480 resolution , IPS all view angle , ST7796S driver IC,MIPI interface, 400nits brightness, existing capacitive touch panel .
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ,medical application .

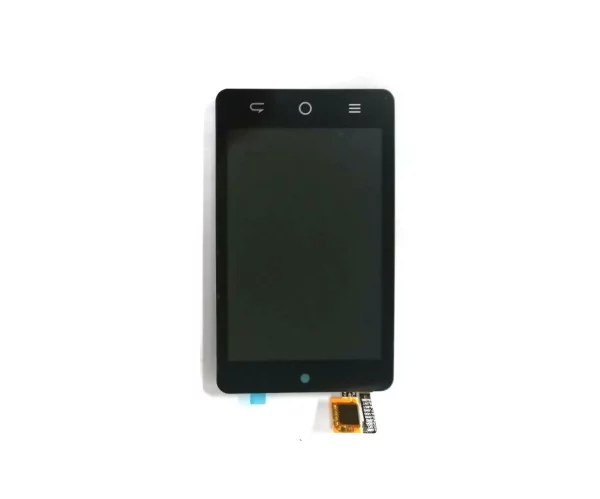

3.5 inch IPS LCD touch module front view

ST7796S IPS24 PIN 3.5 inchs TFT lcd touch screen module

3.5 inch capacitive touch screen back view

ST7796S IPS24 PIN 3.5 inchs TFT lcd touch screen module
