Kingtech 3.5″ inch 640*480 TFT module display

Item 3.5″ IPS 640*480TFT display
Model No. PV03526D0130Z
Resolution 640*480

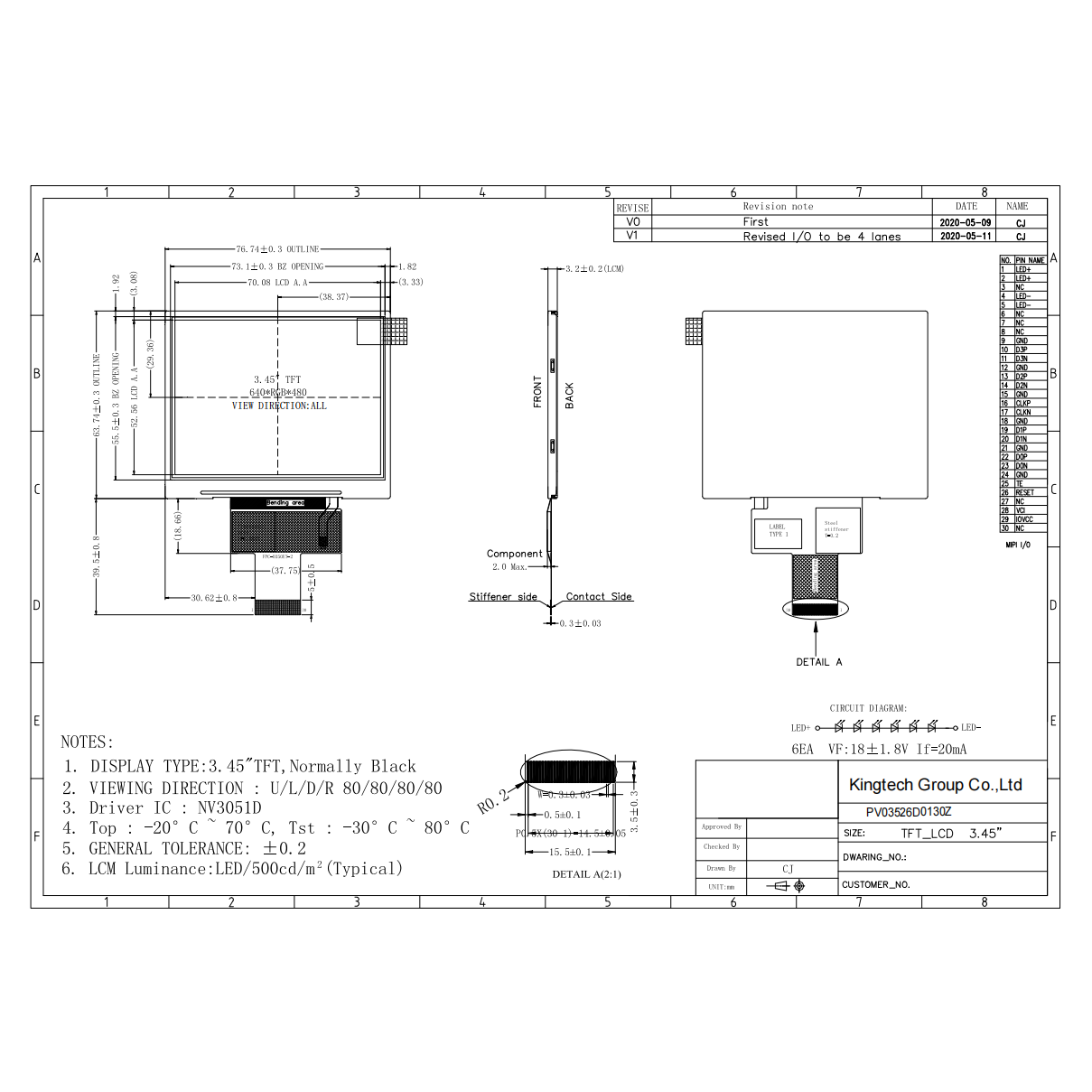

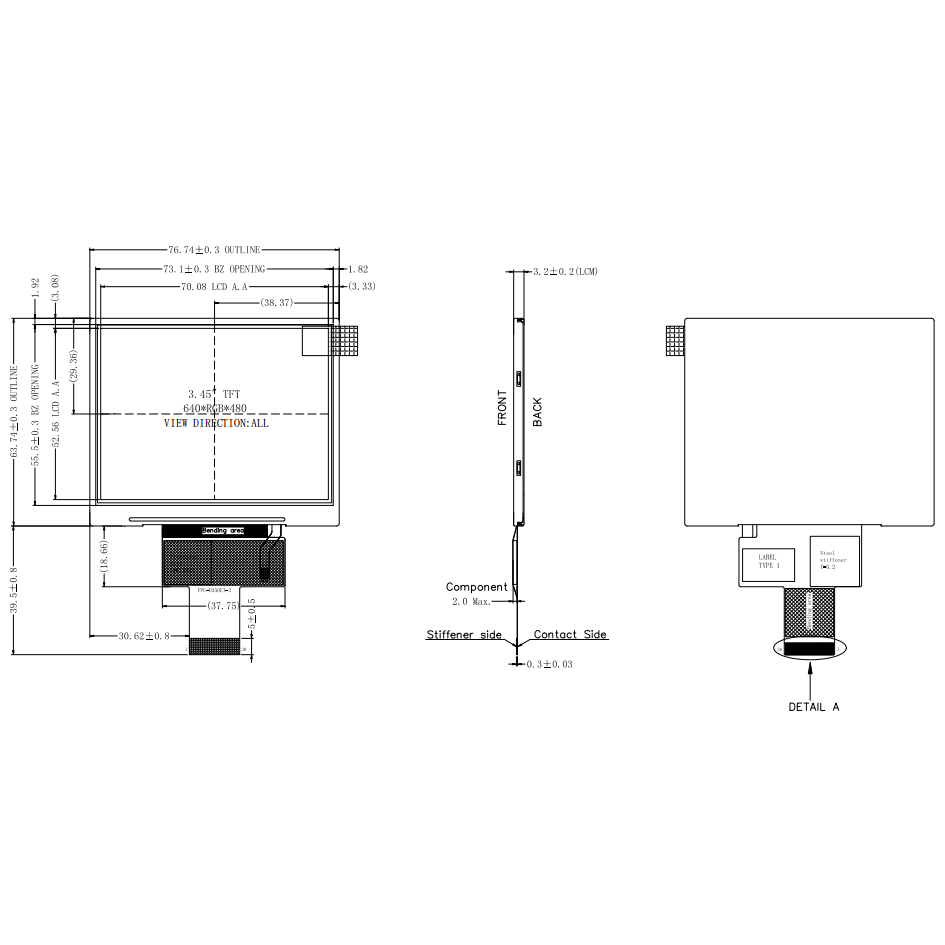

Outline Dimension (mm) 76.74*63.74*3.20
Active Area (mm) 70.08*52.56
Viewing Angle All
Brightness 500nits
Interface MIPI
Backlight 6*1LEDs
Driving IC NV3051
PIN No. 30
Operating Temperature -20~70C
Storage Temperature -30~80C
Touch screen Can custom resistive and capacitive touch screen
Application E-Bike, Medical, Hand-held device, Industrial

For product pricing,customization,or other inquiries:

INQUIRY

Share to:

  1. 1.Stable supply
  2. 2.500nits brightness/Sunlight readable/High brightness/Outdoor
  3. 3.-20~70/Wide working temperature
  4. 4.Can custom resistive touch and capacitive touch
