8 inch 800×600 resolution 500nit high brightness RGB TFT LCD display

Item  8inch 800×600 Landscape RGB interface display
Model No PV08005YP50E
Resolution  800×600
Outline Dimension  183.00*141.00*6.20
Active Area(mm) 162*121.5
Interface  24bit RGB Interface
Viewing Angle All
Driver IC HX8264-D/HX8696-A
Display Mode  TN / Transmissive / Normally white
Operating Temperature  -20℃~70℃
Storage Temperature  -30℃ to +80℃
Brightness 500nits
Touch screen Custom resistive and capacitive touchscreen

For product pricing,customization,or other inquiries:

Share to:

8 inch 800×600 resolution 500nits 24bit RGB interface Landscape TFT LCD display

1. PV08005YP50E mainly application for Industrial ,medical equipment .
2. It with 800×480 resolution , 400nits and 1000nits high brightness sunlight readable, 24-bit Parallel RGBinterface, existing capacitive touch panel .
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ,medical application.

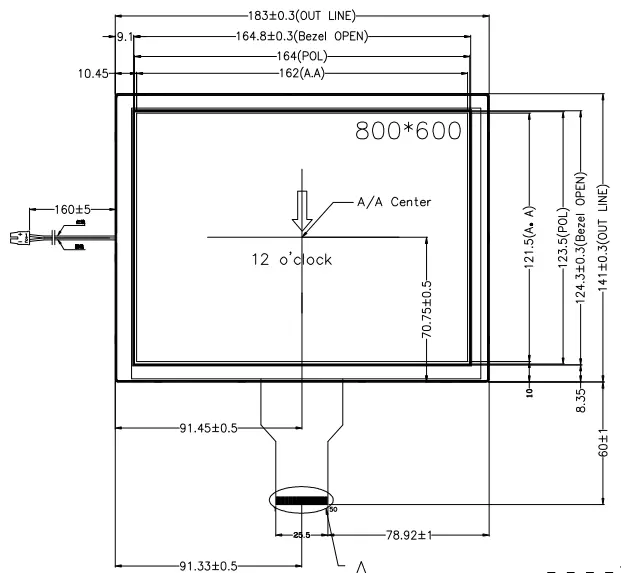

8” Landscape RGB interface display front view

PV08005YP50E front

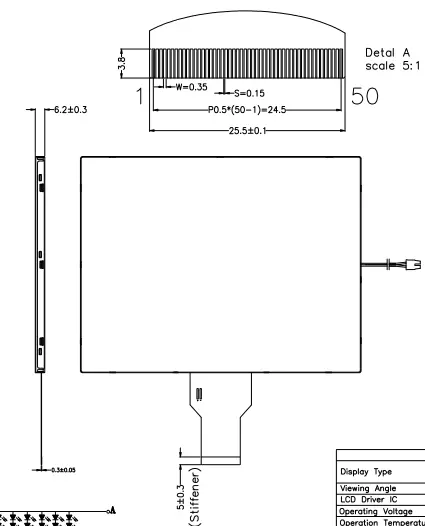

8 inch Landscape RGB LCD display back view

PV08005YP50E back
