5.5 inch 720×1280 MIPI interface all view LCD module

Item 5.5 inch 720×1280 lcd module
Model NoPV05507H0139G
Resolution 720×1280

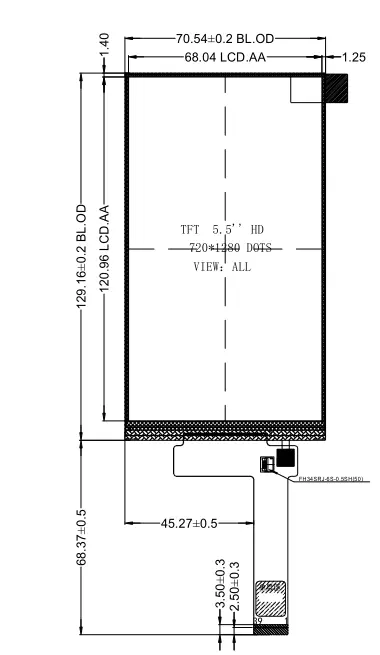

Outline Dimension 70.54*129.16*1.67
Active Area(mm)68.04*120.96
Interface MIPI interface
PIN39
Viewing AngleAll
Driver ICILI9881D
Display Mode Transmissive / Normally Black
Operating Temperature -20℃ to +70℃
Storage Temperature -30℃ to +80℃
Touch screenCan custom capacitive/resistive touchscreen

For product pricing,customization,or other inquiries:

Share to:

5.5 inch 720×1280 resolution MIPI interface IPS portrait tft lcd display
1. PV05507H0139G mainly application for outdoor device ,Industrial ,medical equipment .
2.It with 720×1280 resolution, RGB interface, ILI9881D driver IC, All / Full / /Wide / IPS viewing angle, 39 PIN.
3.It also can custom touch panel as customer ‘s requirement .
4.It is A grade product and with wide work temperature feature  , the good quality well use for Electric motorcycles and e-bikes.



5.5” IPS TFT LCD display front view

front

5.5” MIPI interface LCD module back view

back
