700 nits 4.3″ capacitive touch panel lcd module

Itemkingtech 4.3inch IPS tft lcd module
Model NoPV04301LZR40B
Resolution800×480
Outline Dimension105.5(W)×67.2(H)×3.0(T)
Active Area(mm)95.04(W)×53.86(H)
Interface24-bit Parallel RGB Interface
Viewing AngleAll
Driving ICHX8264D+HX8664
Display ModeTFT/TRANSMISSIVE
Operating Temperature-20 to +70℃
Storage Temperature-30 to +80℃
Brightness700nits
Touch screenResistive and capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

4.3 inch 800×480 resolution RGB 700nits sunlight readable lcd display
1.PV04305LZR40E mainly application for  Industrial ,medical equipment .
2.It with 800x480resolution , 700nit high brightness, 24bit RGB interface , HX8264D+HX8664 driver IC.
3.It also can custom touch panel as customer ‘s requirement .
4.It is A grade product , the good quality well use for Industrial ,medical application . It is sunlight readable can  be well used for both indoor and outdoor.

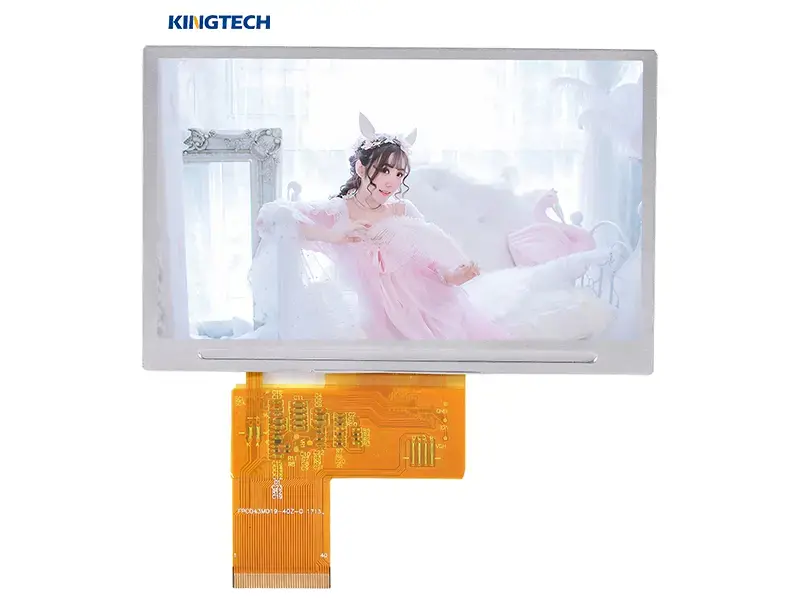

kingtech 4.3inch IPS tft lcd module Front view

PV04301LZR40B

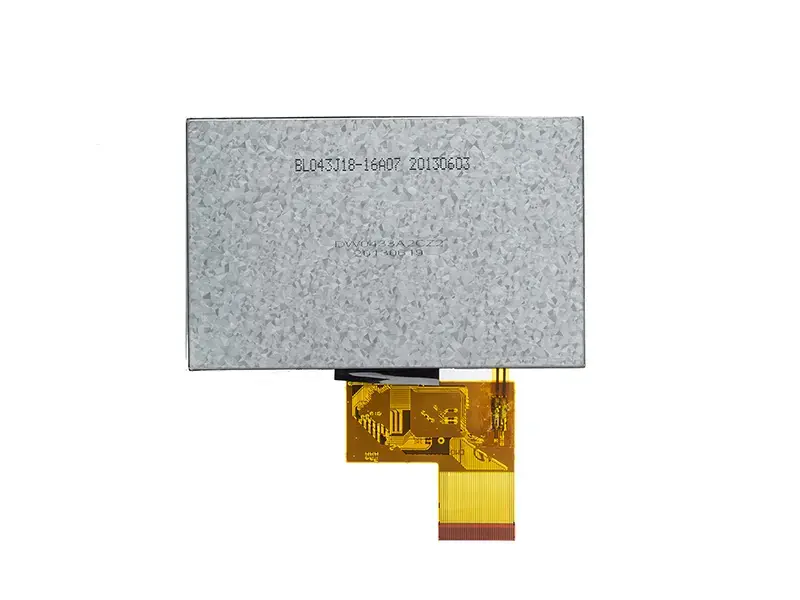

kingtech 4.3inch IPS tft lcd module back view



PV04301LZR40B

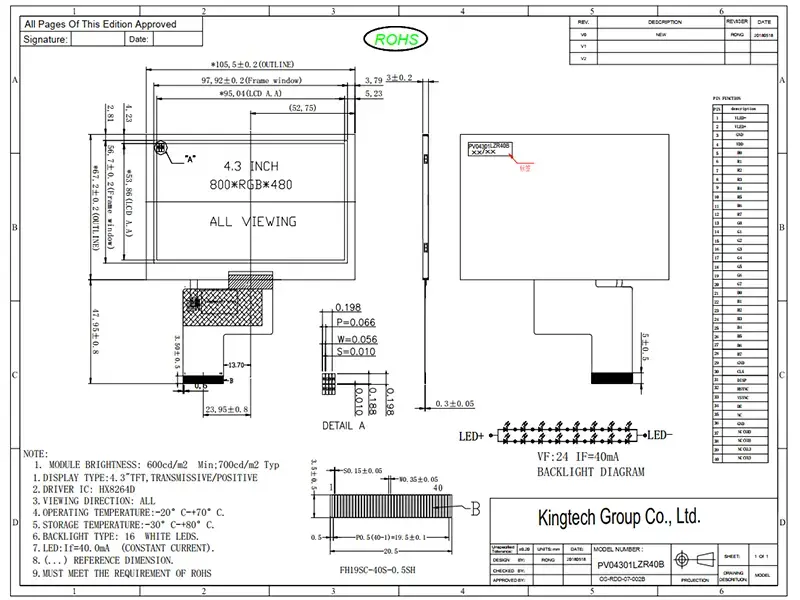

kingtech 4.3inch IPS tft lcd module Machine Drawing

PV04301LZR40B
