7 inch 800×480 resolution RGB interface TFT LCD with resistive touch

Item 7 inch 800×480 touch LCD display
Model No PV07002LZR40B-R1
Resolution 800×480
Outline Dimension 164.9(W)×100(H)×7.0(T)
Active Area(mm) 154.08(W)×85.92(H)
Brightness 240nits
Viewing Angle 12 O’clock
Interface 24-bit Parallel RGB Interface
Driver IC HX8664-B+HX8264-E
PIN 40
Operating Temperature -20 to +70℃
Storage Temperature -30 to +80℃
Touch Resistive touch screen

For product pricing,customization,or other inquiries:

Share to:

7 inch 800×480 WVGA RGB interface IPS LCD with resistive touch

1. PV07002LZR40B-R1 mainly application for Industrial ,medical equipment or outdoor device.
2. It with 800×480 resolution, 24-bit Parallel RGB Interface, 240nits and 1000nit brightness, HX8664-B+HX8264-E driver IC, existing resistive touch.
3. It also can custom touch panel as customer ‘s requirement .
4. It is high brightness can be sunlight readable , can be well used for both indoor and outdoor .

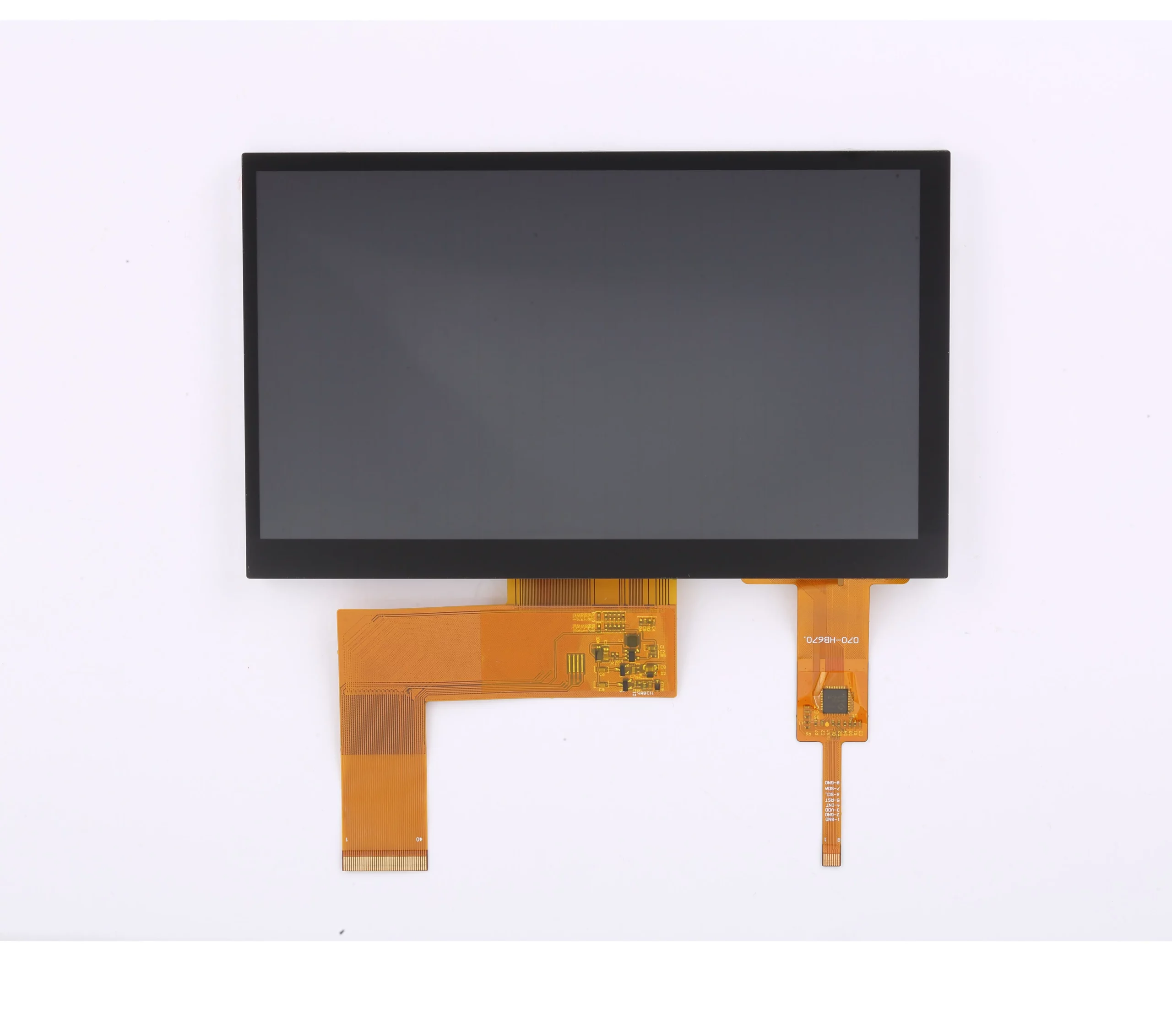

7 inch 800×480 touch LCD display fornt view

PV07002LZR40B-CT front

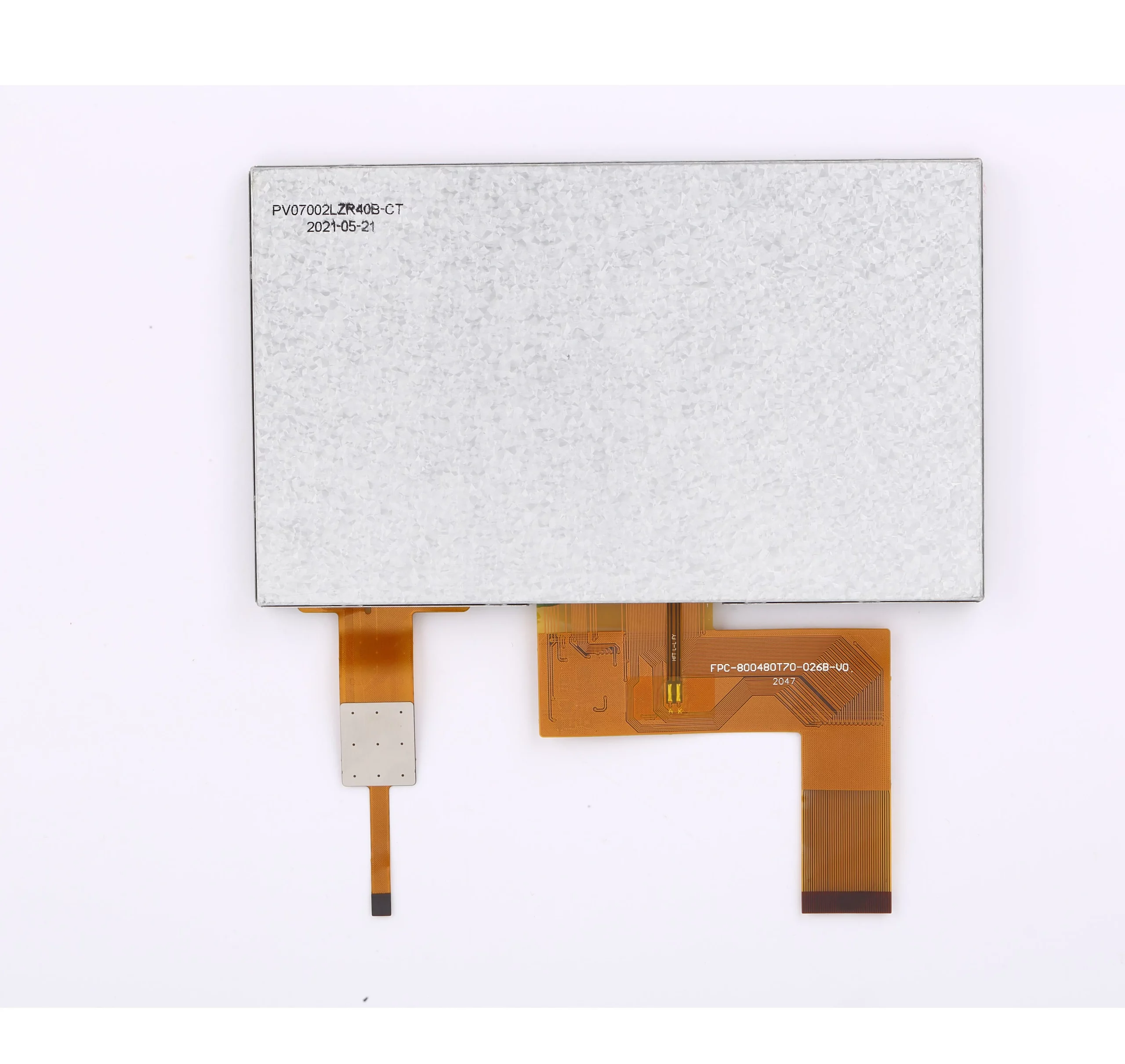

7 inch 800×480 capacitive touch display back view

PV07002LZR40B-CT back

7 inch 800×480 high brightness TFT LCD HDMI board

7 inch 800x480 resolution RGB interface TFT LCD display

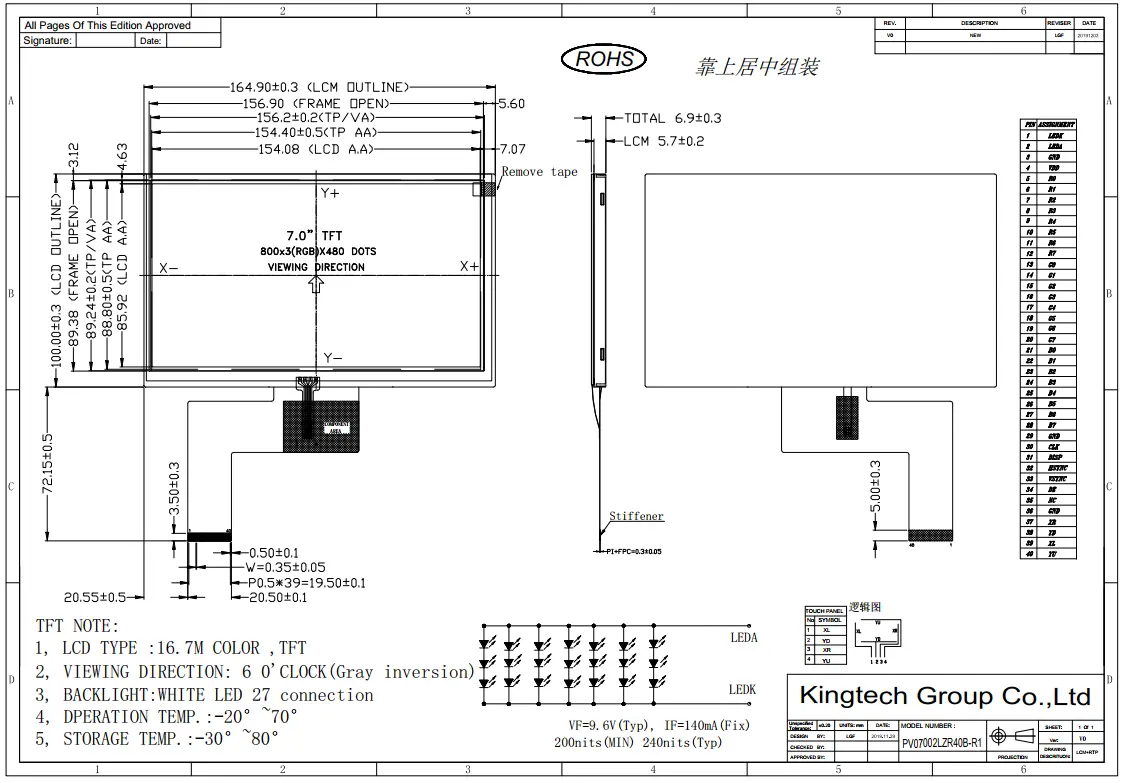

7” RGB display with resistive touch panel Machine Drawing
