Kingtech 4.3″ inch 800*480 TFT module display

Item 4.3 Iinch IPS 800*480 TFT display
Model No. PV043026Y0140W-CT
Resolution 800*480

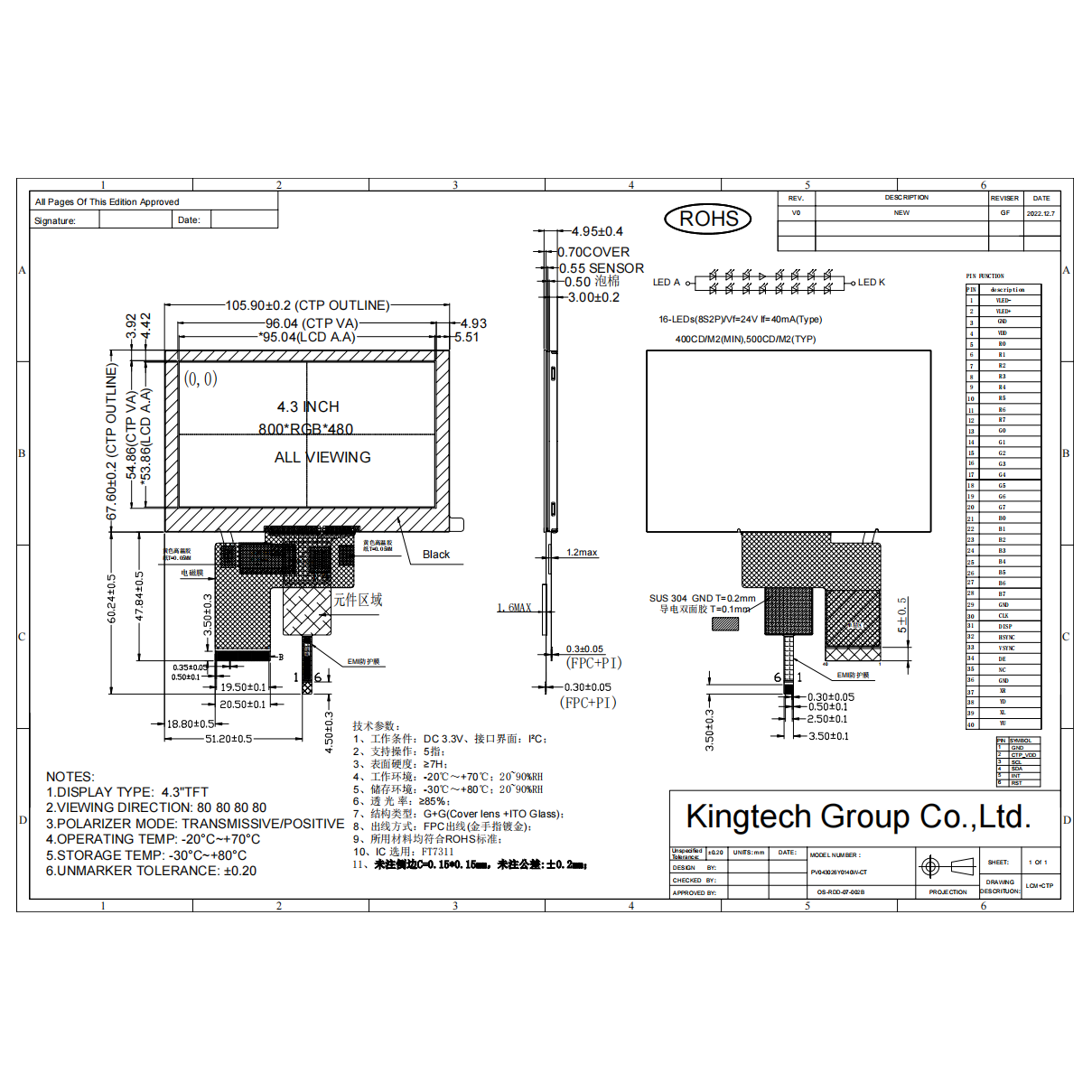

Outline Dimension (mm) 105.90*67.60*4.95
Active Area (mm) 95.04*53.86
Viewing Angle All
Brightness 500nits
Interface RGB
Backlight 8*2LED
Driving IC /
PIN No. 40
Operating Temperature -20~70C
Storage Temperature -30~80C
Touch screen Can custom resistive and capacitive touch screen
Application E-Bike, Medical, hand-held device, industrial

For product pricing,customization,or other inquiries:

Share to:

  1. Stable supply
  2. 500nits brightness/Sunlight readable/Outdoor/High brightness
  3. Can custom resistive touch and capacitive touch
  4. IPS/Free/All/Wide viewing angle
