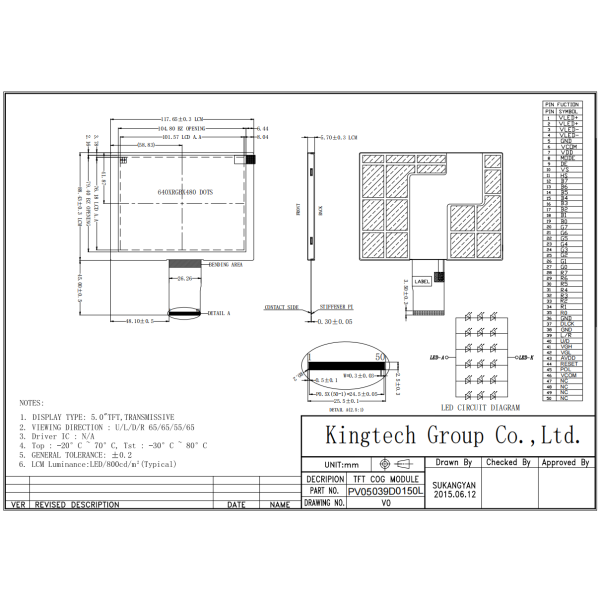

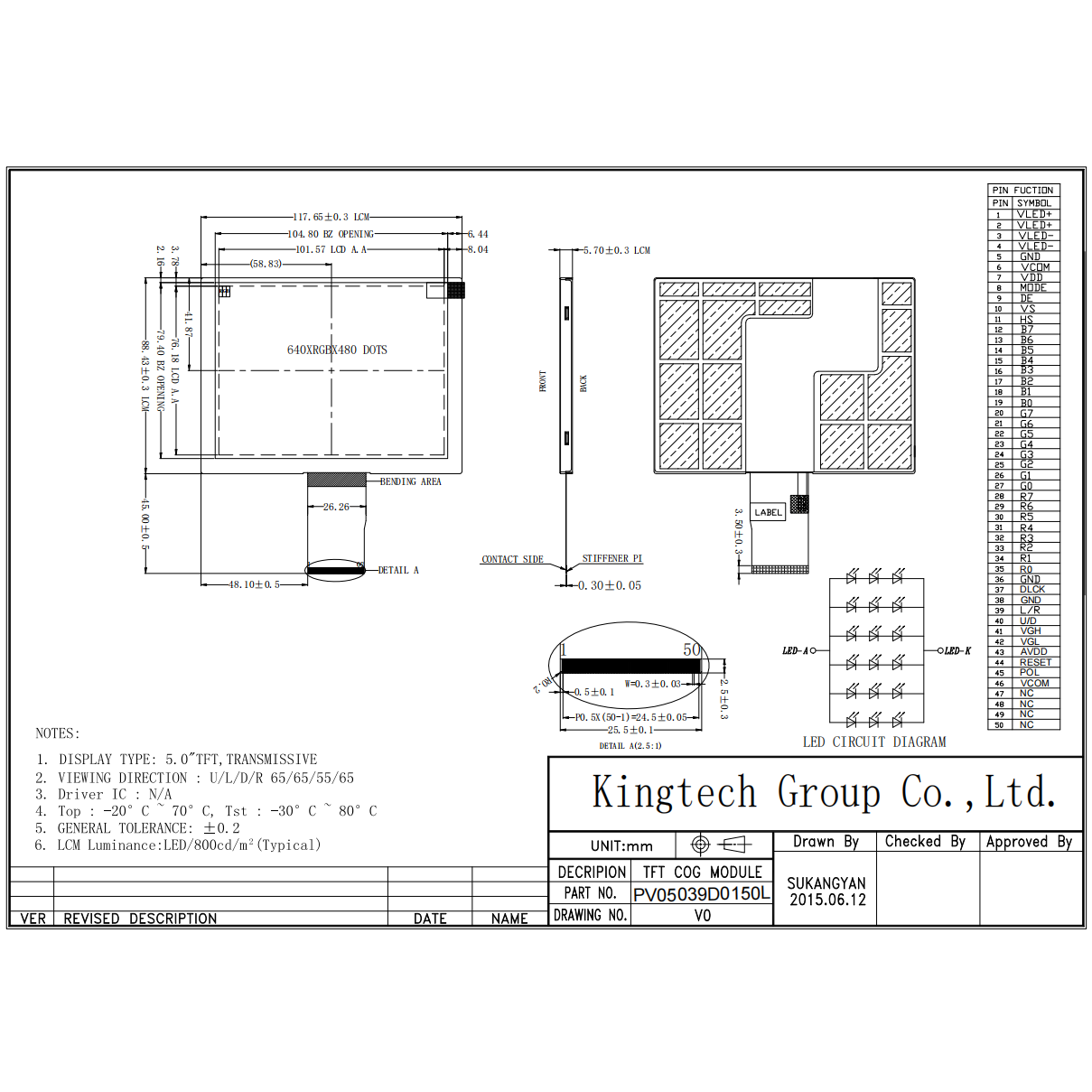

Kingtech 5.0” inch 640*480 TFT module display

Item5.0 inch TN 640*480 TFT display
Model No.PV05039D0150L
Resolution640*480

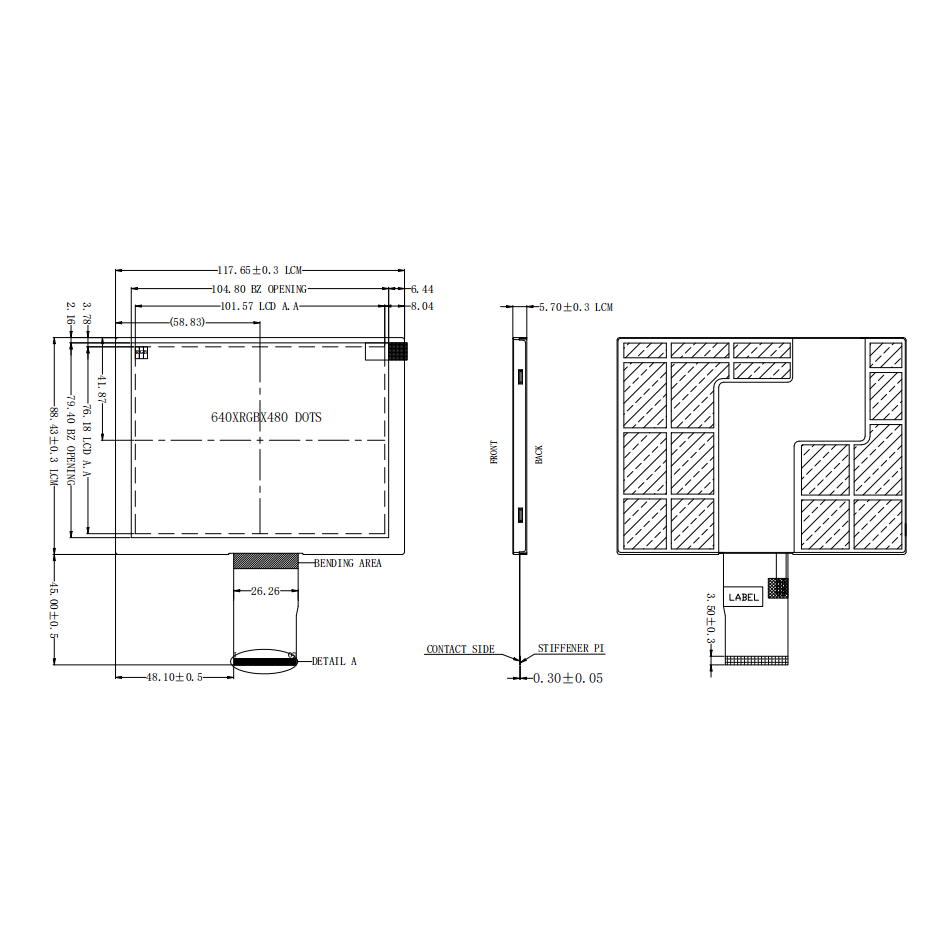

Outline Dimension (mm)117.65*88.43*5.7
Active Area (mm)101.57*76.18
Viewing Angle12 O’clock
Brightness800nits
InterfaceRGB
Backlight3*6LEDs
Driving IC/
Operating Temperature-20~70C
Storage Temperature-30~80C
Touch screenCan custom resistive and capacitive touch screen
ApplicationE-Bike, Medical, hand-held device, industrial

For product pricing,customization,or other inquiries:

Share to:

  1. Stable supply
  2. 800nits brightness/Sunlight readable/High brightness/Outdoor
  3. Can custom resistive touch and capacitive touch
  4. Life-time 50000h
  5. Contrast Ratio500
