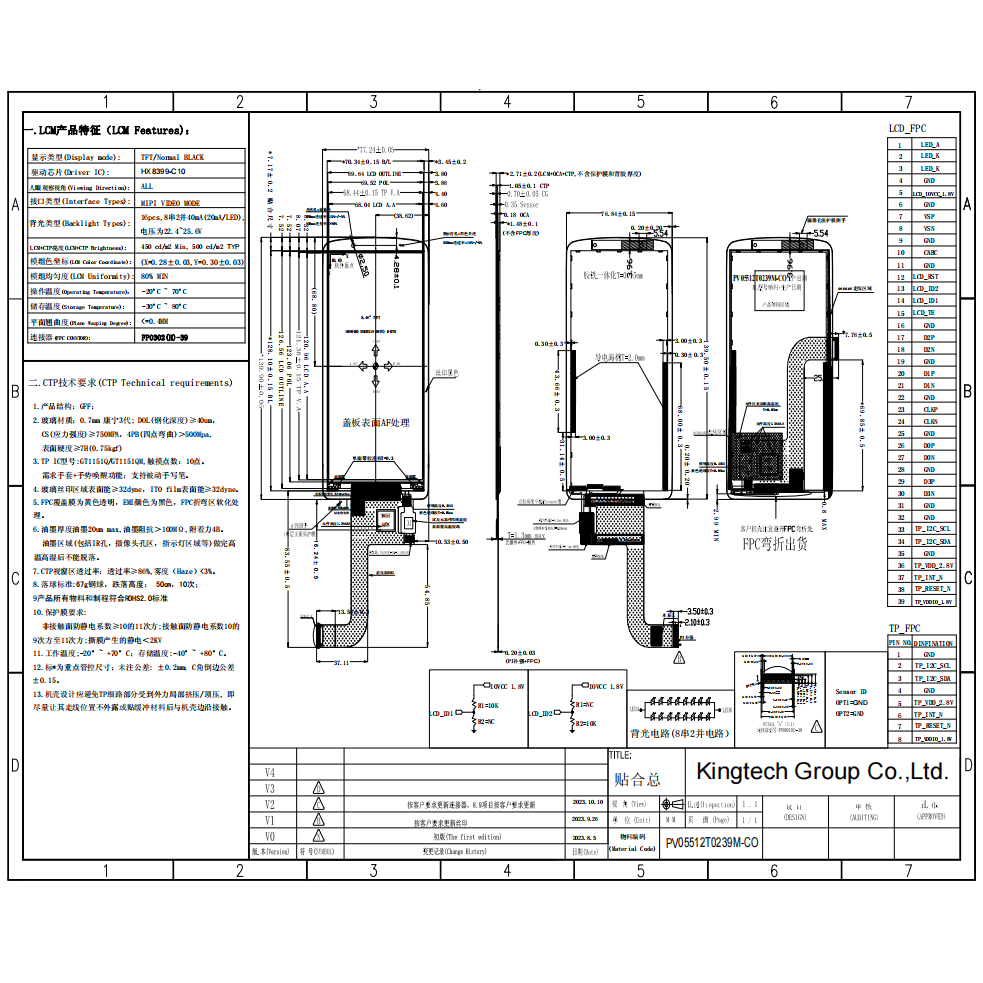

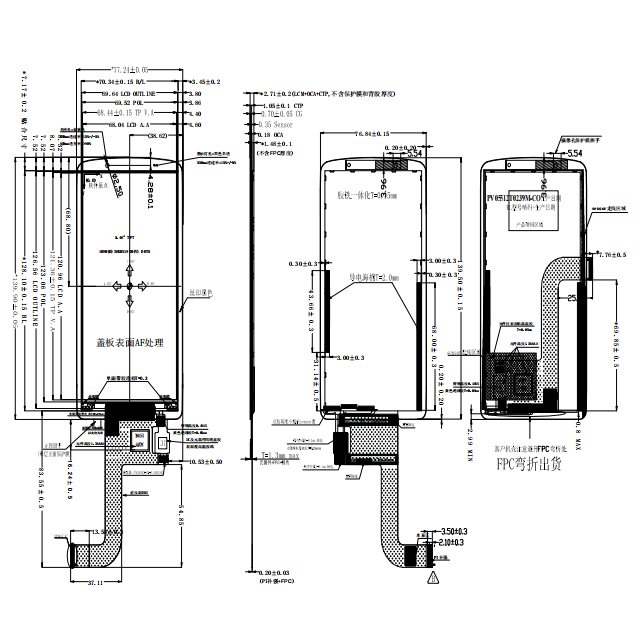

Kingtech 5.5inch TFT colorful LCD module

ItemThin 5.5inch IPS 1080×1920 LCD MIPI interface
Model No.PV05512T0239M-CO
Resolution1080*1920
Outline Dimension (mm)77.24*139.9*2.71
Active Area (mm)68.04*120.96
Viewing AngleAll
Brightness500nits
InterfaceMIPI-4 Lanes
Backlight8*2 LEDs
Driving ICHX8399-C10
PIN No.39
Operating Temperature-20~70C
Storage Temperature-30~80C
Touch screenCapacitive touch with OCA bonding
ApplicationMedical, hand-held device, industrial, outdoor, advertising, E-bike.

For product pricing,customization,or other inquiries:

Share to:

  1. Thin 5.5inch Portrait
  2. High resolution 1080×1920
  3. MIPI interface
  4. Capacitive Touch, OCA bonding
