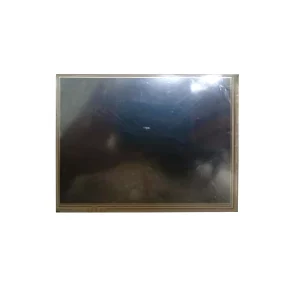

Kingtech 5.7inch TFT colorful LCD module

Item5.7inch TN 320×240 QVGA LCD module

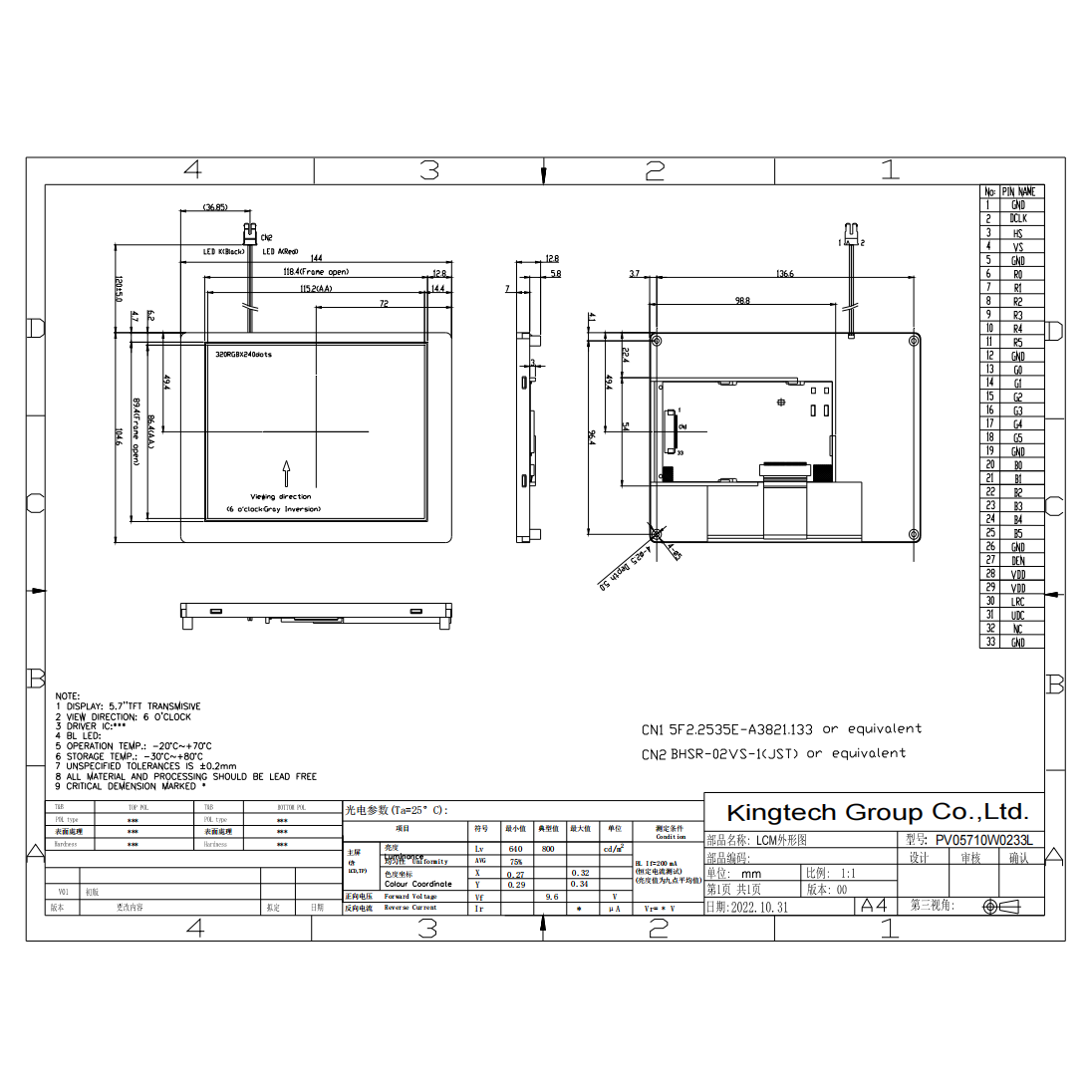

Model No.PV05710W0233L
Resolution320*240

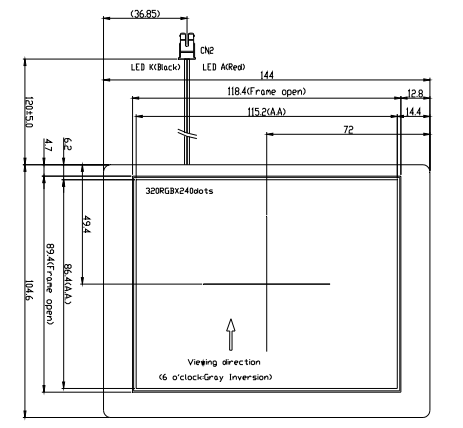

Outline Dimension (mm)104.6*144.0*12.8
Active Area (mm)115.2*86.4
Viewing Angle6 O’clock
Brightness800nits
Interface18bit RGB
Backlight/
Driving IC/
PIN No.33pins
Operating Temperature-20~70C
Storage Temperature-30~80C
Touch screenCapacitive touch and resistive touch for optional
ApplicationOutdoor application,EV charger,Industrial,Communication equipment

For product pricing,customization,or other inquiries:

Share to:

  1. Sunlight readable / High brightness / Outdoor / 800nits
  2. 7inch TN LCD
  3. 320x240dots / QVGA
  4. Resistive touch and capacitive touch for optional
  5. 4:3
