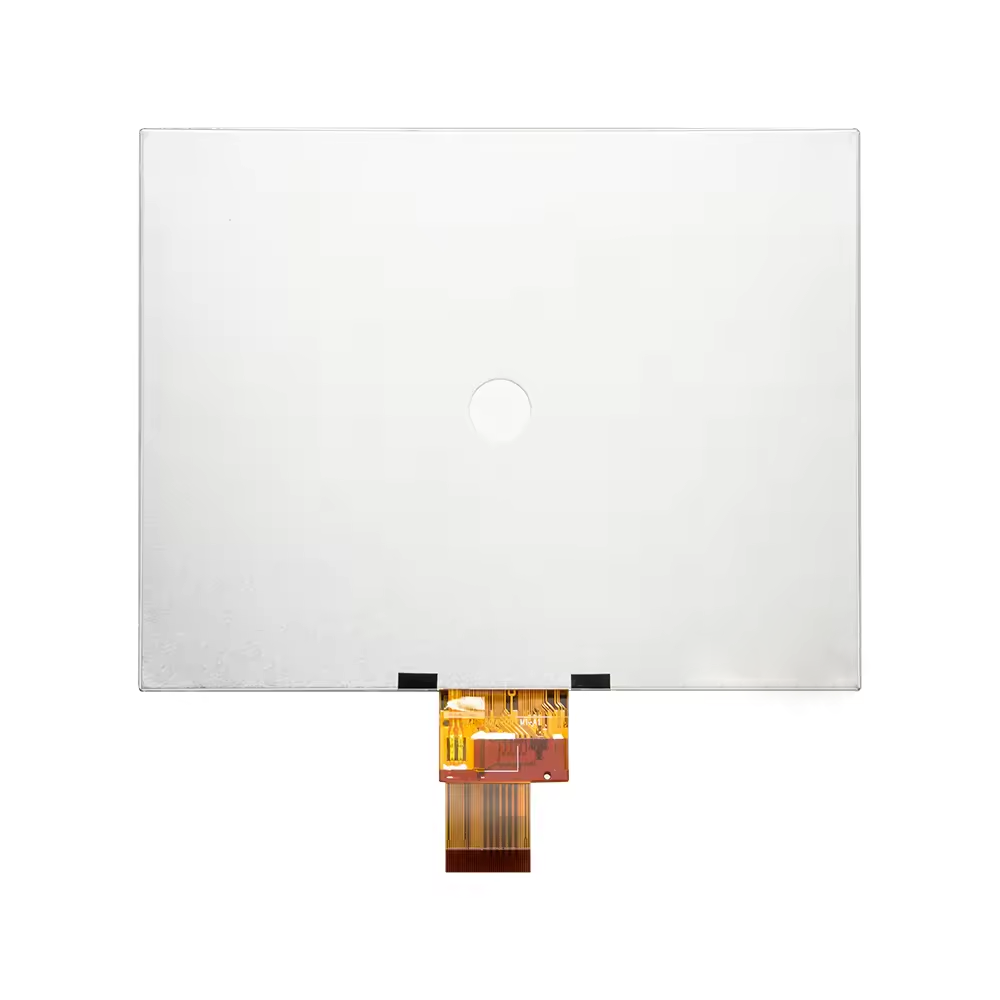

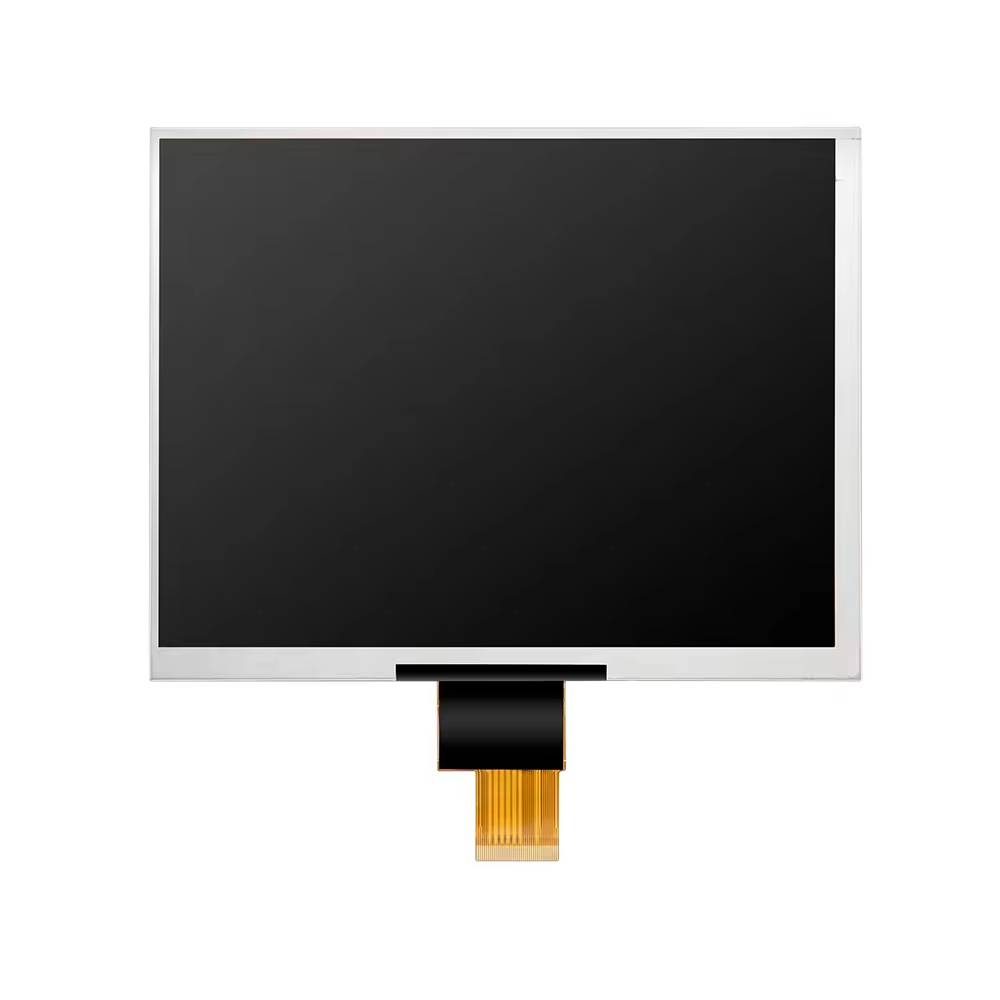

Kingtech 8.0 inch LCD module IPS TFT LCD

Key Features:

  • 8.0-inch TFT LCD module with IPS technology for superior color accuracy
  • 1024×768 high resolution for sharp image quality
  • LVDS interface for fast and stable data transmission
  • 300nits brightness for clear visibility in different environments
  • Wide viewing angles for enhanced user experience
  • Long-lasting LED backlight with 3×11 LED design
  • Driving IC: JD9365A, ensuring reliable performance
  • Optional resistive or capacitive touch screen for various interactive applications

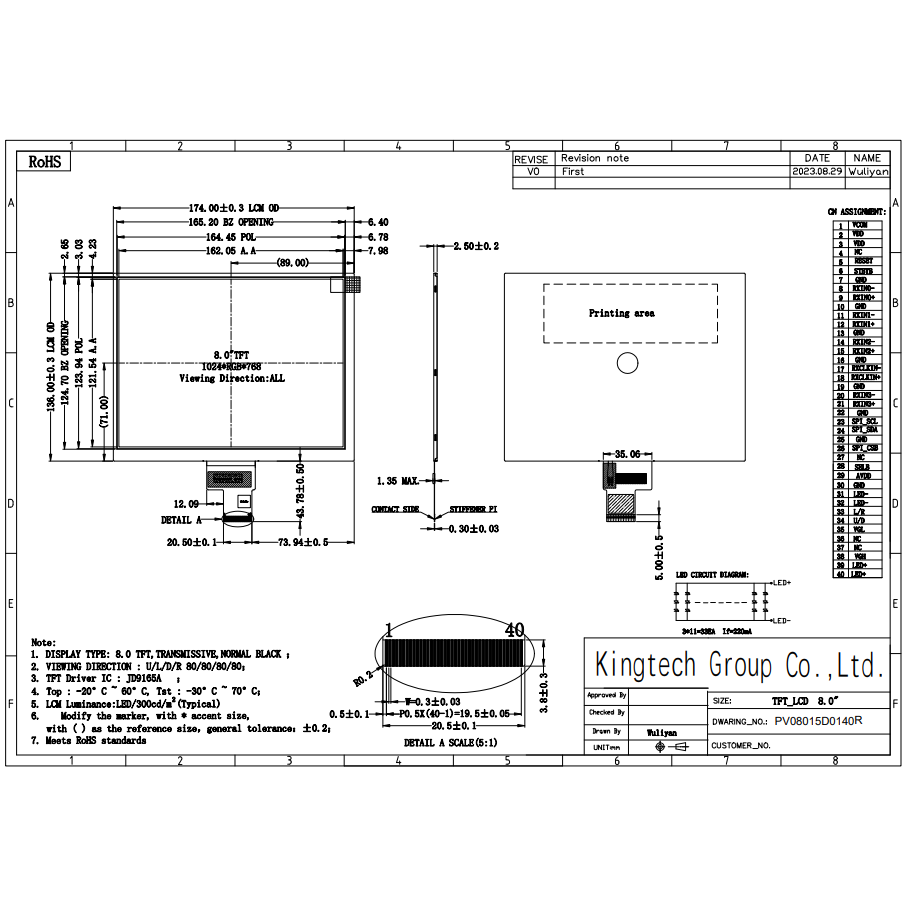

  • Compact and slim design with 174.00×136.00×2.5mm dimensions
  • Active Area: 162.05×121.54mm
  • Operating Temperature: -20℃ to 60℃, Storage Temperature: -30℃ to 70℃

For product pricing,customization,or other inquiries:

Share to:

Product Overview:

The Kingtech 8.0-inch IPS TFT LCD Module (Model No. PV08015D0140R) is a high-quality display solution designed for industrial, commercial, and consumer applications. Featuring a 1024×768 resolution, LVDS interface, and wide viewing angles, this 8.0-inch IPS panel delivers sharp, vibrant visuals with excellent color consistency. With both resistive and capacitive touchscreen options, it offers flexible integration for various applications.

Applications:

  • Consumer Electronics: Smart home devices, tablets, e-bikes
  • Automotive Displays: Instrument panels, infotainment systems
  • Industrial Control Panels: HMIs, automation systems
  • Self-Service Devices: Kiosks, POS terminals
  • Medical Equipment: Diagnostic and monitoring displays

This 8.0-inch IPS TFT LCD module is a high-performance, durable, and versatile display solution for B2B clients looking for customizable and reliable LCD panels. Contact us for bulk orders and customization options.
