2inch 176×220 customized display lcd module

Item 2inch rectangle LCD module display
Model No PV02000PD24B_V01
Resolution 176×220

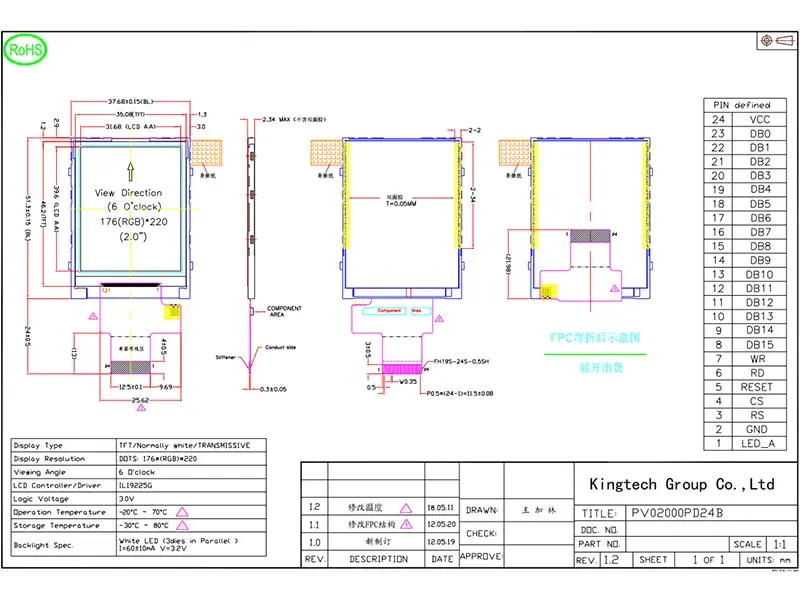

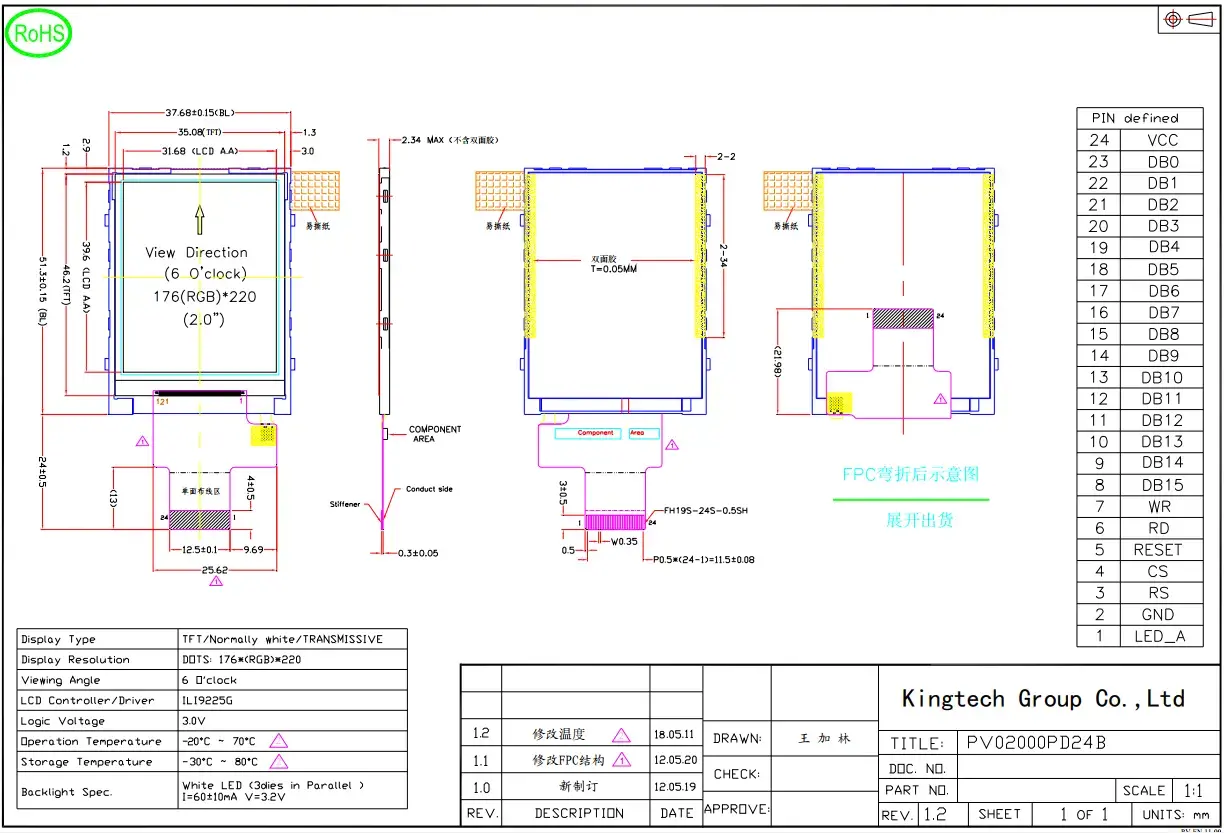

Outline Dimension 51.30(H)x37.68(W)x2.40(T)
Active Area(mm) 39.60(H)x31.68(W)
Interface Standard 8080 system 8 / 16 bit parallel interface (default : 16-bit )
Viewing Angle 6 O’clock
Driving IC ILI9225G
Display Mode Transmissive / Normally White
Operating Temperature -20 to +70℃
Storage Temperature -30 to +80℃
Brightness 180nits
Touch screen Resistive and capacitive touch screen
