SPI RGB IPS 4.3 LCD display

Item4.3 inch 480×800 lcd with CTP
Model NoPV04303LZR50E-C
Resolution480×800
Outline Dimension94.2(W)×165.4(H)×4.05(T)
Active Area(mm)56.16(W)×93.6(H)
Brightness300nits
Viewing AngleAll
Interface3-wire/4-wire SPI + RGB interface
Driving ICJD9161
PIN50
Operating Temperature-20 to +70℃
Storage Temperature-30 to +80℃
Touchcapacitiv touch

For product pricing,customization,or other inquiries:

Share to:

4.3 inch 480×800 resolution RGB interface IPS LCD with capacitive touch

1. PV04303LZR50E-C mainly application for  Industrial ,medical equipment .
2. It with 480×800 resolution , SPI/ SPI+RGB interface , JD9161 driver IC , IPS /All/ Free/ Full/ Wide viewing angle, 300nits brightness.
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ,medical application .

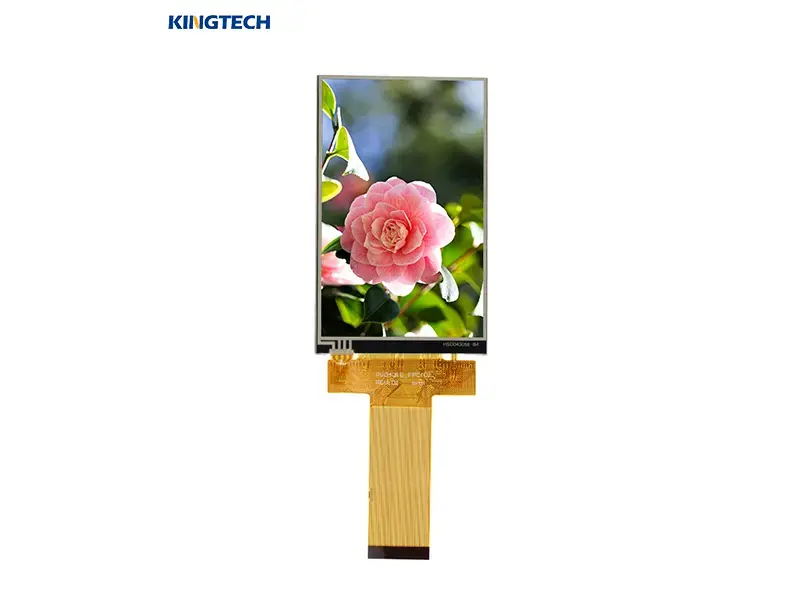

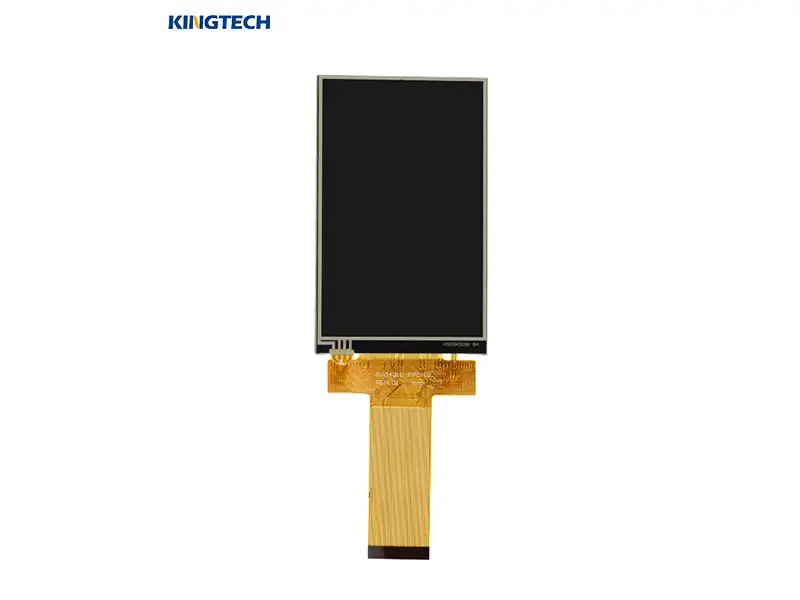

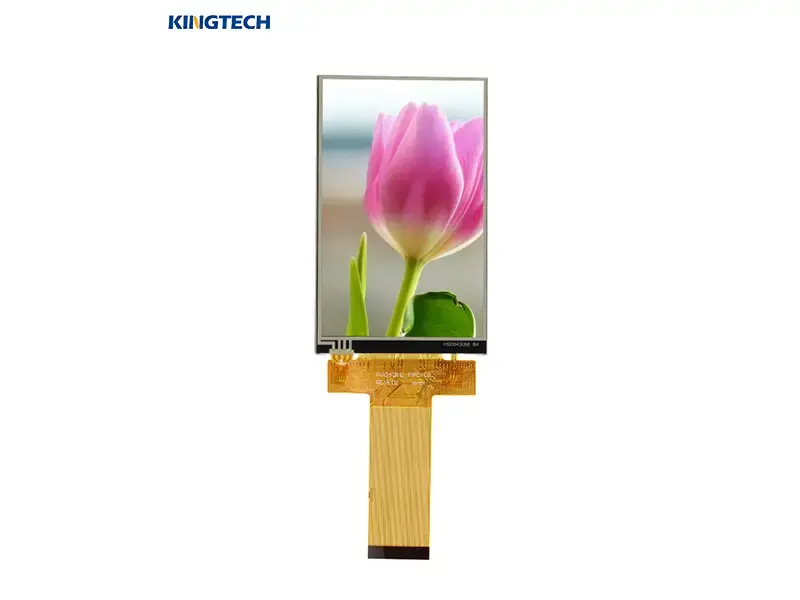

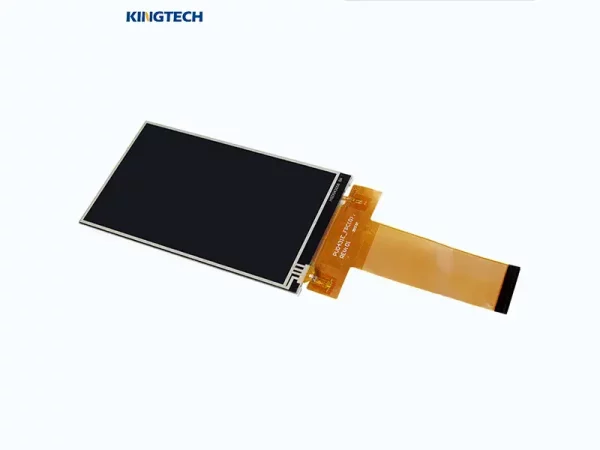

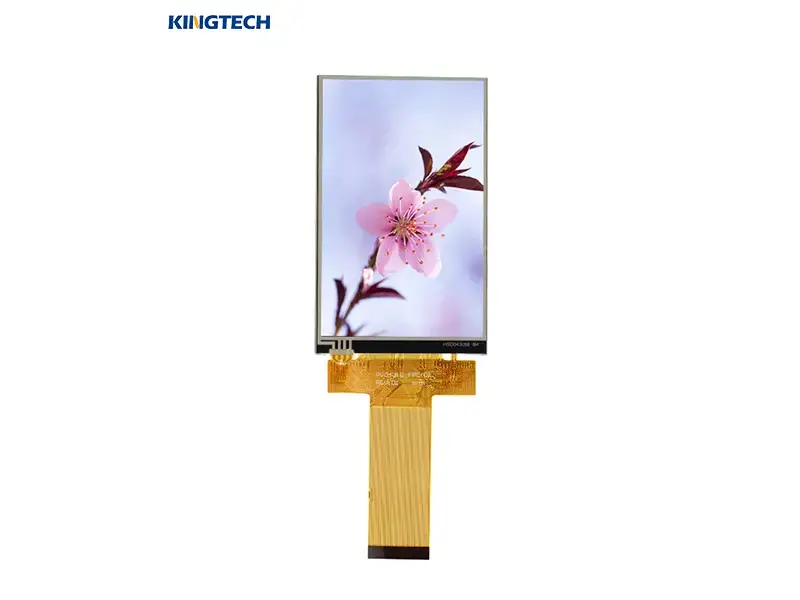

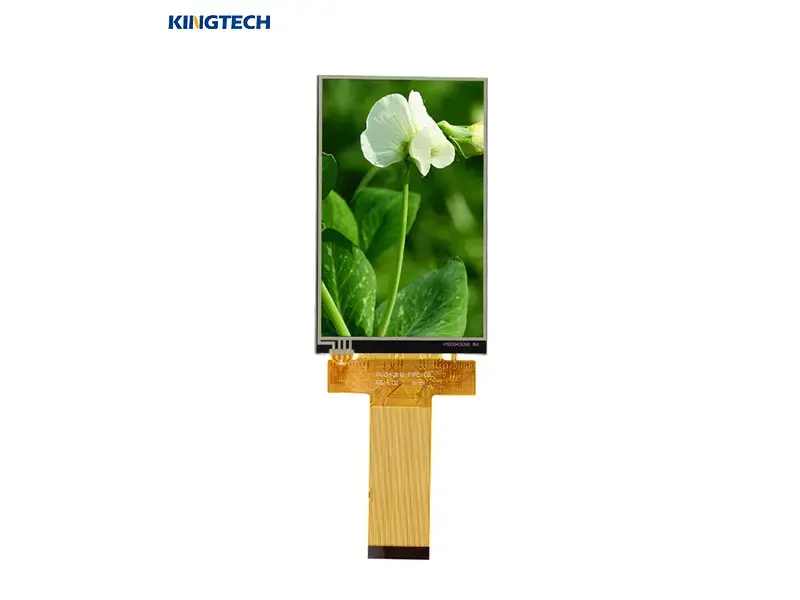

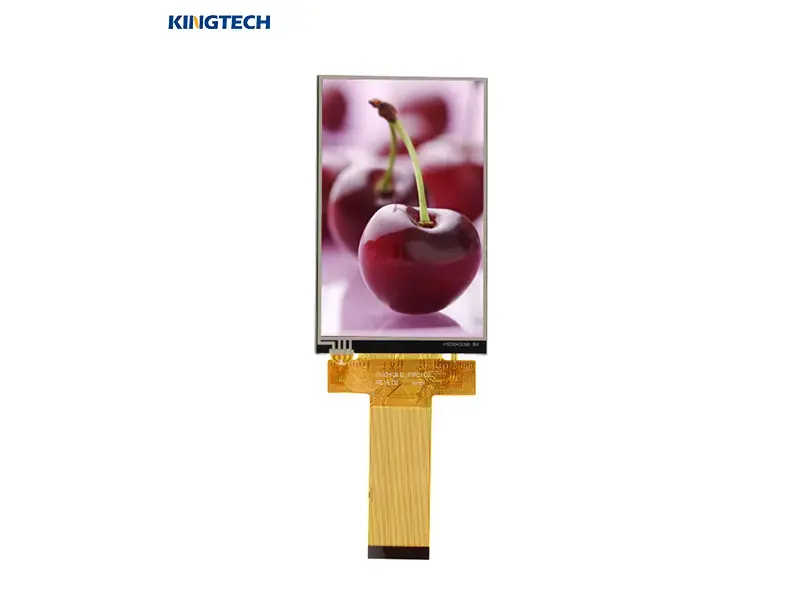

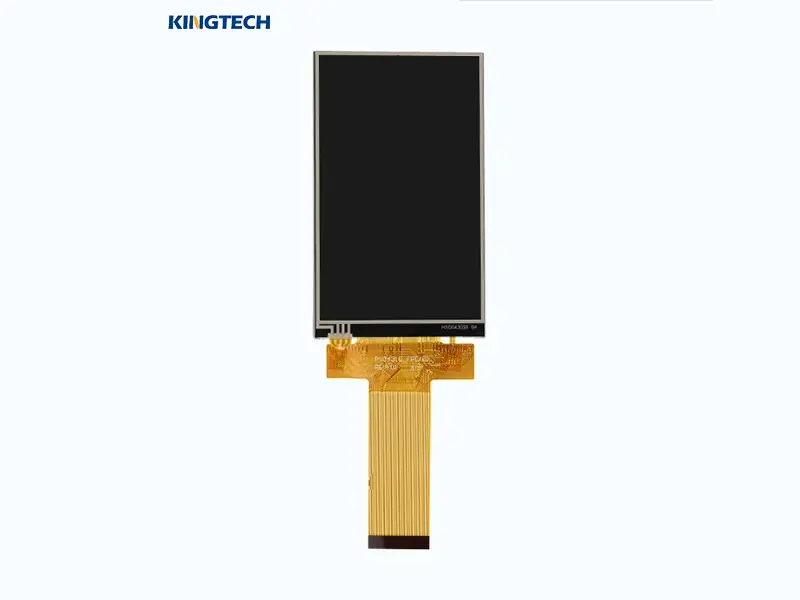

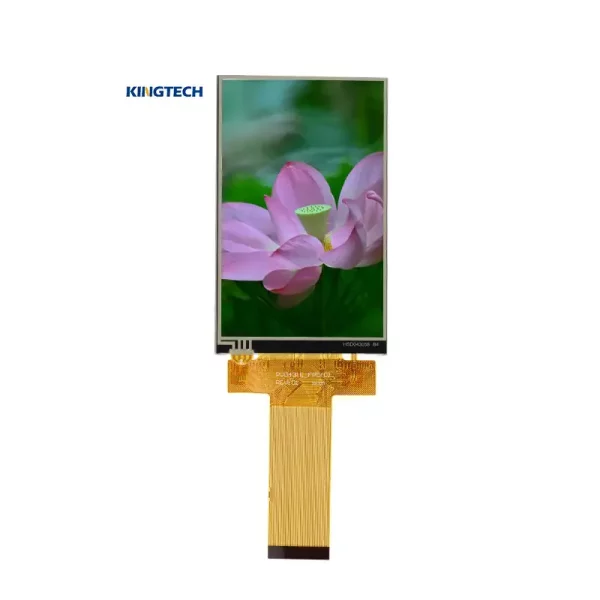

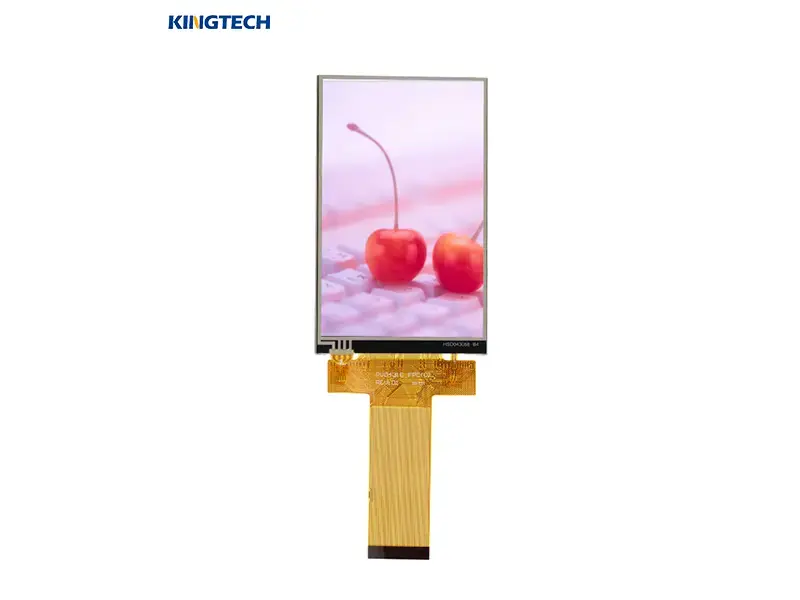

4.3 inch 480×800 IPS display with capacitive touch screen front view

4.3 inch tft lcd display4.3 inch tft lcd display4.3 inch tft lcd display

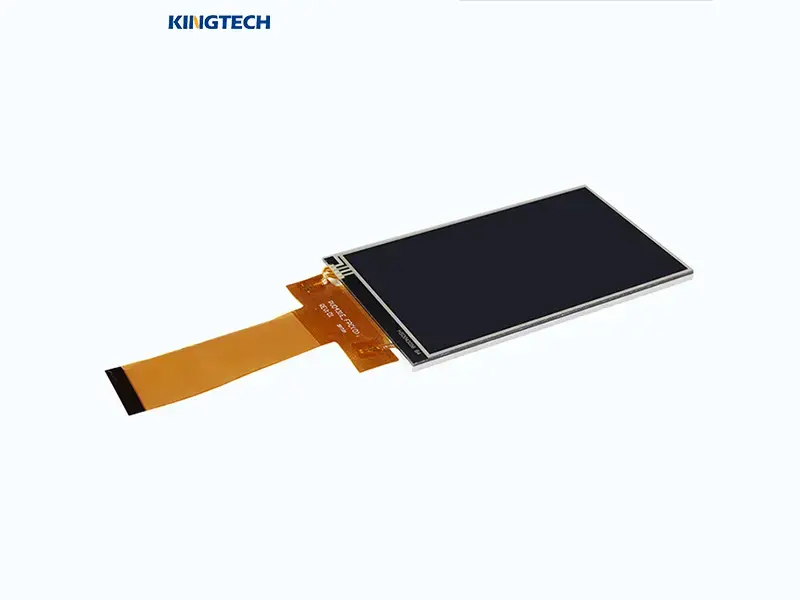

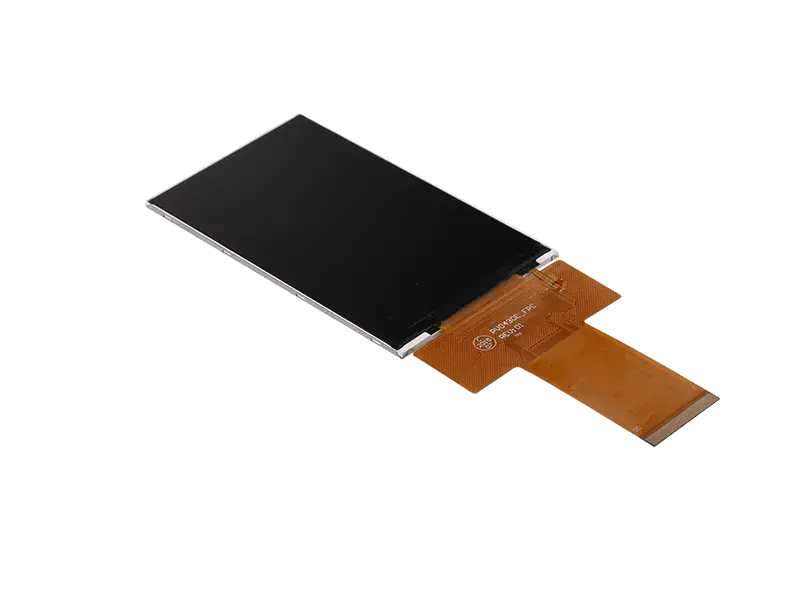

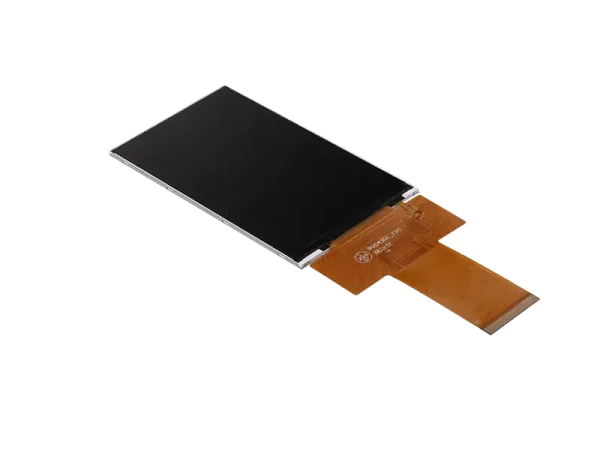

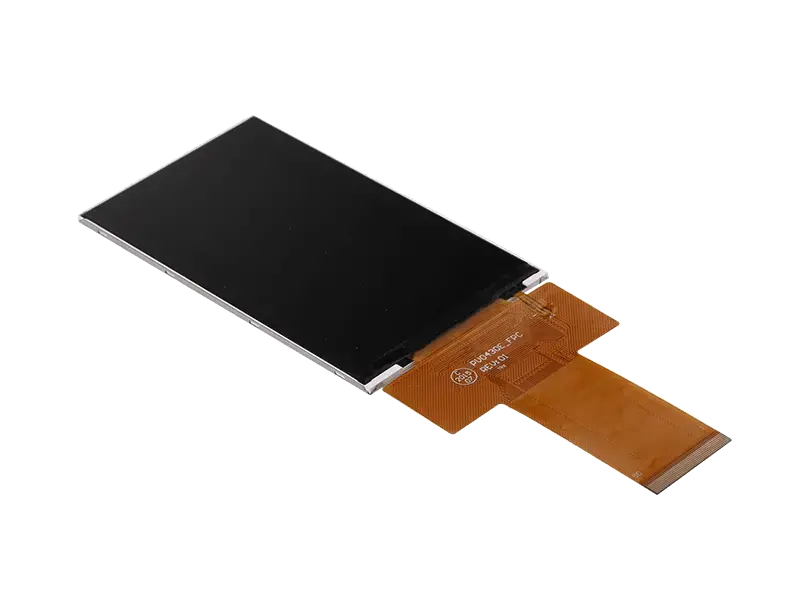

4.3 inch 480×800 IPS display with capacitive touch screen back view4.3 inch tft lcd display

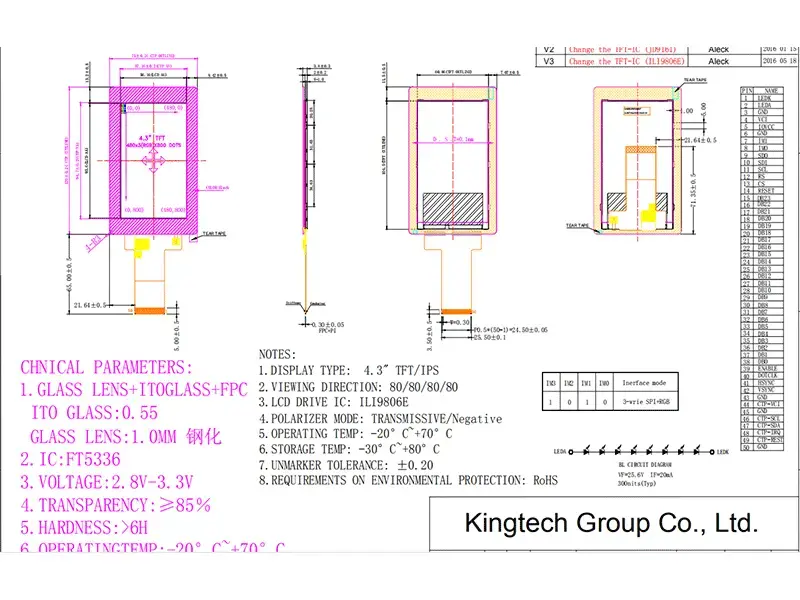

4.3 inch 480×800 IPS display with capacitive touch screen Machine Drawing4.3-PV04303LZR50E-C
