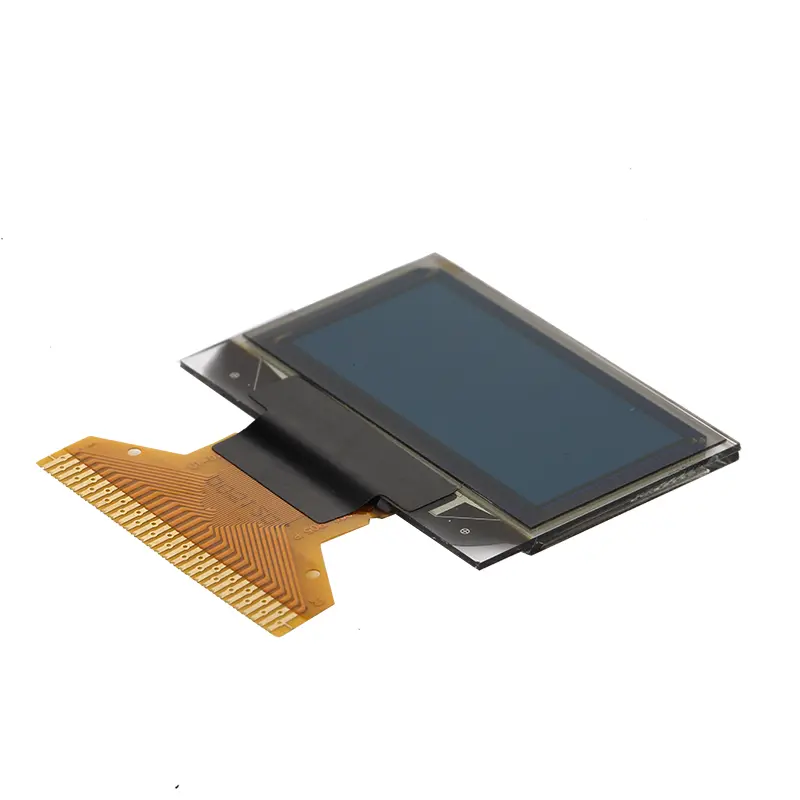

SSD1306 ips 128×64 0.96 oled module

Item0.96 inch small PMOLED display
Model NoPV09612864HLBEG01
Resolution128×64
Outline Dimension26.70*19.26*1.45
Active Area(mm)21.744*10.864
Brightness120nits
Viewing angleAll
Interface8-bit 68XX/80XX Parallel, 3-/4-wire SPI
Driving ICSSD1306
Operating Temperature-40 to +70℃
Storage Temperature-40 to +80℃
Touch screenCan customer capacitive touch

For product pricing,customization,or other inquiries:

Share to:

0.96 inch 128×64 resolution IPS RGB+SPI+I2C PMOLED display

1. PV09612864HLBEG01 mainly application instruments and equipment,  Medical devices,
2. It with full viewing angle , wide work temperature , SSD1306 driver IC 8-bit 68XX/80XX Parallel, 3-/4-wire SPI, I2C interface .
3. And it can custom touch panel as customer ‘s requirement .
4. This model without backlight , super thin of thickness, super power saving of power.

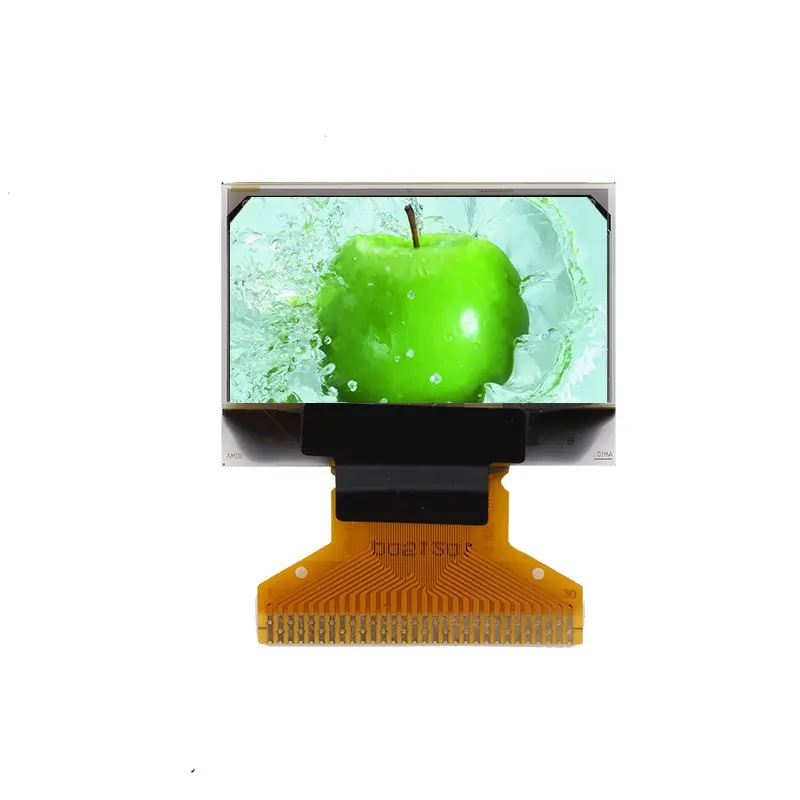

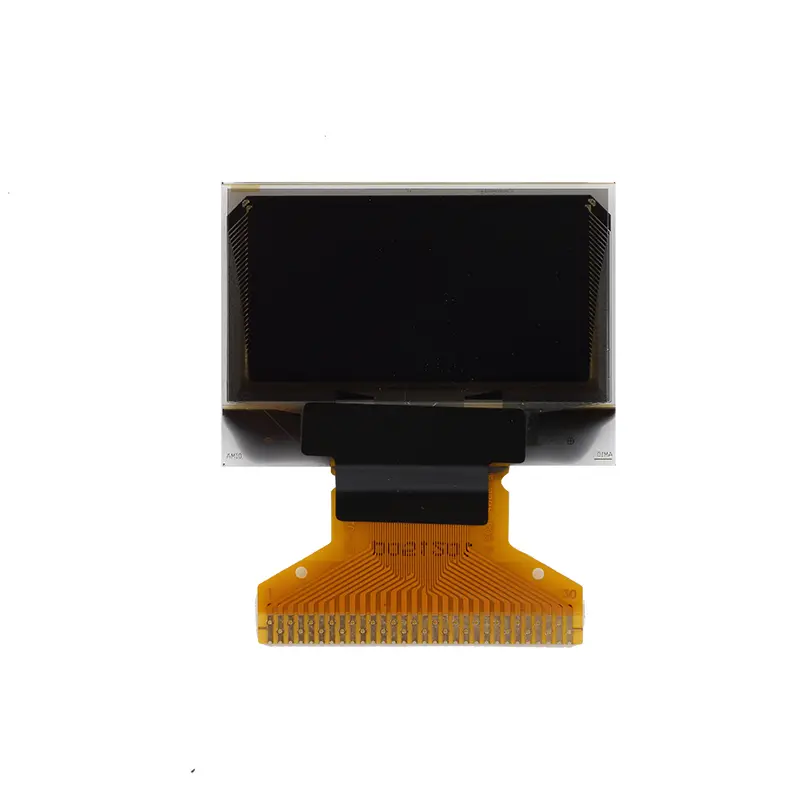

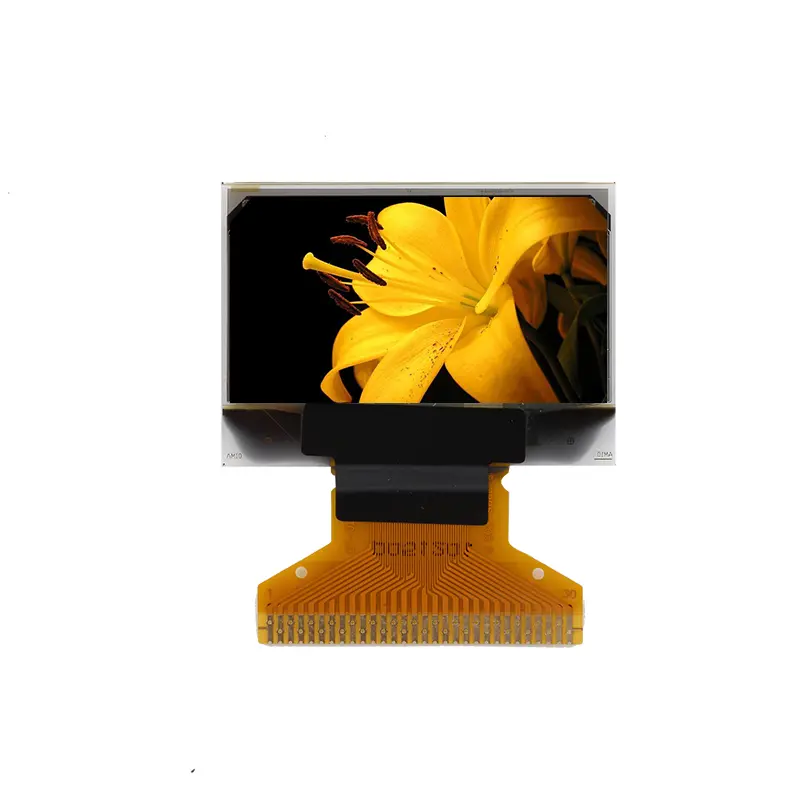

0.96 inch IPS Tiny PMOLED display front view

0.96 oled module0.96 oled module

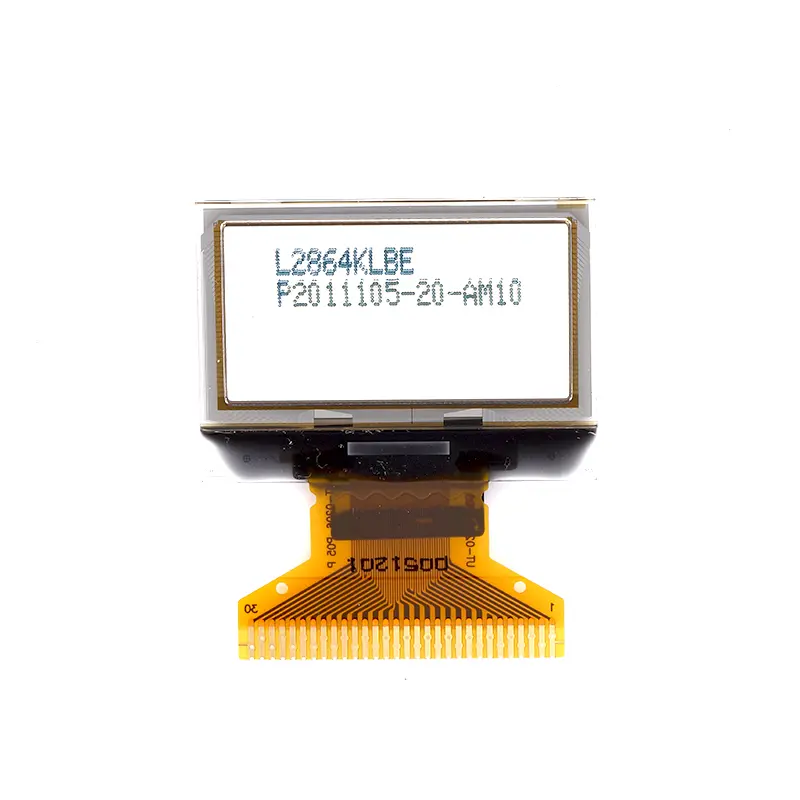

0.96 inch IPS Tiny PMOLED display back view

0.96 oled module

0.96 inch wide work temp PMOLED display Machine Drawing
