SSD2119 320×240 50 pin 3.5 inch tft lcd display

Item3.5 inch 320×240 TFT LCD display
Model NoPV03501LZR50C
Resolution320×240
Outline Dimension76.90(W)×63.90(H)×3.26(T)
Active Area(mm)70.08(W)× 52.56(H)
Interface4-lines_8bit / 3-lines_9bit SPI 8-/ 9-/16-/18-bit 6800/8080-series system interface 6-/9-/16-/18-bit RGB interface
Viewing Angle12 O’clock
Driving ICSSD2119
Display ModeTFT/TRANSMISSIVE
Operating Temperature-20 to +70℃
Storage Temperature-30 to +80℃
Brightness400nits
Touch screenResistive and capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

3.5 inch 320×240 QVGA resolution RGB/SPI /MCU interface LCD display

1. PV03501LZR50C  mainly application for handheld device
2. It with 320×240 resolution , 4-lines_8bit / 3-lines_9bit SPI 8-/ 9-/16-/18-bit 6800/8080-series system interface ,6-/9-/16-/18-bit RGB interface , SSD2119 Driver IC, 400nits brightness.
3. And it can custom capacitive and  resistive touch panel as customer ‘s requirement;
4. It is A grade product , the good quality well use for Industrial ,medical application .

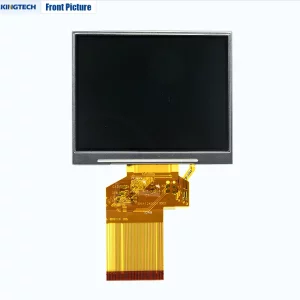

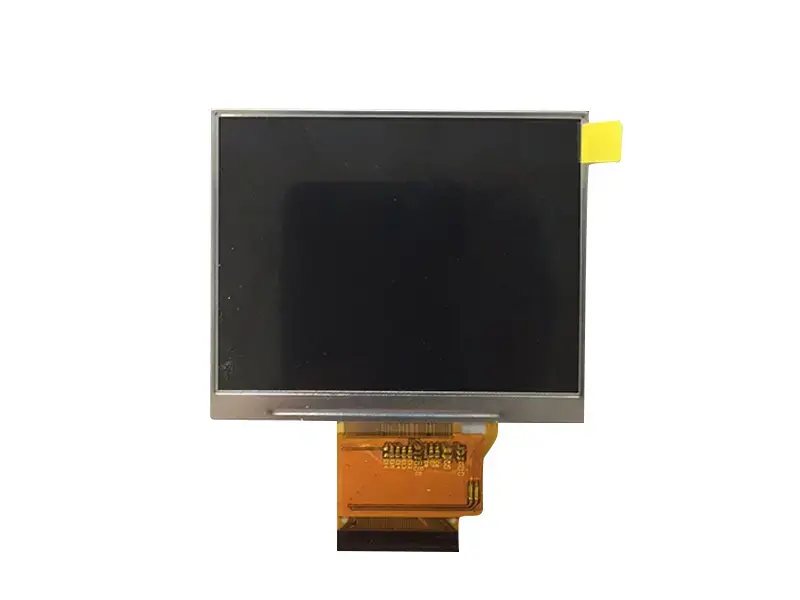

3.5 inch QVGA TFT LCD display front view

3.5 inch tft lcd display

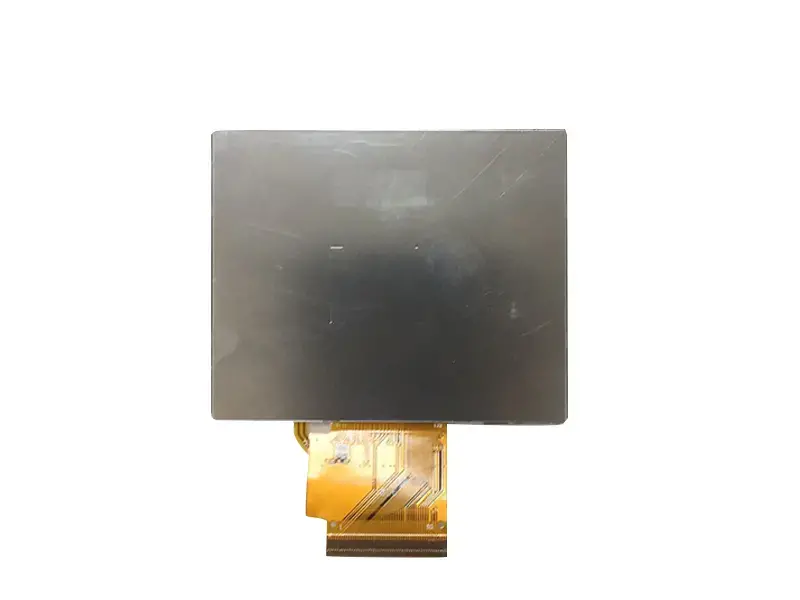

3.5 inch QVGA TFT LCD display back view

3.5 inch tft lcd display

New Tab content 3

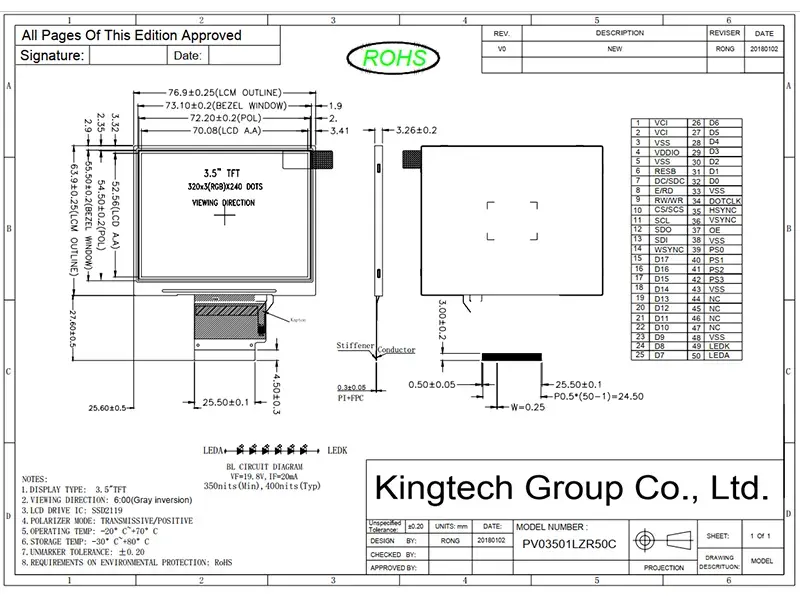

PV03501LZR50C
