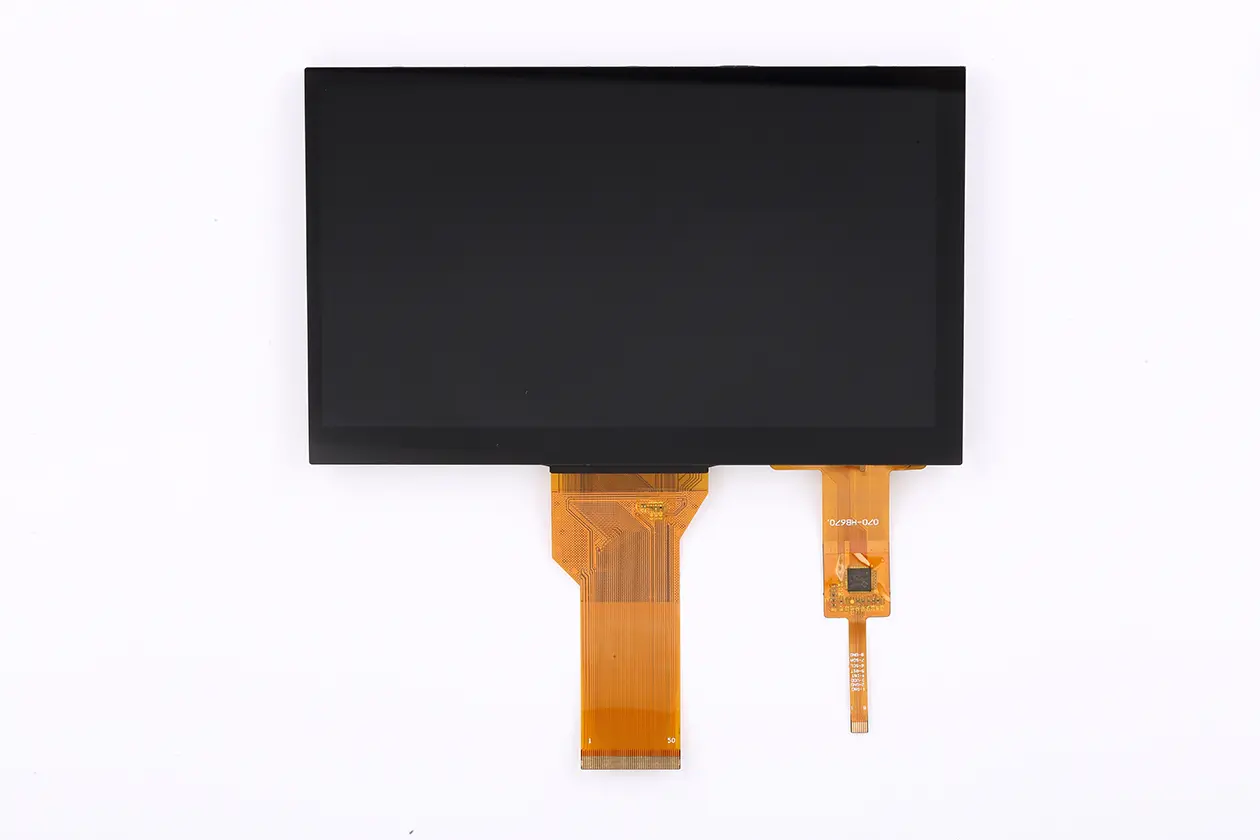

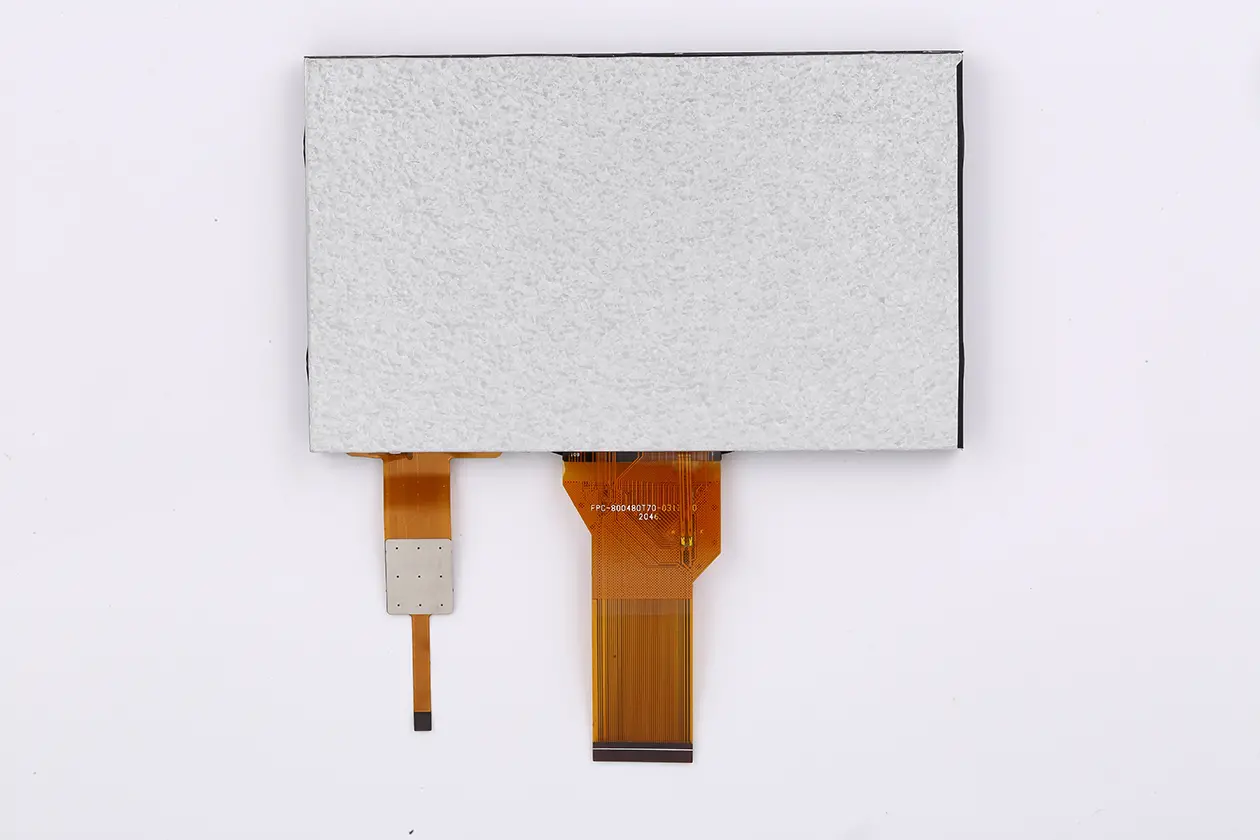

Touch screen 7 inch 800×480 RGB interface 400nits TFT LCD with capacitive panel

Item 7inch 800×480 50pin capacitive touch screen
Model No PV0705YX50E-CO
Resolution 800×480
Outline Dimension 165*100.1*5.7 mm
Active Area(mm) 154.08*85.92 mm
Interface RGB Interface
Viewing Angle All
LED life 30000h
Display Mode TN / Transmissive / Normally white
Operating Temperature -20℃~70℃
Storage Temperature -30℃ to +80℃
Brightness 500nits
Touch screen Can custom capacitive touchscreen
Board Convert Board

For product pricing,customization,or other inquiries:

Share to:

7 inch 800×480 resolution RGB interface 500nits TFT LCD display with capacitive touch

1. PV0705YX50E-CT mainly application for Industrial ,medical equipment .
2. It with 800×480 resolution , 500nits brightness, RGB interface, existing capacitive touch panel .
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ,medical application.
