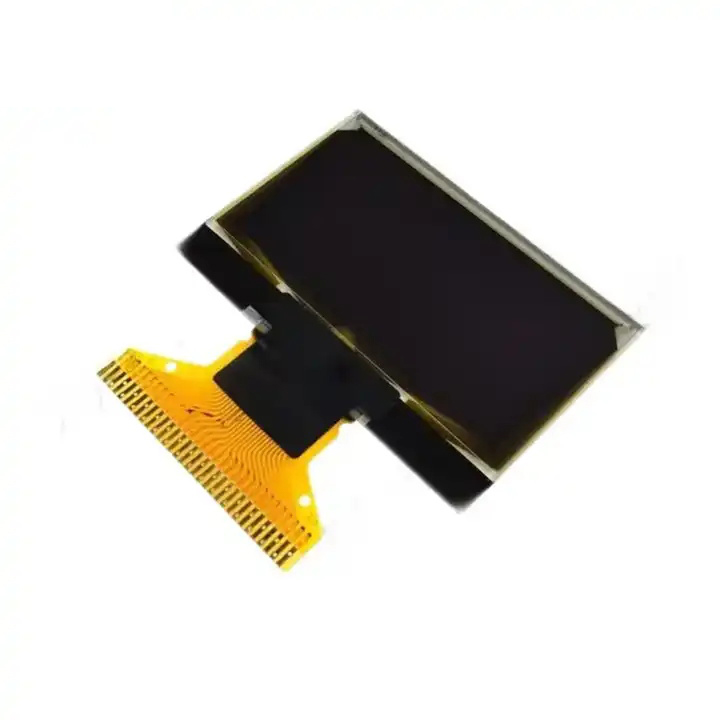

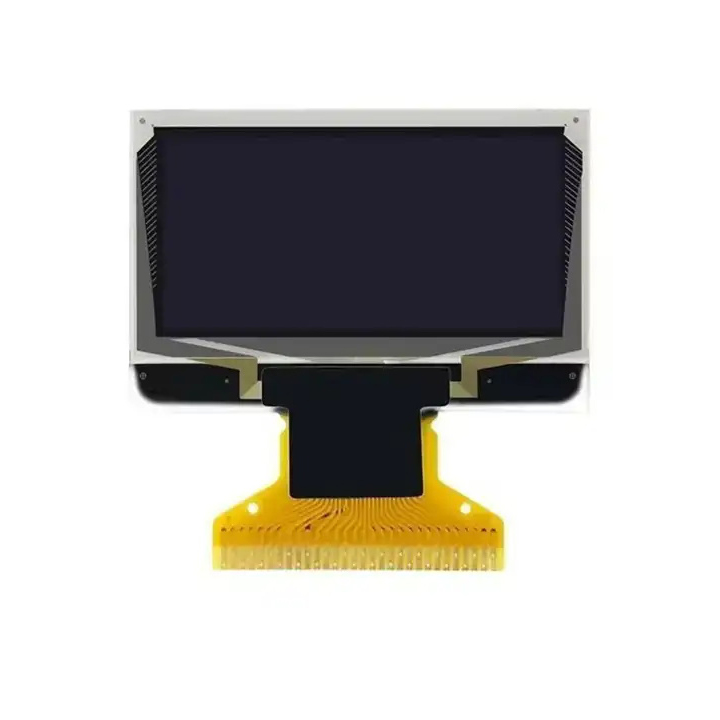

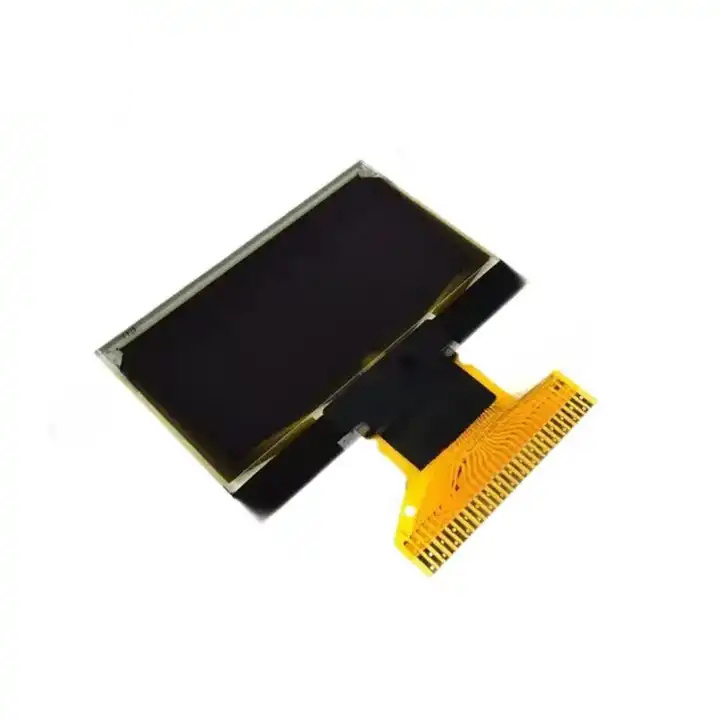

1.3 Inch 128x64 PMOLED Display Module | High Contrast OLED Screen

Product Specifications:

Model No.: PV01312864KSWLG01

Display Type: PMOLED

Resolution: 128×64 pixels

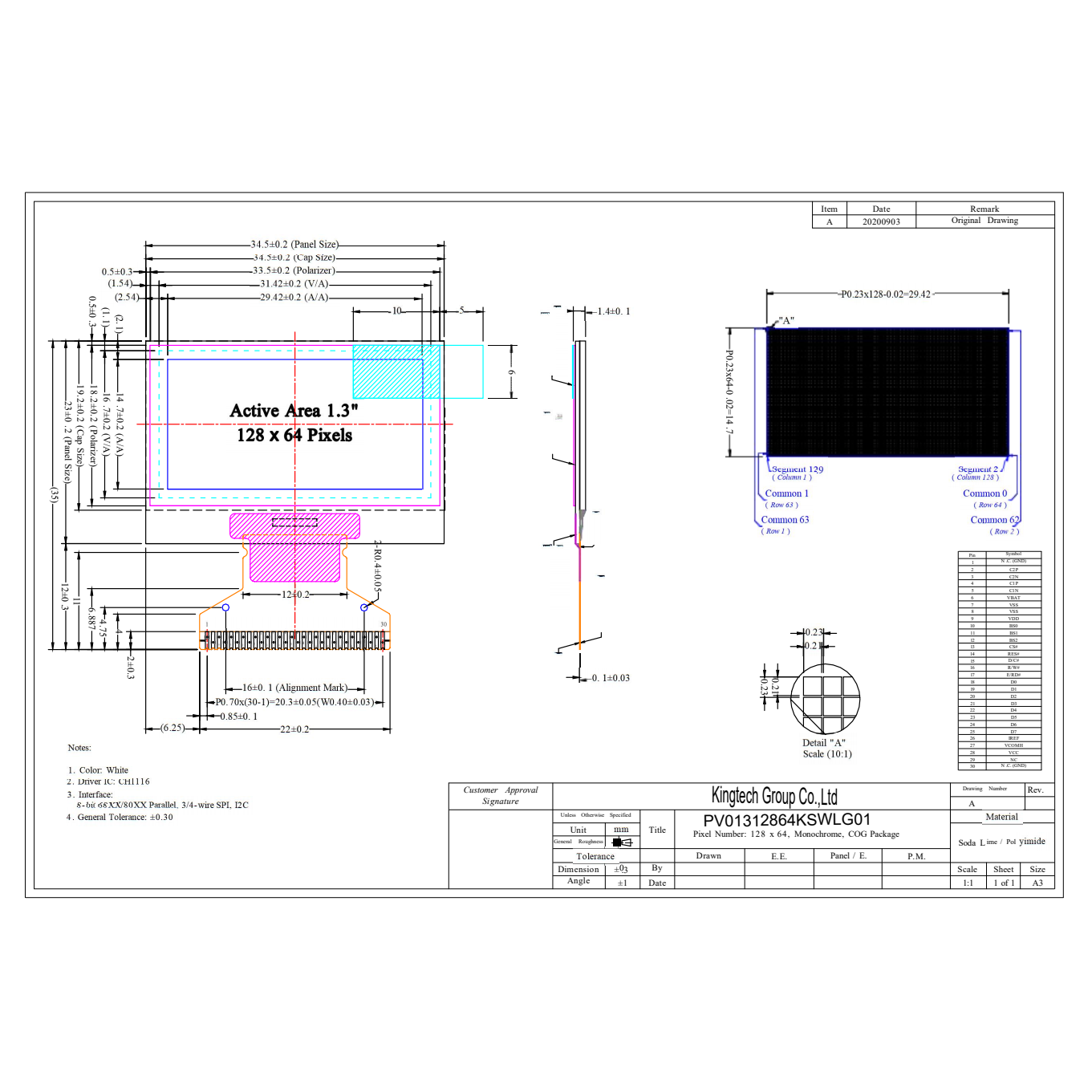

Outline Dimension: 34.5 x 23 x 1.4 mm

Active Area: 29.42 x 14.7 mm

Viewing Angle: IPS Technology

Brightness: 110 nits

Interface: 8bit 68XX/80XX Parallel, 3/4-wire SPI, I2C

Backlight: None (self-emissive OLED technology)

Driving IC: CH1116

PIN Number: 30 pins

Operating Temperature: -40℃ to 85℃

Storage Temperature: -40℃ to 85℃

Touch Screen: Optional resistive or capacitive touch customization

Key Features:

High Contrast and Clarity: PMOLED technology delivers sharp, vivid images with excellent contrast.

Ultra-Low Power Consumption: Perfect for battery-powered and portable applications.

Flexible Connectivity: Multiple interface support including SPI, I2C, and parallel modes.

Wide Temperature Tolerance: Reliable operation in extreme industrial and outdoor conditions.

Customizable Touch Options: Tailor-made resistive or capacitive touch solutions available.

Compact and Lightweight: Slim and space-efficient design for integration into small devices.

Product Overview:

The 1.3 inch 128×64 PMOLED Display (Model PV01312864KSWLG01) offers a lightweight, low-power, and highly reliable solution for industrial, medical, handheld, and wearable device applications. With vibrant display quality, flexible interface options, and wide temperature resistance, it ensures superior performance even in challenging environments.

Application Scenarios:

Wearable Devices: Smartwatches, fitness monitors, and medical wearables.
Medical Equipment: Portable diagnostic and patient monitoring devices.
Industrial Instruments: Handheld terminals, controllers, and sensors.
Handheld Devices: Mobile communication tools, data collectors, and compact electronics.

Advantages:

Extreme Temperature Performance: Reliable from -40℃ to 85℃ for harsh environments.
Simple System Integration: Flexible interfaces simplify system design and reduce development time.
Customization Services: Engineering and customization support for touch panels and system compatibility.
Outstanding Visual Quality: Crisp text and graphics for professional and consumer-grade products.

Procurement Information:

MOQ: Negotiable depending on project size and requirements
Lead Time: Short production cycle with fast delivery available
Support: Dedicated technical assistance and flexible customization for B2B projects

Elevate Your Product Innovation with Kingtech’s 1.3 Inch PMOLED Display Solution!
