Item | 3.5 inch RGB interface LCD display |
Model No | PV03501TD40B |
Resolution | 480×272 |
Outline Dimension | 86.80*56.50*2.75 |
Active Area(mm) | 77.79*43.52 |
Interface | 24 bit RGB Interface |
Viewing Angle | 6 O’clock |
Driver IC | OTA5180A |
Display Mode | Transmissive / Normally Black |
Operating Temperature | -20℃ to +70℃ |
Storage Temperature | -30℃ to +80℃ |
Brightness | 350nits |
3.5 inch 480X272 resolution RGB interface LCD display
1. PV03501TD40B mainly application for handheld device
2. It with 480×272 resolution , 24 bit RGB interface , OTA5180A Driver IC, 350nits brightness, TN/6 O’clock view angle.
3. And it can custom capacitive and resistive touch panel as customer ‘s requirement;
4. It is A grade product , the good quality well use for Industrial ,medical application .

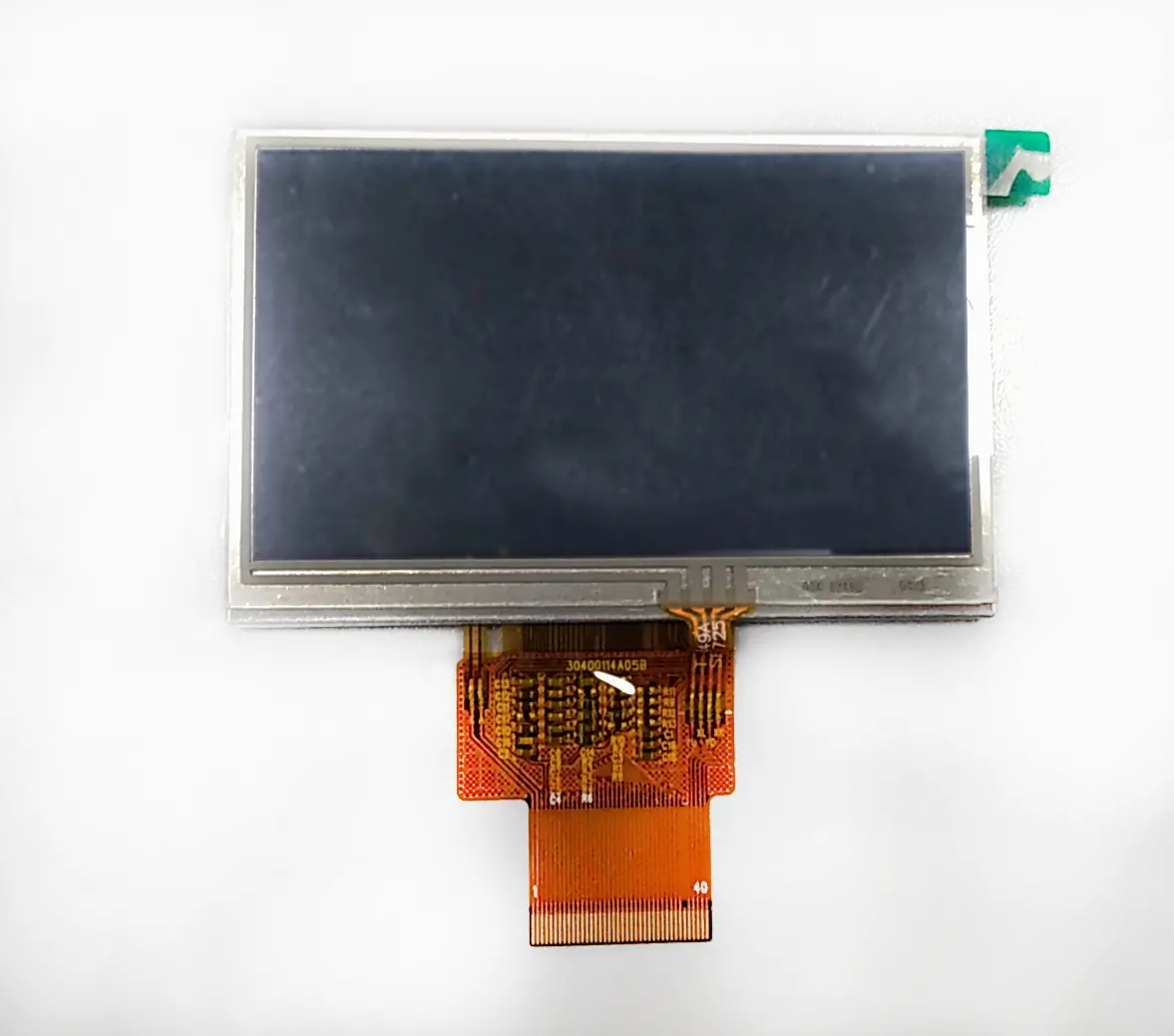

3.5” TFT LCD display front view

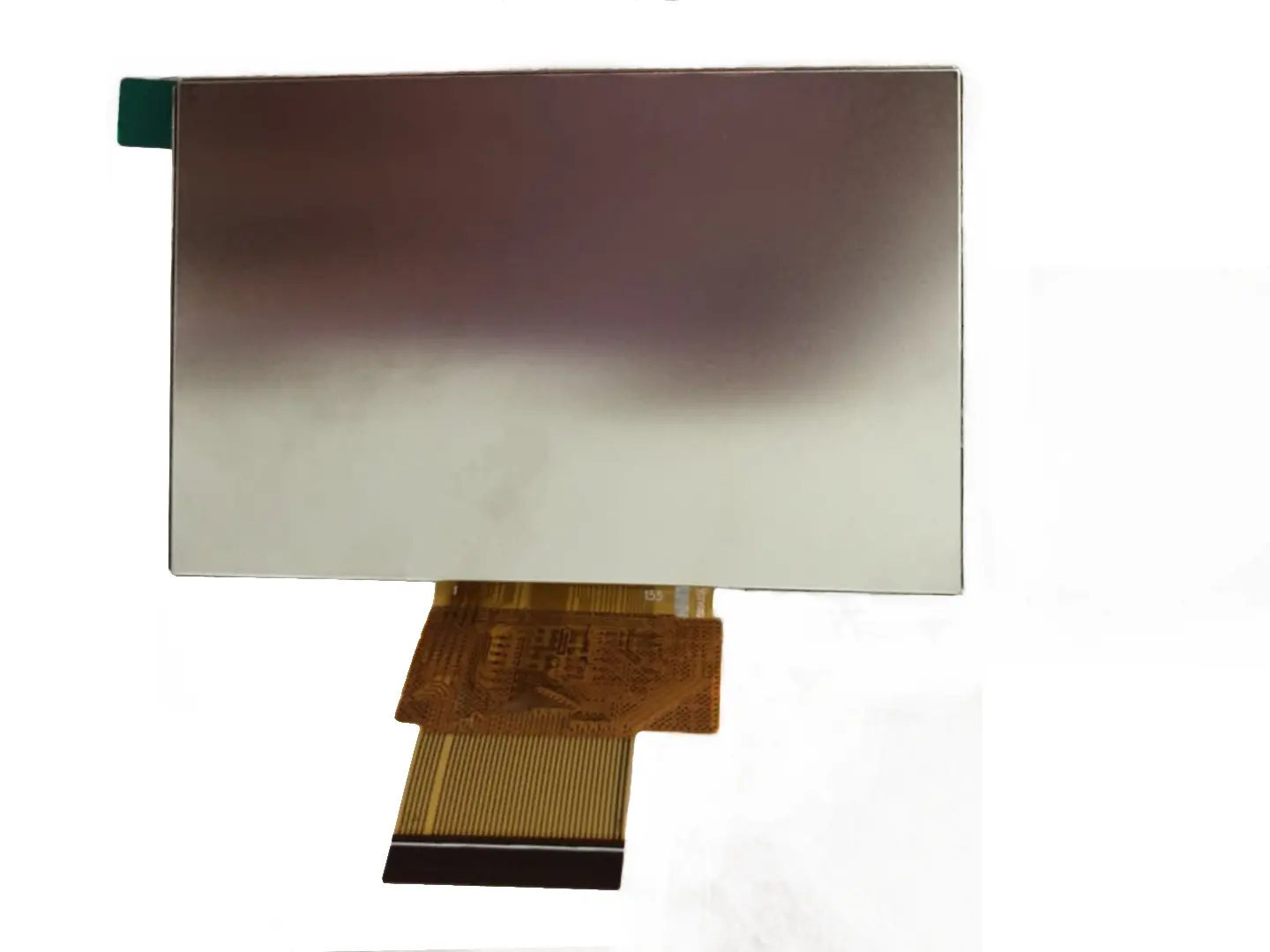

3.5” TFT LCD display back view
