Item | 3.2 inch 240×320 LCD display screen |
Model No | PV032004YP45E |
Resolution | 240×320 |
Outline Dimension | 48.40(W)× 81.50(H)×2.77(T) |
Active Area(mm) | 41.76(W)× 69.60(H) |
Interface | SPI+18-BIT RGB/MCU interface |
Viewing Angle | 6 o’clock |
Drive IC | ST7793 |
Display Mode | 262K color TFT / Transmissive / Normally white |
Operating Temperature | -20℃ to +70℃ |
Storage Temperature | -30℃ to +80℃ |
Brightness | 400nits |
Touch screen | Can custom resistive touch and capacitive touch |
3.2 inch 240×320 resolution RGB/MCU interface 400nits brightness lcd display
1.PV032004YP45E mainly application for Industrial ,medical equipment .
2.It with 240×320 resolution , 400nit brightness , SPI+18-BIT RGB/MCU interface , TN/ 6 o’clock view angle, ST7793 driver IC.
3.It also can custom touch panel as customer ‘s requirement .
4.It is A grade product , the good quality well use for Industrial ,medical application .

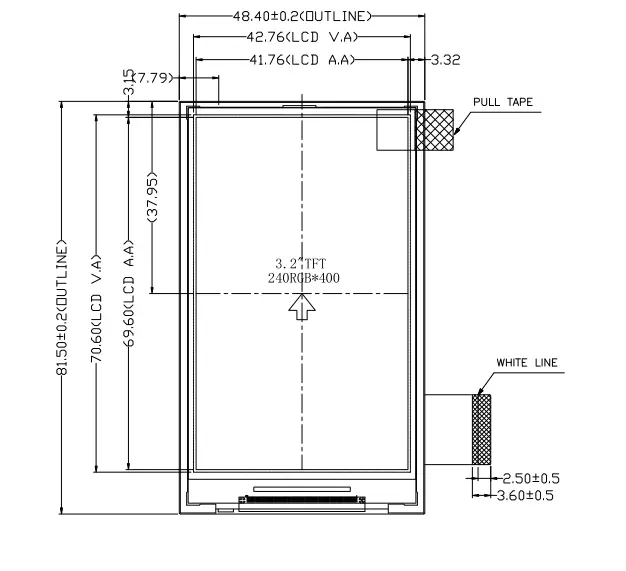

3.2 inch small screen front view

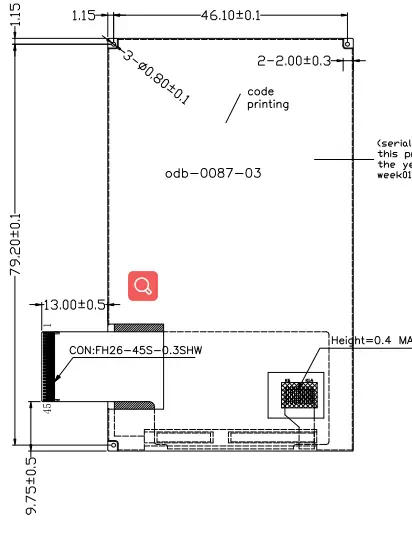

3.2 inch TFT LCD display back view
